Features

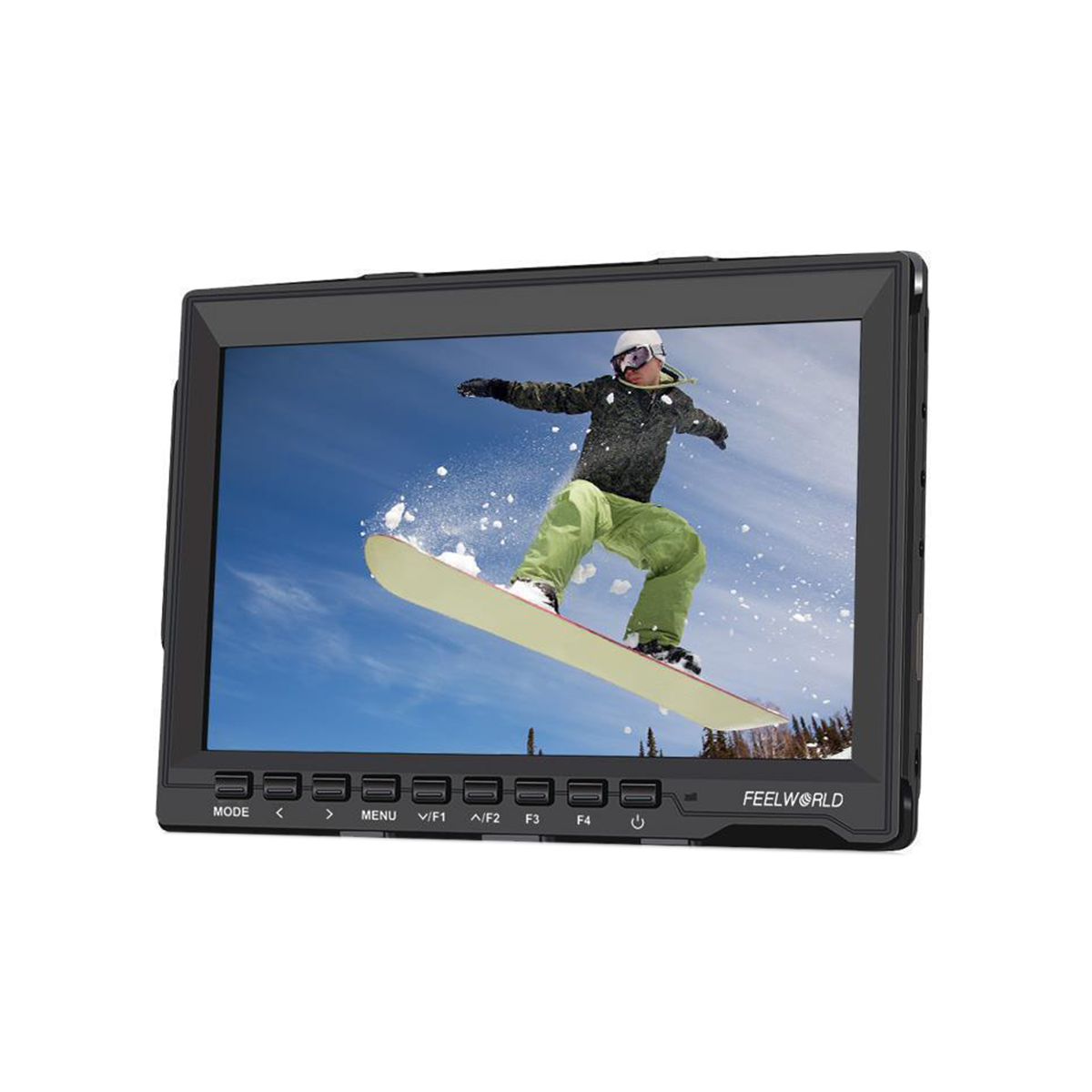

- Wide view angle IPS Screen, High resolution 1280×800, bright, colorful display
- The enhanced 400cd/m² backlight and 800:1 color contrast ratio
- Slim design 17mm, Portable Light compatible for Steadycam, DSLR Rig, Camcorder Kit, HandheldStabilizer, Video Camera Crane
- Inputs: HDMI, AV, Wire remote OSD controller; Outputs: Built-in Speaker, 3.5mm Audio
- Histogram
- Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Zebra Exposure
- Nine Grid
- Embedded Audio Meter
- Scan Mode
- Zoom (Auto,4x,9x,16x)
- Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
- Pixel to Pixel
- Center Marker
- Safe Area (80%,85%,90%,93%,96%,2.35:1)
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Marker Color (Red,Green,Blue,White,Black）
- Check Field (Red/Green/Blue/Mono)
- Image Flip (H, V, H/V)
- Image Freeze
- Zoom All (0~100 adjustable)
- U/D & L/R Zoom (0~100 adjustable)
- Color Temperature Adjustment
Specification
- Screen Size: 7″ IPS
- Resolution: 1280×800 pixels
- Aspect Ratio: 16:10
- Dot pitch: 0.11775(H) × 0.11775(V) mm
- Brightness: 400cd/m²
- Contrast Ratio: 800:1
- Backlight: LED
- Viewing Angle: 89°/89°(L/R) 89°/89°(U/D)
- HDMI Input: Yes
- AV Input: Yes
- OSD Controller: Wire remote OSD controller
- Audio Out: Stereo Headphone, Speaker
- HDMI Support Format: 480i/576i/480p/576p/1080i (60/59.94/50)/720p (60/59.94/50/30/29/25/24/23.98)/1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
/4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) - Input Voltage: DC6.5～35V
- Power Consumption: ≤5W
- Power Connector: DC

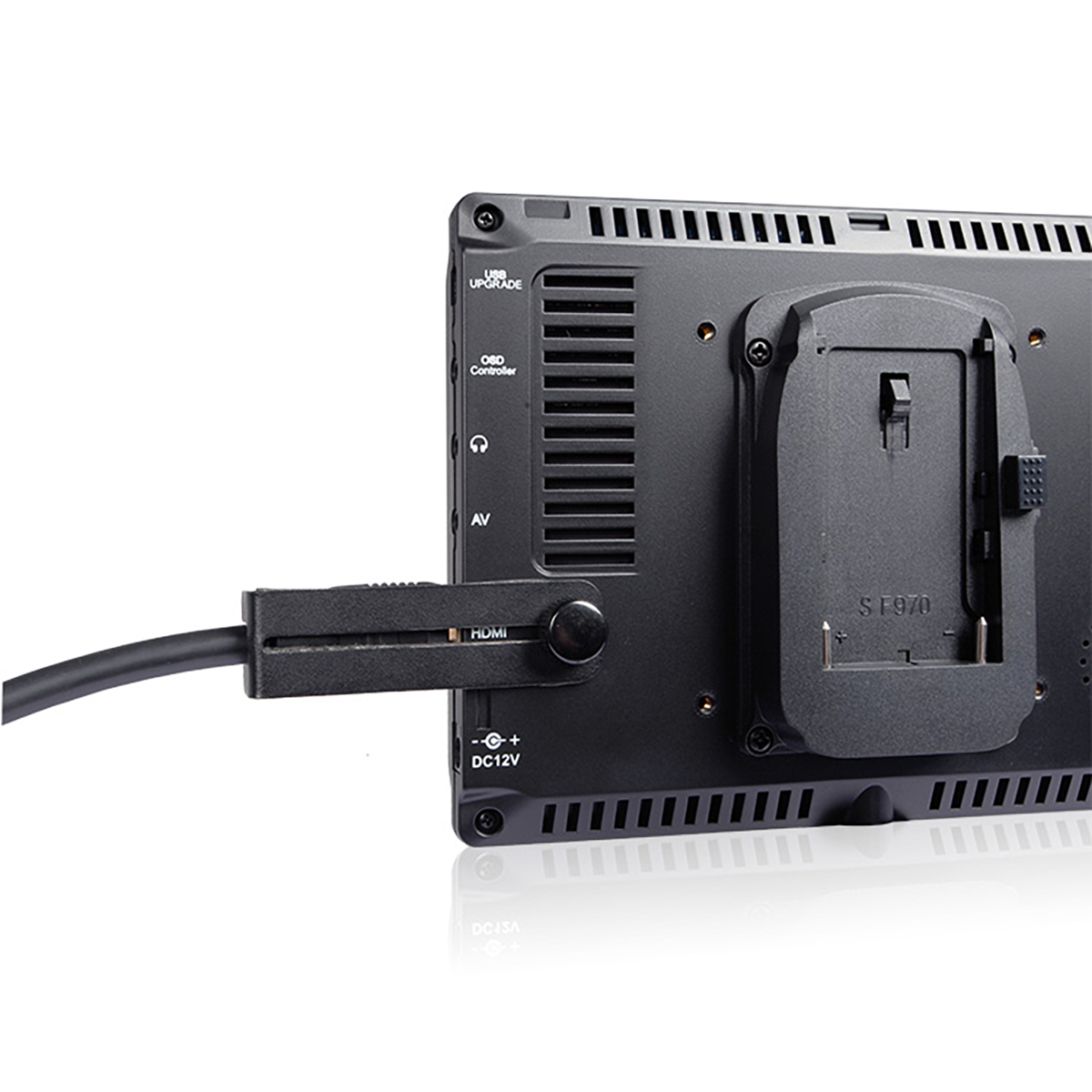

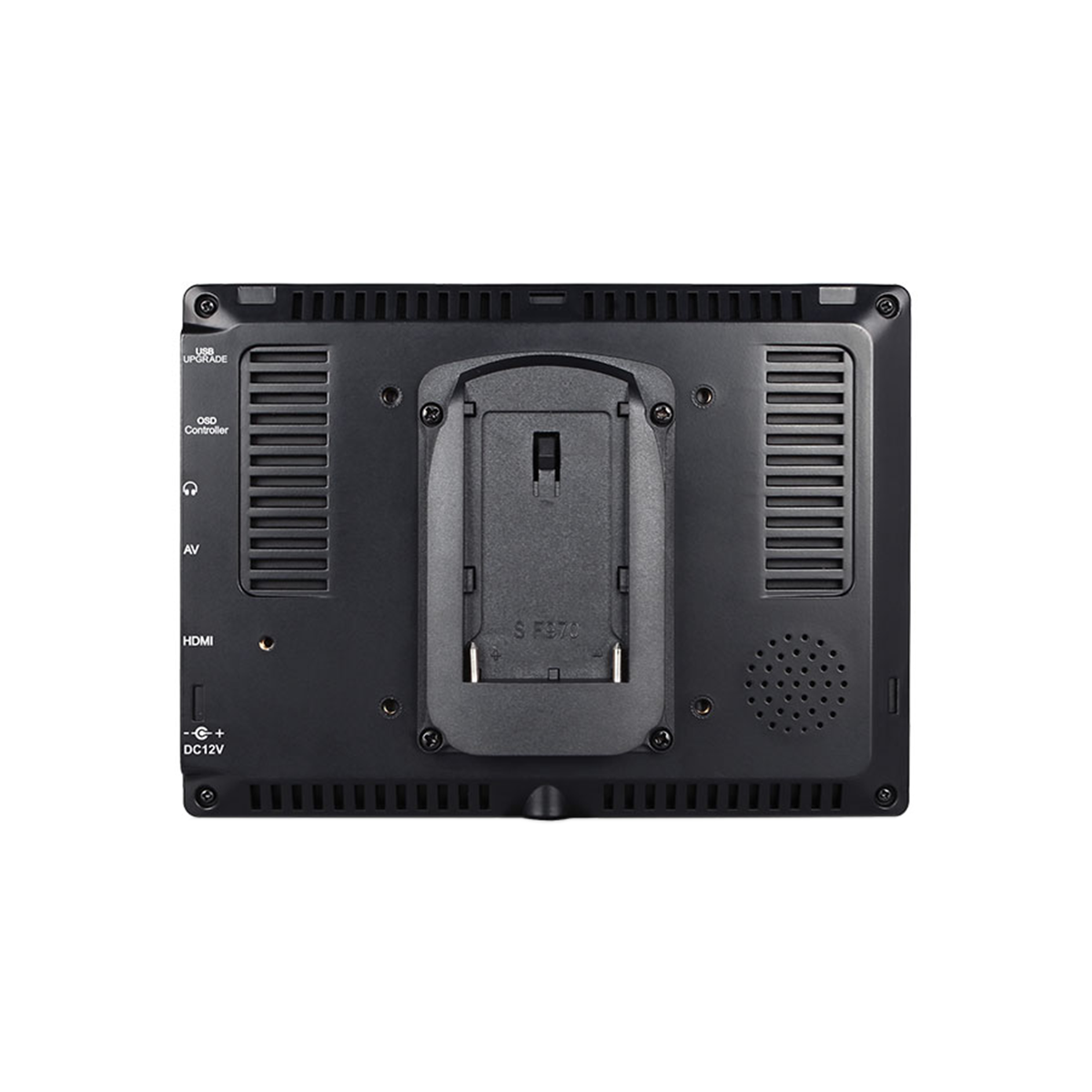

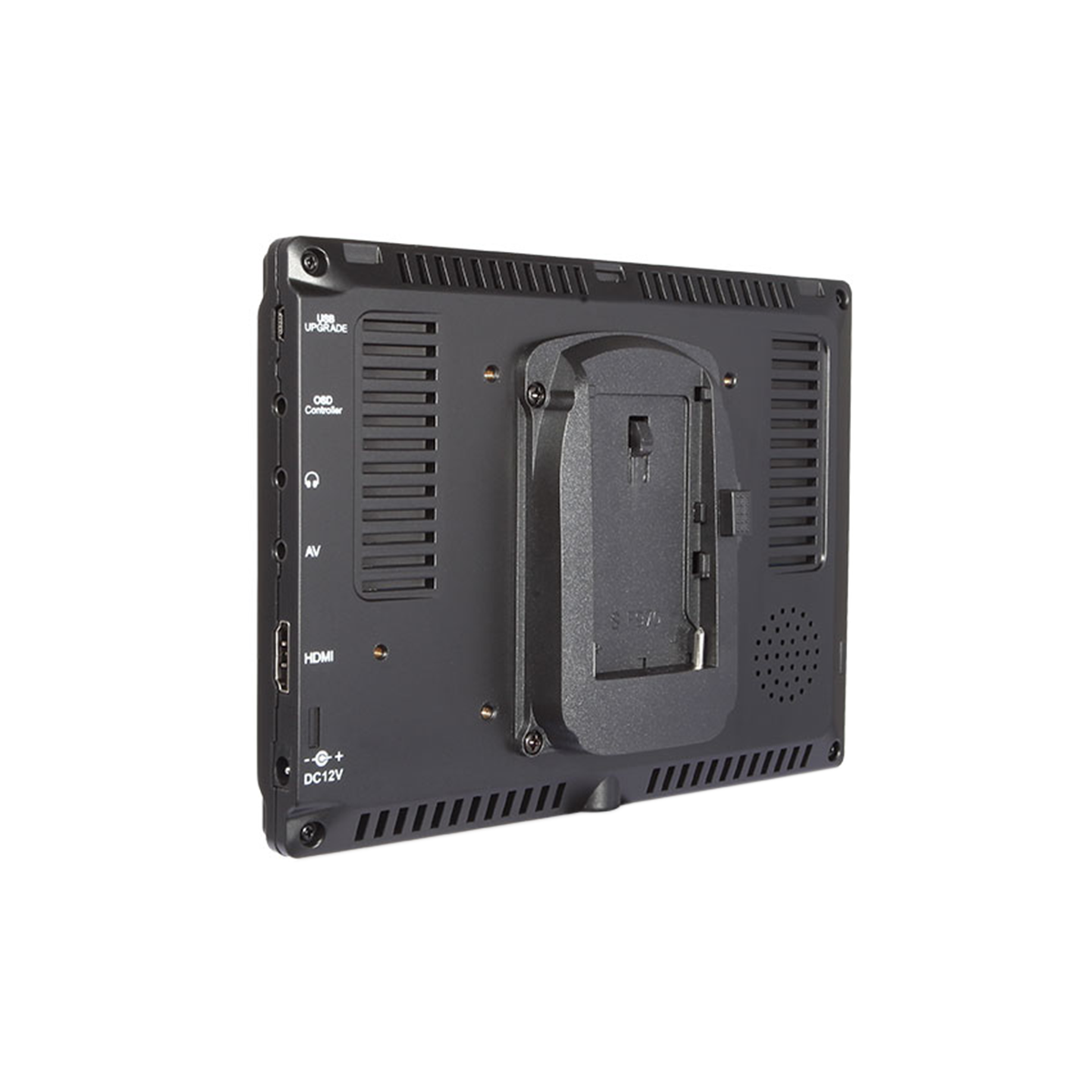

- Battery Plate: F970 (Standard); D28S, LP-E6 (Optional)
- Working Temperature: -20°C~50°C
- Storage Temperature: -30°C~60°C
- Install Way: 1/4″-20 Thread Socket (1 bottom side)
- Unit Size: 176L×130H×17D (mm)
- Unit Weight: 300g
- Color Box Size: 220L*192W*62H(mm)
- Outer Carton Qty: 10
- Outer Carton Size: 382*236*444 (mm)
- Gross Weight: 9.2kgs
Advanced Features
- Brightness Histogram
- Embedded Audio
- Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Zebra Exposure (1-100IRE adjustable)
- Check Field (Red, Green, Blue, Mono)
- Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
- Image Flip (H, V, H/V)
- Image Freeze
- Center Marker
- Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Color Temperature Adjustment
- Nine Grid (Zoom one of the images to realize the full screen)
- Zoom (4X, 9X, 16X)
- Aspect Ratio
- Pixel to Pixel
- Zoom All
- U/D Zoom
- L/R Zoom
Package Include
- 1× Mini HDMI Cable

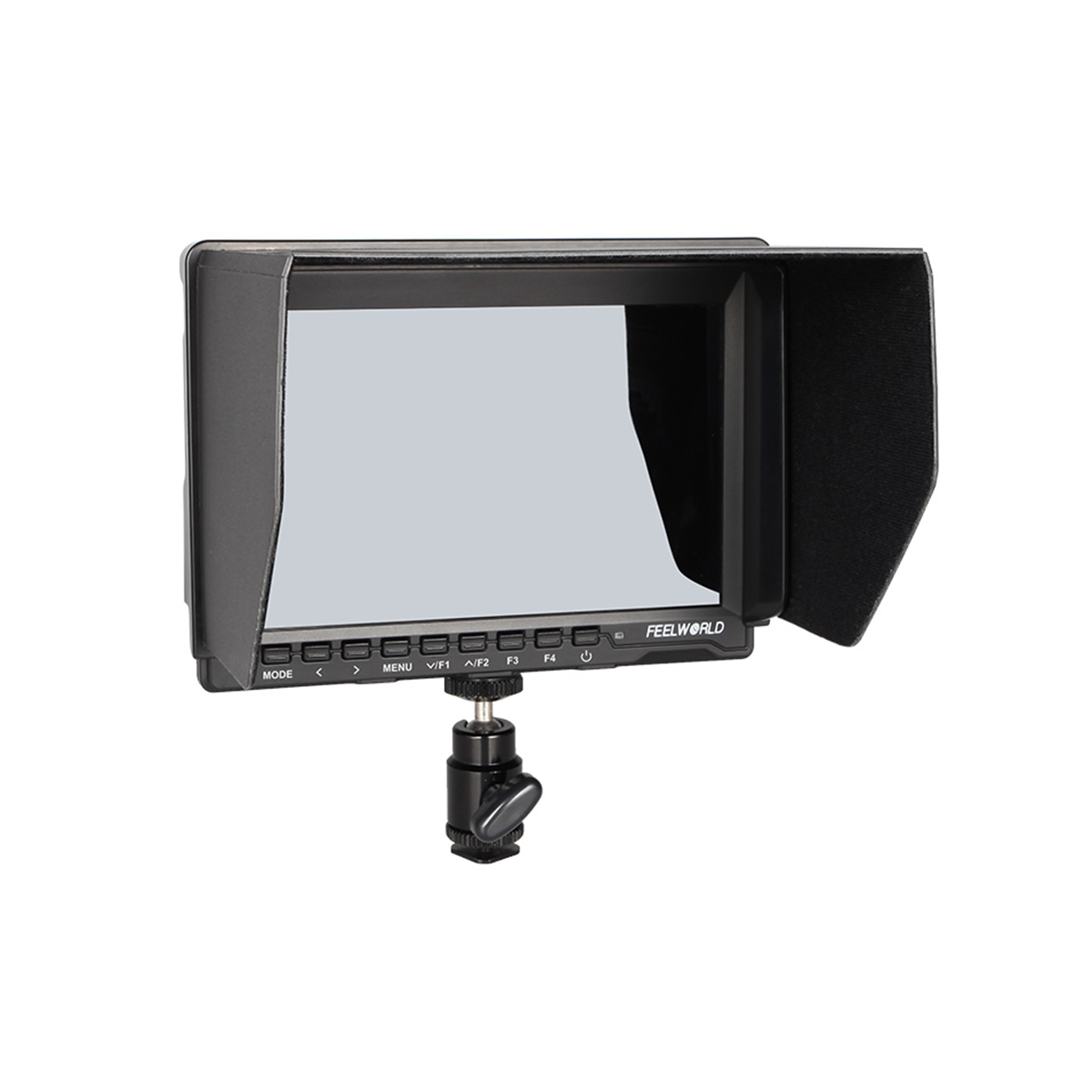

- 1× Sunshade
- 1× Hot Shoe Mount
- 1× F970 Battery Plate
- 1× HDMI Plug Lock
- 1× Operation Manual
