Features
- This FPV monitor is a large sized 9.0″ screen with a super bright LCD. FPV diversity monitor 5.8Ghz scree.
- Our screen offers a wide view angle of 140 degrees horizontally and 120 degrees vertically, providing a clear view from various positions without color distortion.
- Equipped with a dual-frequency receiver operating at 5.8 GHz and 1.2 GHz, our device supports NTSC/PAL video standards. The impressive sensitivity of -92 dBm ensures a stable and clear signal reception.
- Enjoy seamless video playback with a response time of less than 20 milliseconds, minimizing lag and ensuring smooth visuals for fast-moving scenes.
Specification
- Screen Size: 9”
- Resolution: 800 x 480 pixels
- Aspect Ratio: 16:9
- Brightness: 500cd/m2
- Contrast: 500:1
- View Angle: 140/120 degree(Horizontal/Vertical)
- Receiver Frequency : 5.8Ghz/1.2Ghz
- Video Standard: NSTC/PAL
- Response Time: ＜20ms
- Working Voltage: 3.7-11.1V
- Working Current: 650mA@ 7.4V(max)
- Built-in Battery: 1600MAH 7.4V
- Antenna Interface: RPSMA ANT
- Sensitivity: -92dBm
- Screen Weight: 570g
- Size(not include antenna): 235(L)*134(W)*26(H)mm
- With Out DVR & AV Out
Frequency Table

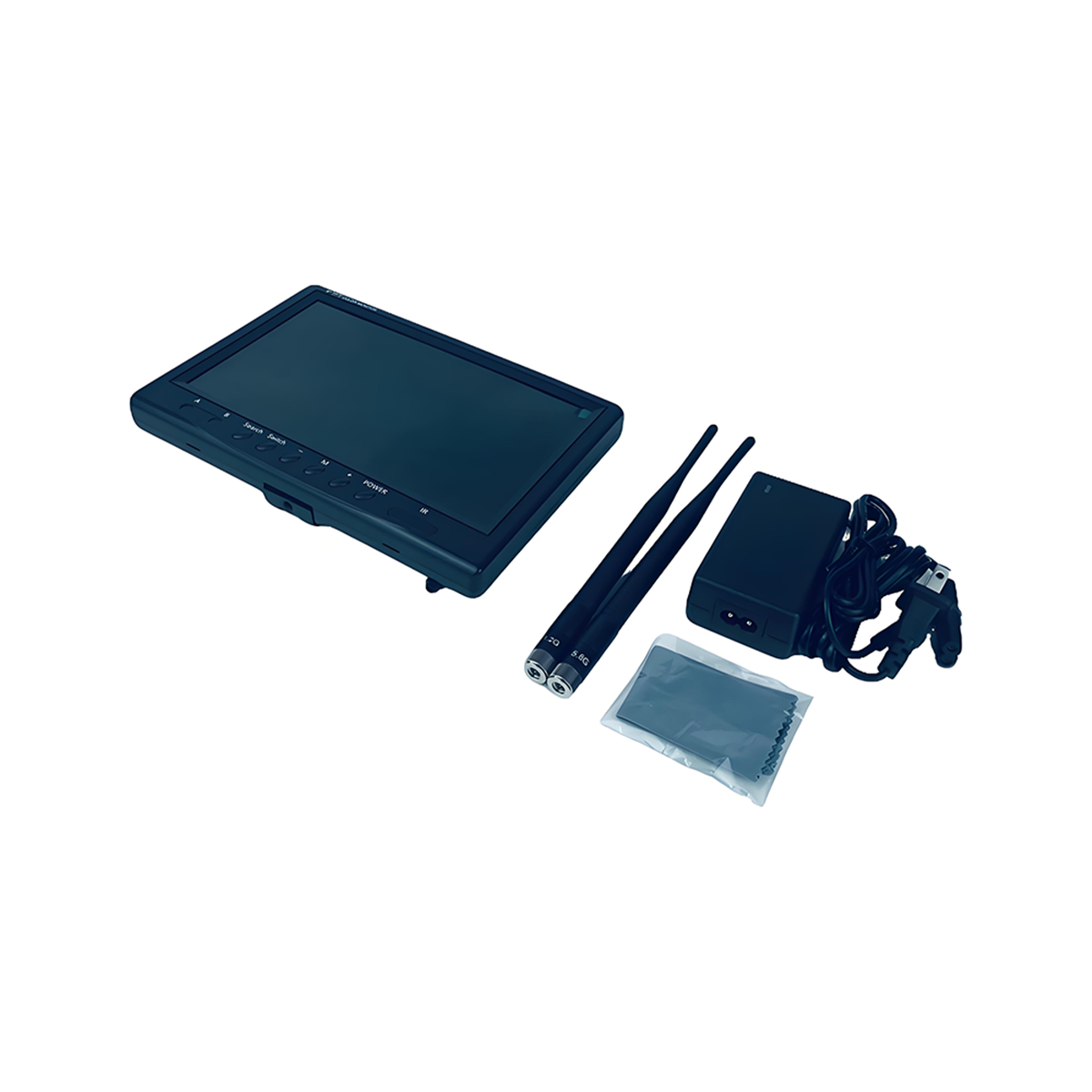

Package Include
- 1 x FPV Receiver Monitor
- 1 x Adapter
- 1 x Wiping Cloth
- 1 x Manual
