5.8G 4.3 Inch FPV Monitor LCD5803

5.8G 40CH FPV Monitor with DVR  5803 MINI 4.3 Inch LCD Display Support Auto Search & Video Recording For RC FPV Multicopter

Original price was: $72.99.Current price is: $68.99.

- +
Features
  • 4.3-inch LCD Screen: Enjoy a vibrant and clear visual experience with a high-resolution 800 x 480 pixel display.
  • 16:9 Display Ratio: Perfectly suited for wide-angle viewing, enhancing your video experience.With a brightness of 500 cd/m², the screen ensures visibility even in bright outdoor conditions.
  • Operates between 5645-5945 MHz, supporting 40 channels with auto-search functionality.
  • Support external audio and video input/output for versatile connectivity with other devices.
Specification
  • LCD Screen Size: 4.3 inches
  • Resolution: 800*480
  • Display Ratio: 16:9
  • Brightness: 500cd/m2
  • Video Delay: less than 20ms

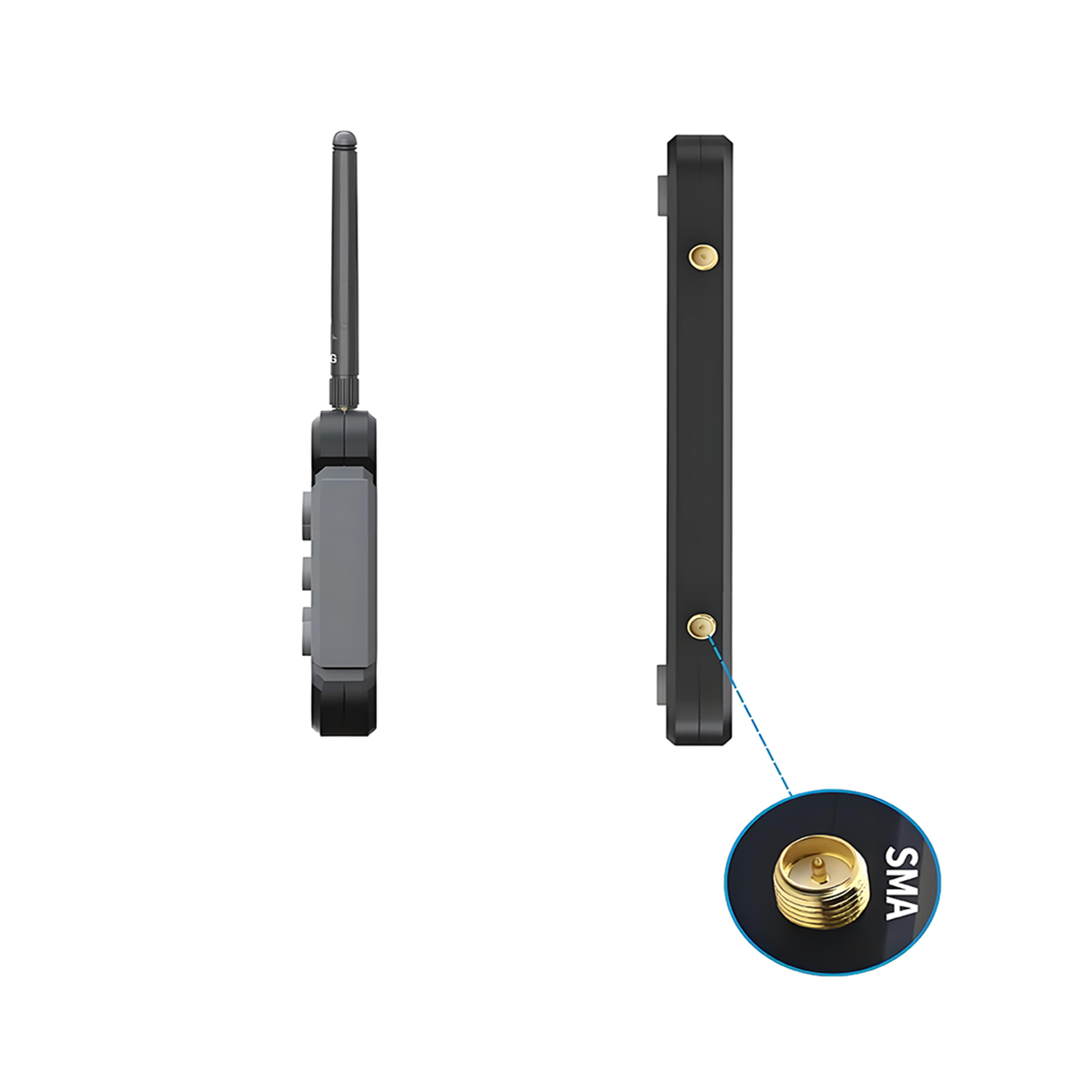

  • Interface Antenna: 2*RP-SMA male hole
  • USB: Micro-USB charging
  • Frequency: 5645-5945MHz
  • Receiving: 40CH Support Auto-searching
  • Voltage Input: DC 5-23V Support 2-6S
  • AV Interface: external audio and video input or audio output
  • Card Slot: Support C10 high speed TF card up to 32G
  • DVR Recording size: VGA/D1/HD (three modes are optional)
  • Video Sound: on/off (optional)
  • Recording Time: off/3 minutes/5 minutes/10 minutes (optional)
  • Frame Rate: 30 frames
  • Compression Format: MJPEG
  • Video File Format: AVI
  • Built-in Battery 3.7V/1200mAh
  • Product Weight: 165g

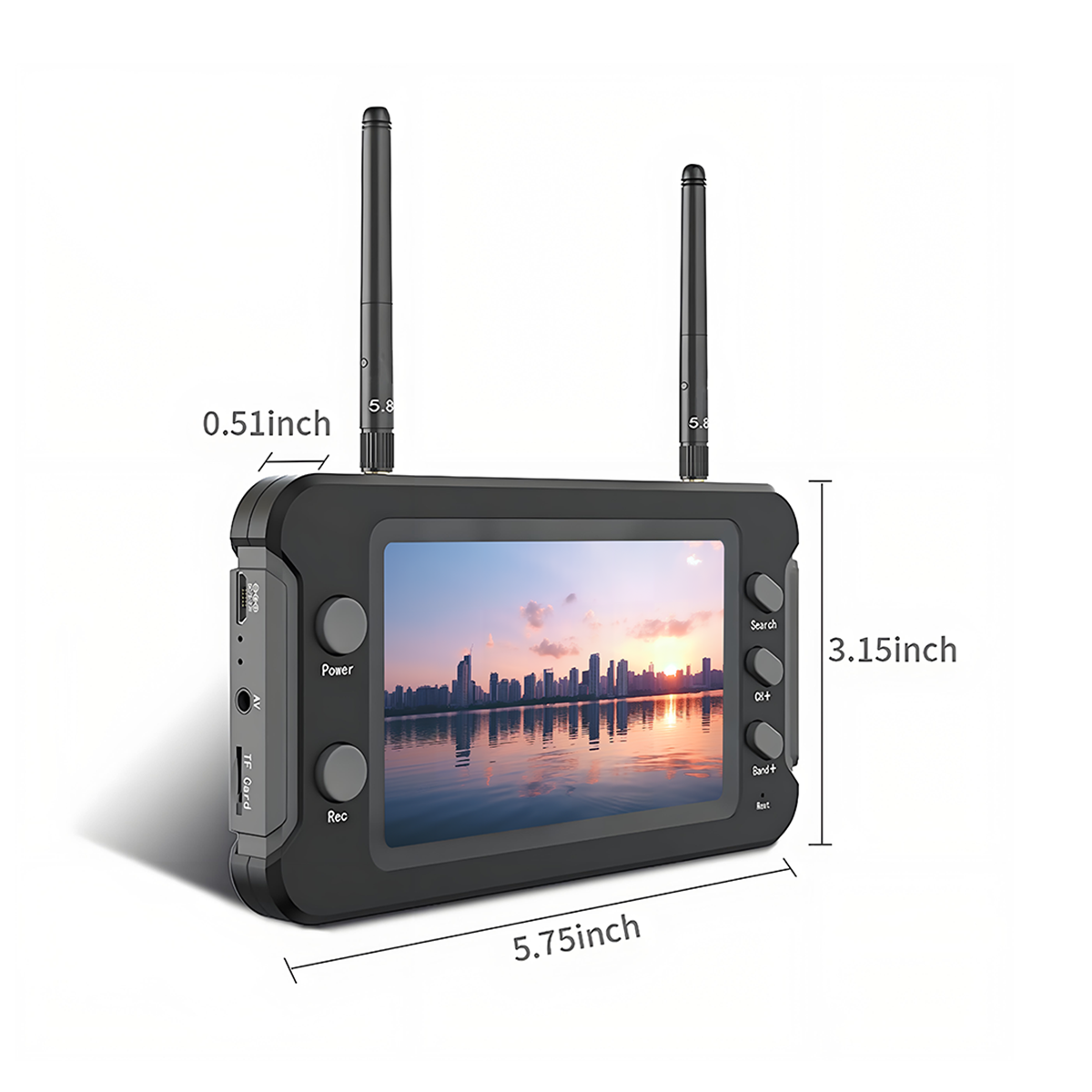

  • Product Size: 146(L)*80(W)*13(H)mm
Frequency Table

Package Include
  • 1 x FPV  Monitor
  • 1 x XT60 to Micro-USB cable
  • 2 x Antenna
  • 1 x Manual
