Features
- Built-in 5.8GHz Dual Receiver: Ensures better reception with enhanced signal stability, providing reliable video feeds.
- Dual Buffered AV Outputs: Offers stable AV output, allowing you to connect to multiple devices without signal degradation.
- AV Receiver with Diversity Inputs: Utilizes diversity inputs to enhance signal reception and reduce interference, ensuring clear and stable video.
- Built-in Battery: Compact and portable design with an integrated battery, making it easy to carry and ideal for outdoor use.
- One-Key Automatic Signal Search: Simplifies operation with a single button to automatically search for available signals.
- Work Status OSD Display: Provides real-time information on the device’s working condition, keeping you informed at all times.

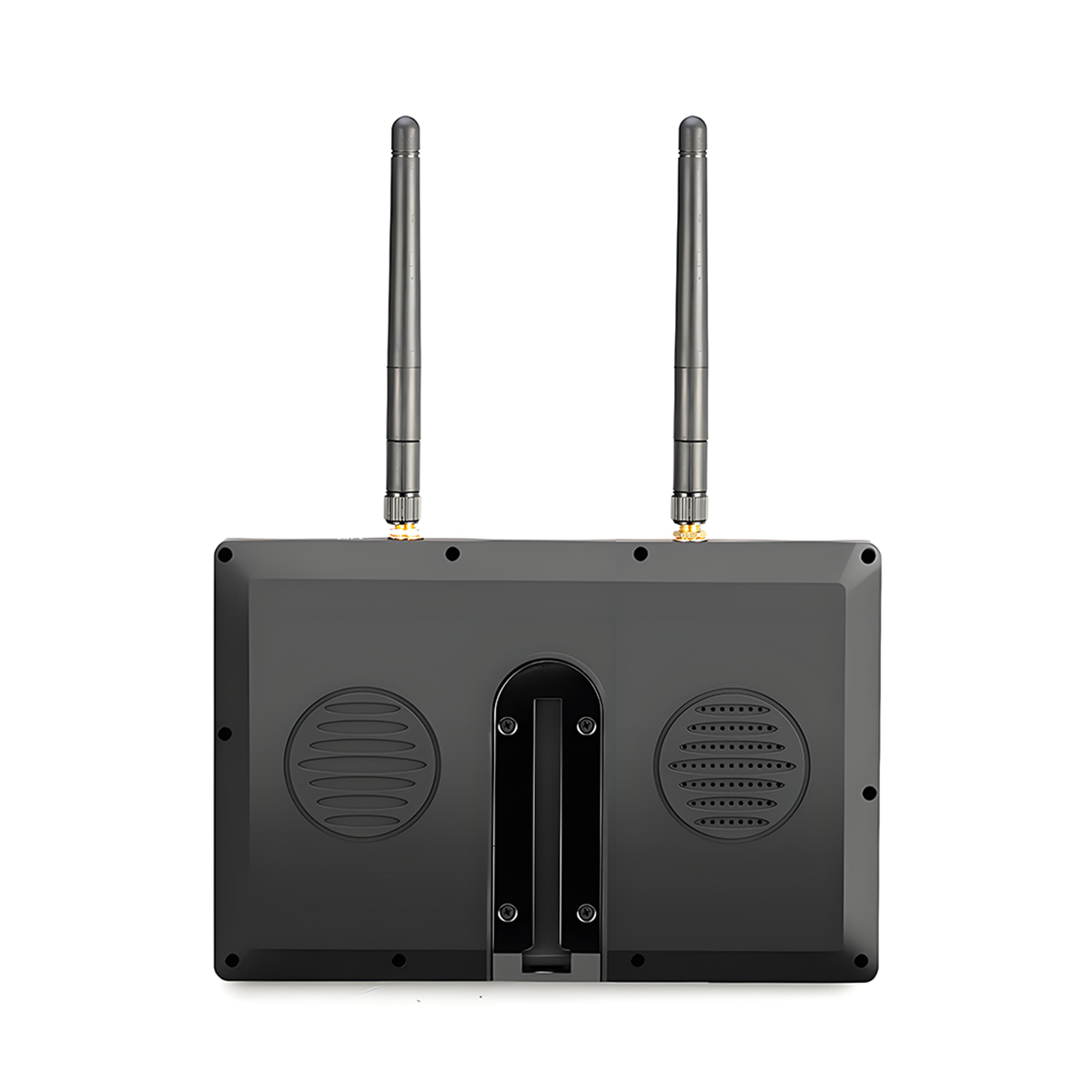

- Mountable Design: Can be easily mounted on popular radio equipment or tripods, offering flexibility in usage.
Specification
- Display Diagonal: 7″ inches
- Resolution: 800×480
- Aspect Ratio: 16:9
- Viewing Angle: horizontal: 140°,vertical: 120°
- Brightness: 600cd/m2
- Screen Type: LCD Screen with LED Backlight
- Image Format: JPEG, AVI
- Video Format: PAL(720*576); NTSC(720*480)
- Wireless Data Reception: 5.8G 40CH, reception sensitivity -90dBm
- Operating Voltage: DC 7~16V
- Power Consumption: max. 650 mA at 12 V
- Battery Charging current: 850 mA at 12 V (max)
- Operating Temperature: -10℃ to +65℃
- Connectors: RP-SMA socket (female)
- Antenna Connectors: RP-SMA plug (male)
- Size:180x120x50mm (Sun visor height: 28mm)
- Weight: 430g (without antennas)
- Without DVR
Frequency Table
Note: Cannot receive 2 different channels at the same time.
