Feature
- The large 52.8 mm x 15 mm stator ensures stable and powerful thrust, suitable for carrying heavy loads.

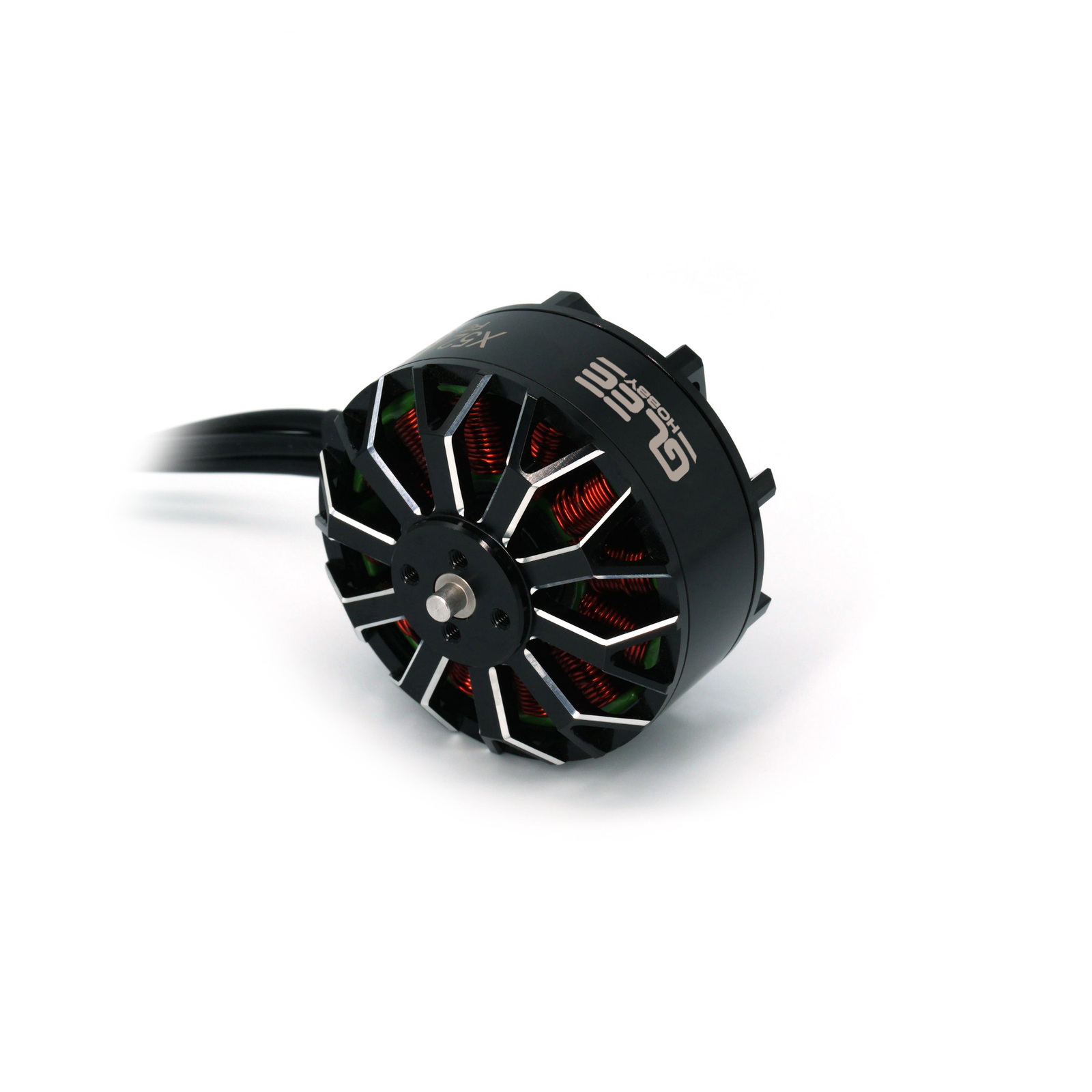

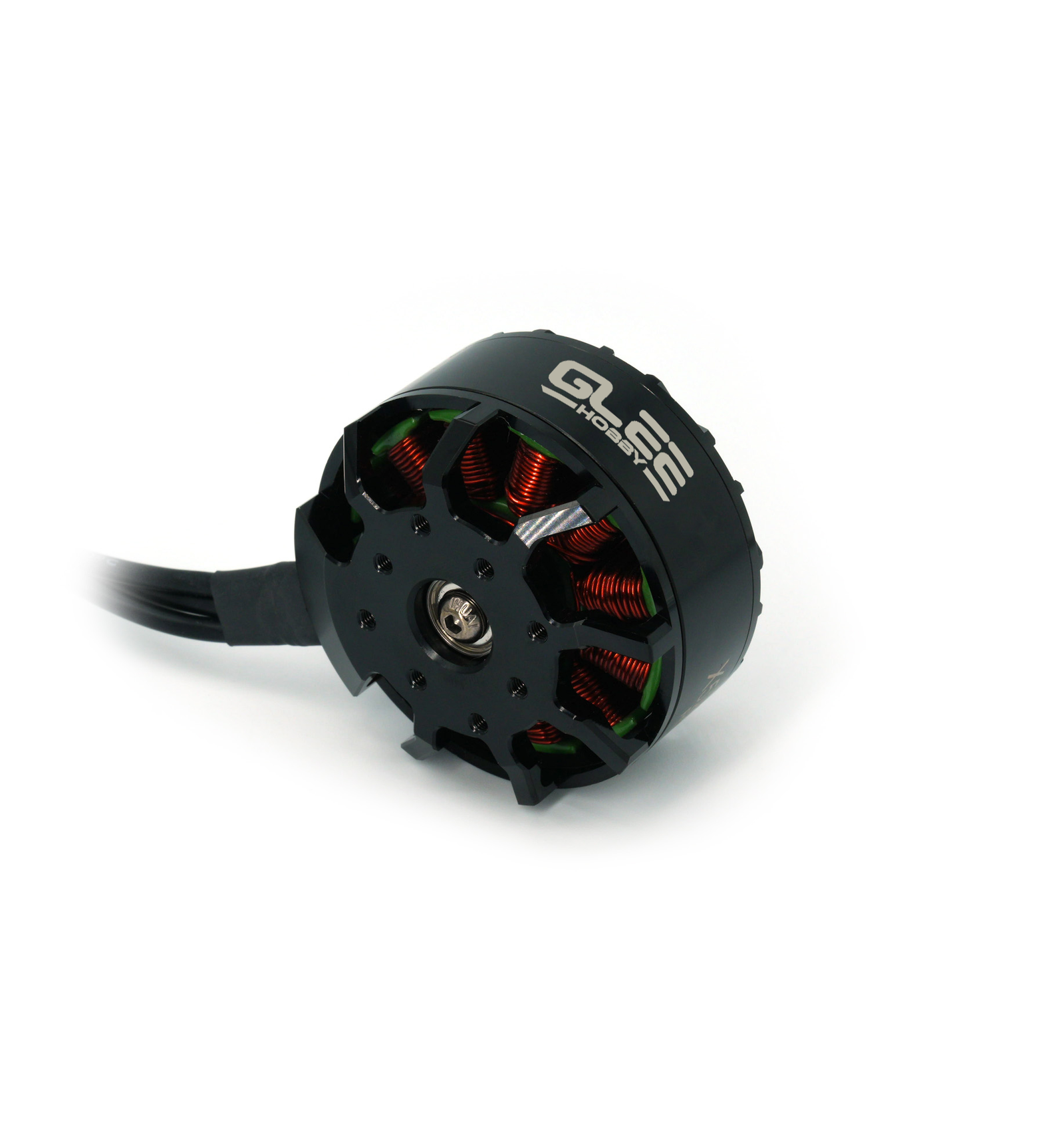

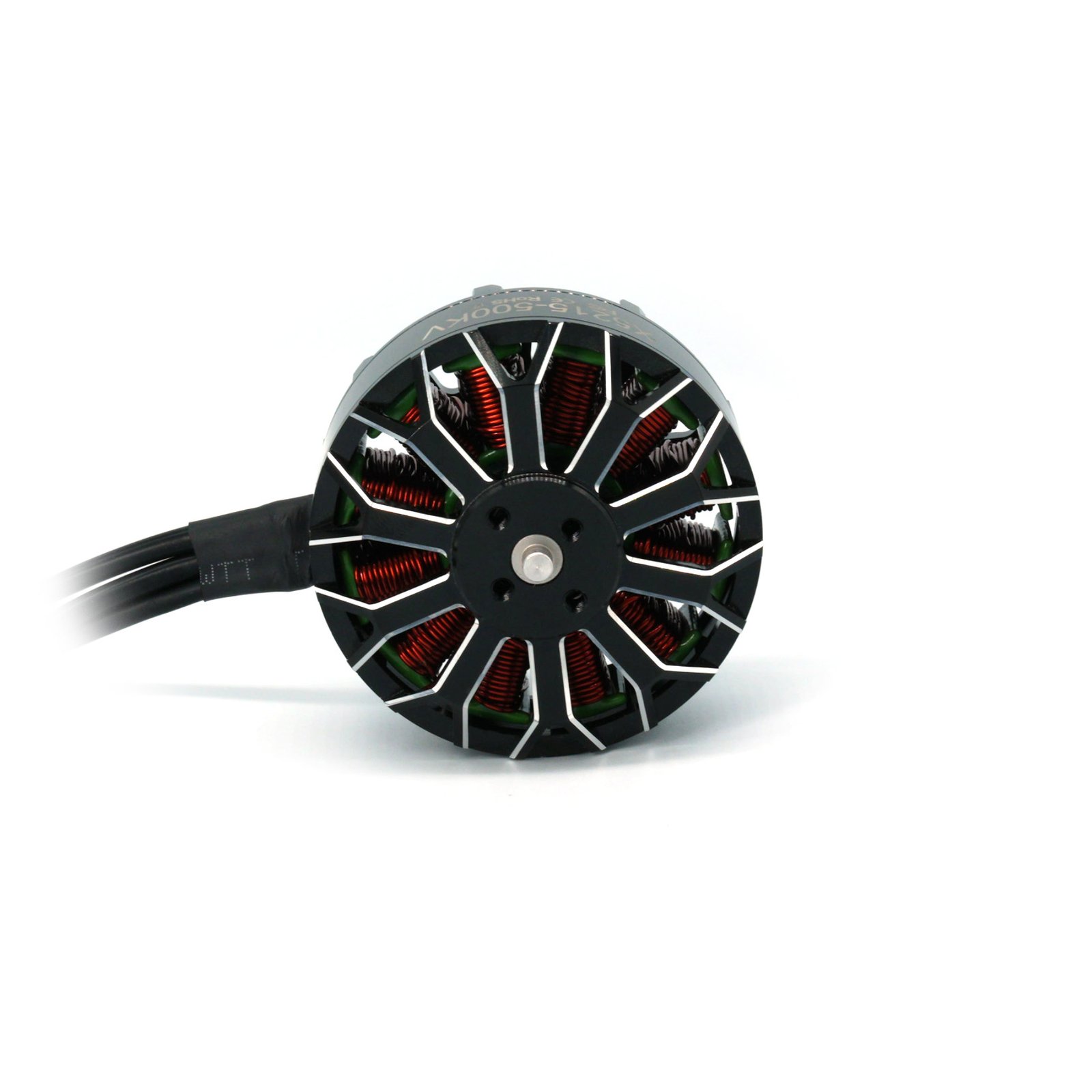

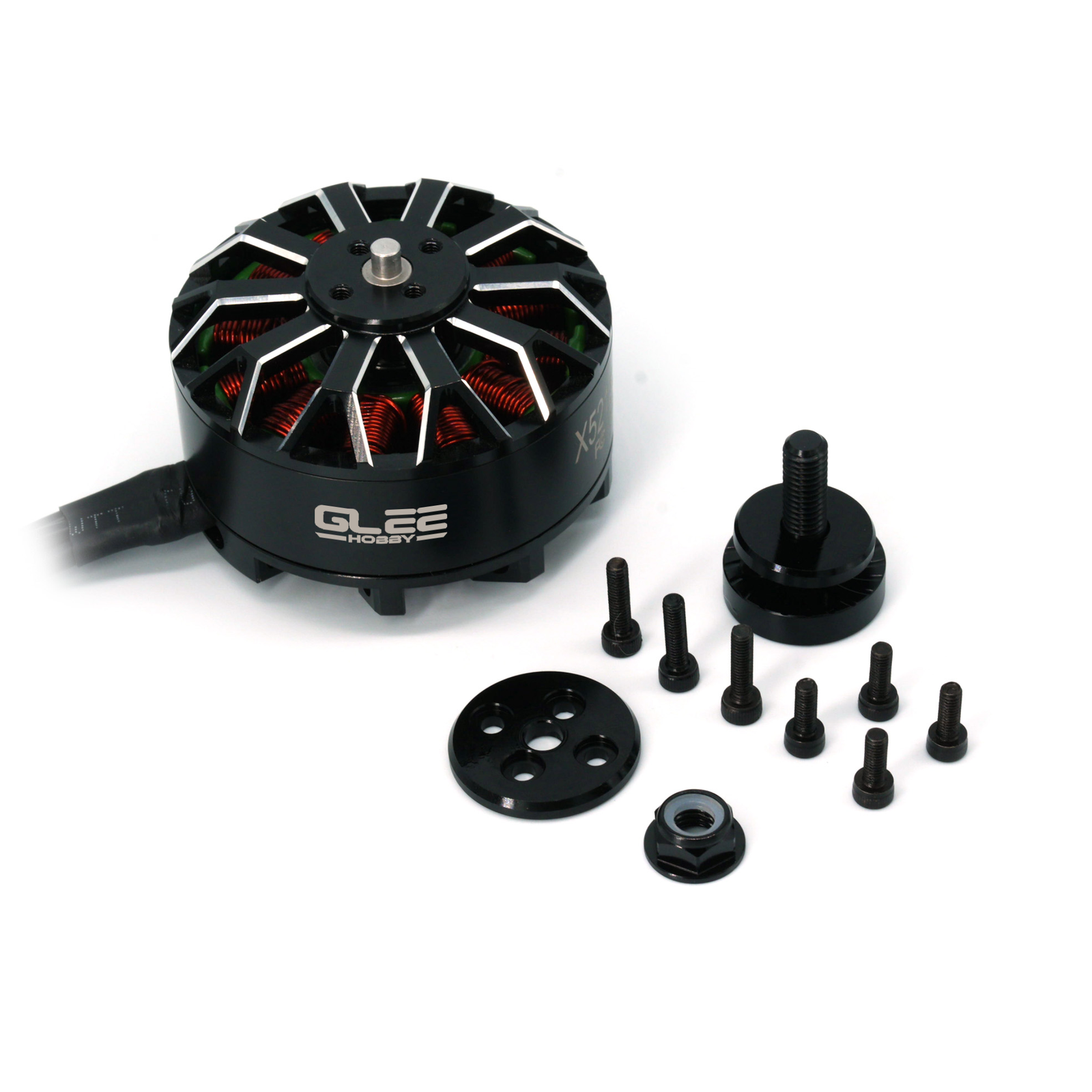

- With a Φ60.8mm x 40mm form factor and weighing 356.4g (without wires), this motor is engineered for heavy-lift drones and industrial UAV applications. The larger motor size allows it to support larger propellers (17-20 inch), offering superior thrust for large, powerful drones.
- The motor supports a wide voltage range, compatible with 4-8S LiPo batteries, making it highly versatile for various drone applications, from high-speed flights to industrial use cases.
- With low internal resistance (0.051 ohms for 340KV and 0.032 ohms for 500KV), the motor minimizes heat generation and power loss, ensuring efficient power transfer and extending the motor’s operational lifespan, even in demanding conditions.
- Suitable for agricultural drones, mapping UAVs, and professional filming platforms, where sustained power and reliability are crucial
Specifications
Configuration:12N 14P
Stator Diameter: 52.8mm
Stator Length:15mm
Shaft Diameter: 4
Motor Dimensions(Dia*Len): Φ60.8*40mm
Weight:356.4g (W/ o Wire)
5215 340KV
No.of Cells(Lipo):4-8S
Idle Current (10V): 2.34A
Max Continuous Current:76.3A (180S)
Max Continuous Power: 2441.6W (180S)
Internal Resistance: 0.051

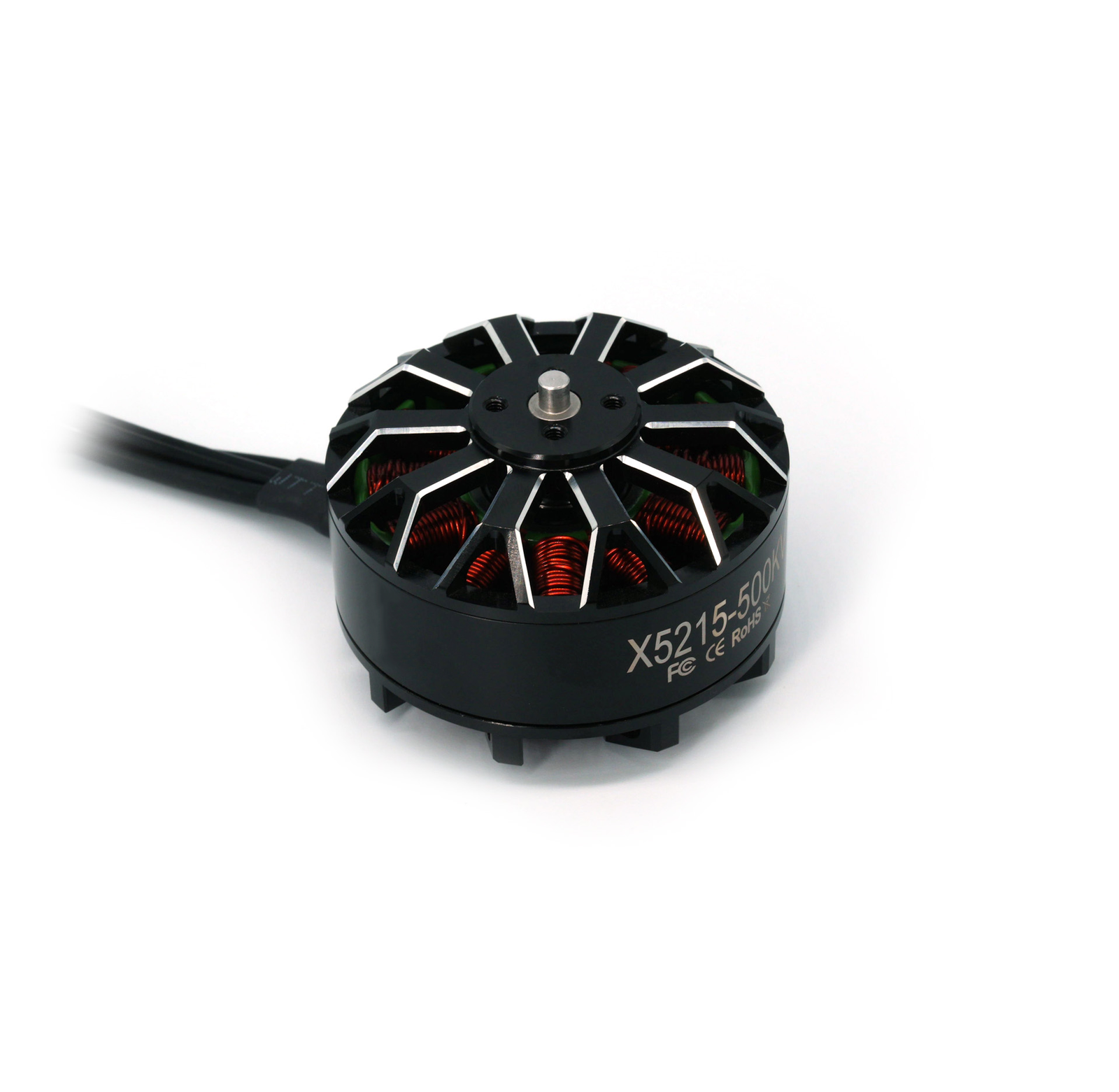

5215 500KV
No.of Cells(Lipo):4-8S
Idle Current (10V): 3.45A
Max Continuous Current: 112.6A (180S)
Max Continuous Power:3603.2W (180S)
Internal Resistance: 0.032
