Feature
- This motor is ideal for applications requiring compact and lightweight components, such as drones or RC vehicles.
- Works with 3-4S LiPo battery cells, providing flexibility to users to select between different voltage configurations depending on their requirements.
- Multiple KV Options for Tailored Performance:1750KV: Ideal for high-torque, low-speed applications.
2500KV: Balanced performance for moderate speed and torque.
2750KV: High-speed performance for applications requiring maximum RPMs. - Available in three KV options: 1750KV/ 2500KV/ 2750KV,KV value can also be customized according to the needs of the motor
Specifications
Configu Ration: NP
Stator Diameter: 23mm
Stator Length: 6mm

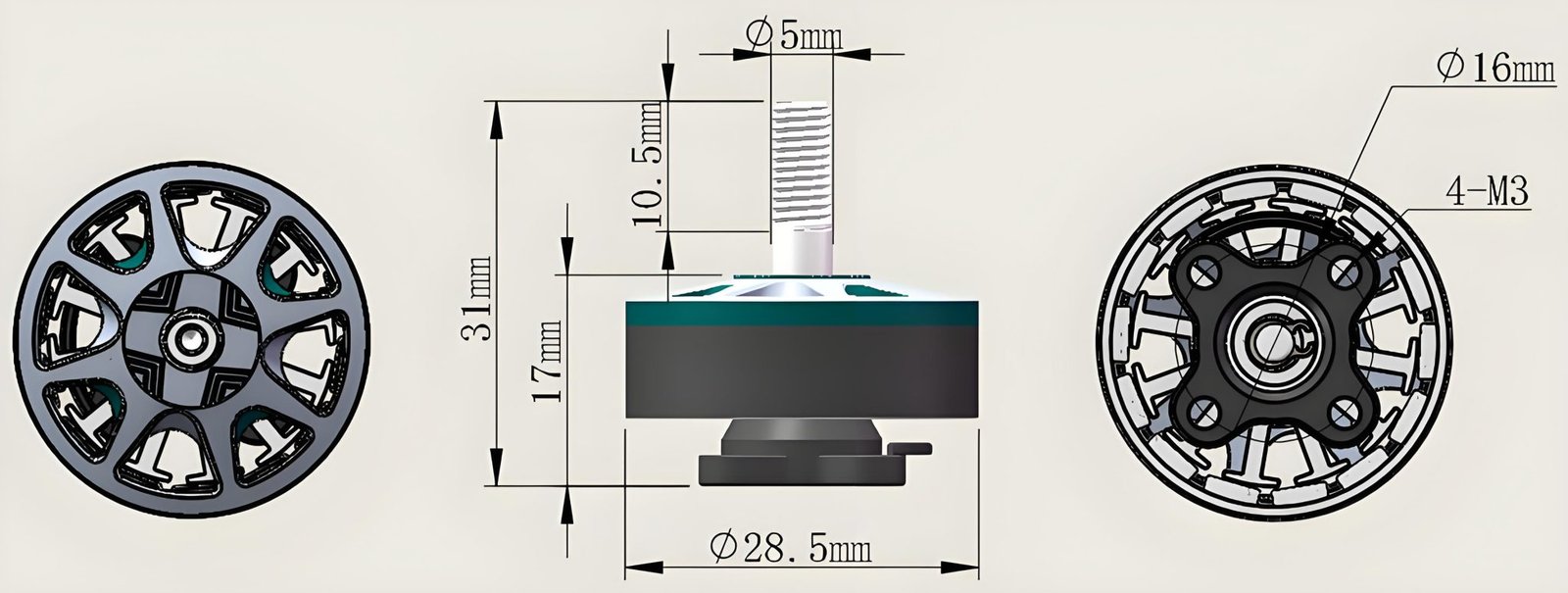

Motor Dimensions(Dia*Len): Φ28.5*17mm
Weight: 35g
NO.of Cells: 3-4S

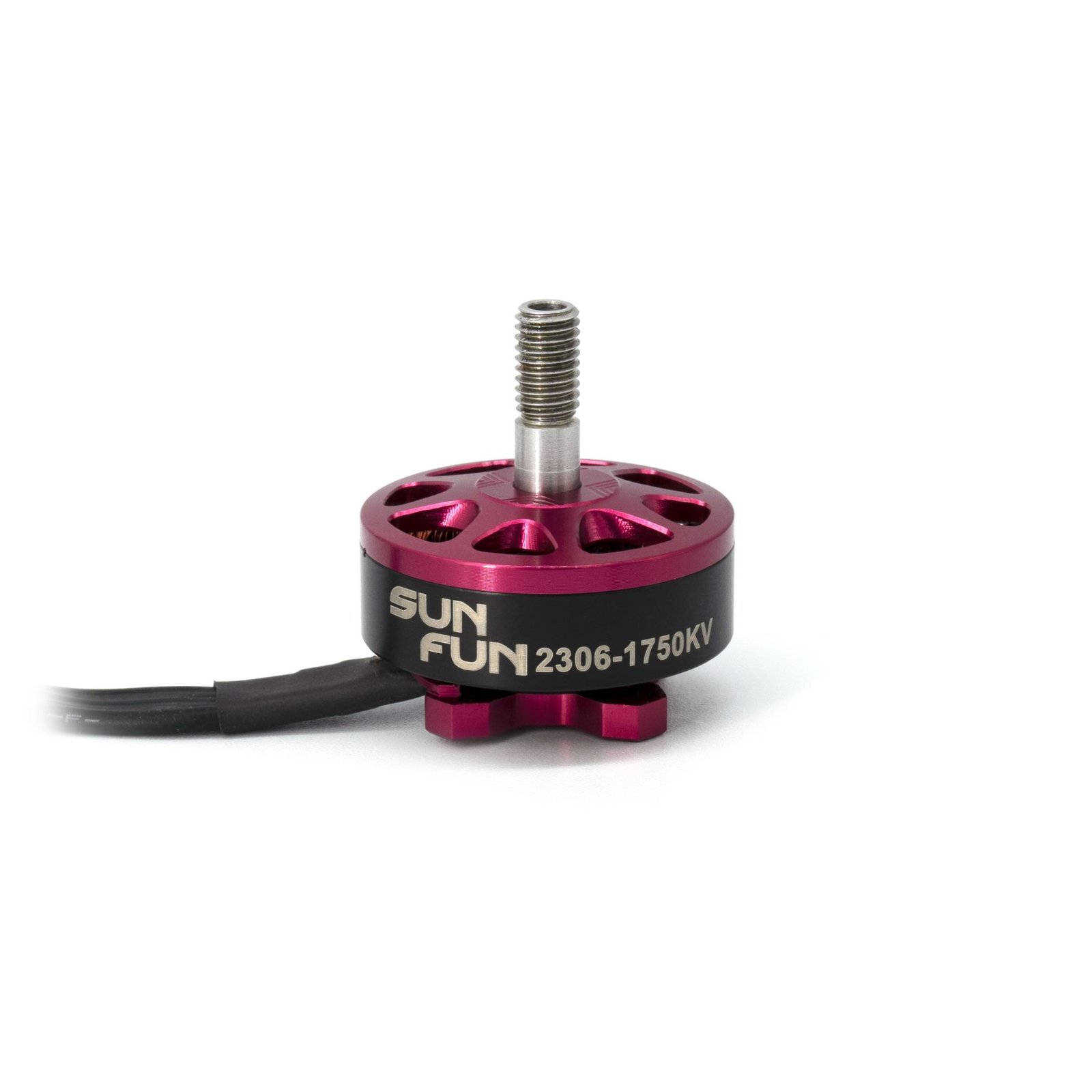

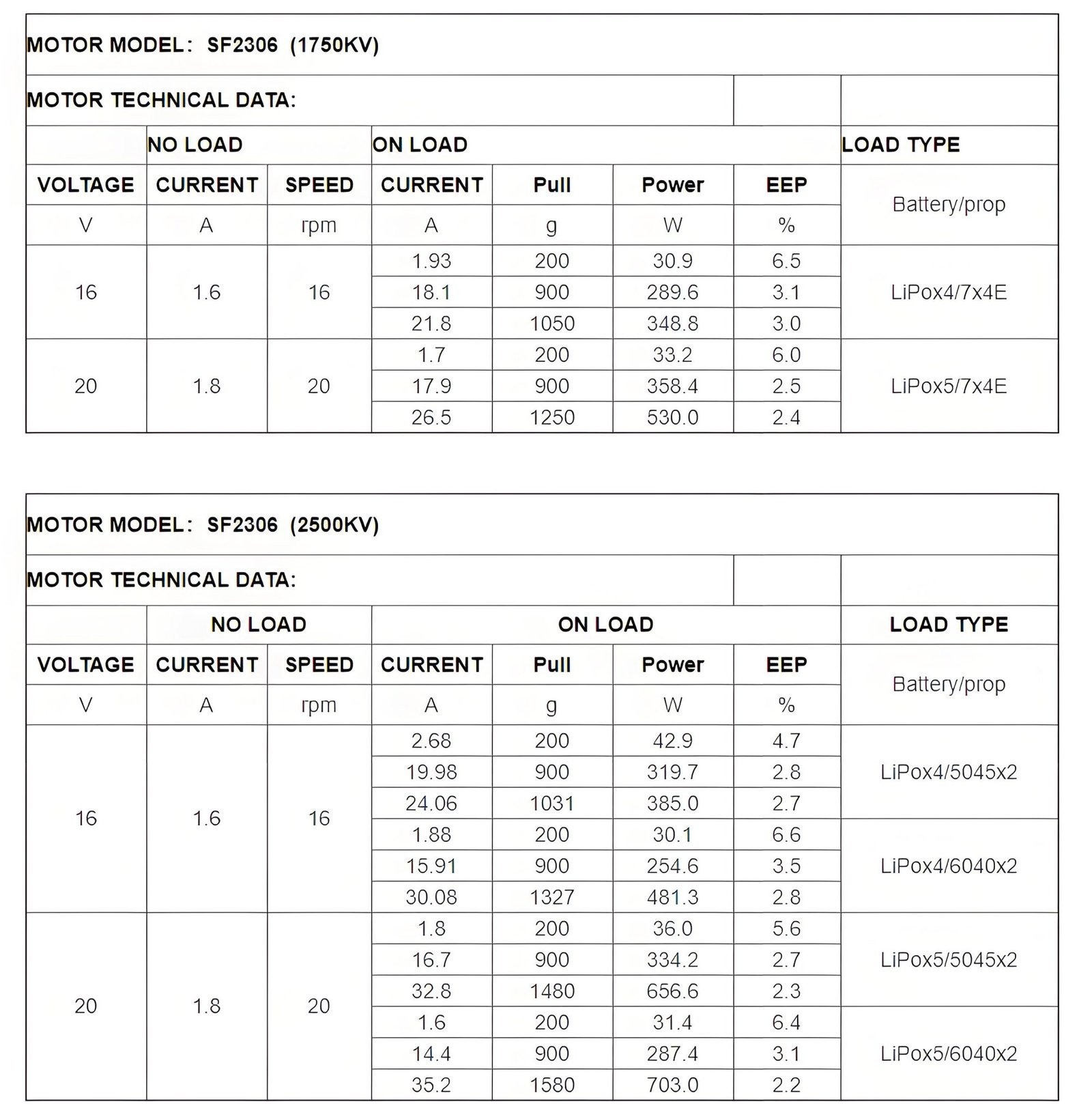

2306 1750KV
Idle Current: 1.6A(16V)
Max Continuous Current: 26.5A
Max Continuous Power:530W
2306 2500KV
Idle Current: 1.6A(16V)
Max Continuous Current: 35.2A
Max Continuous Power: 703W
