Feature
- This motor is ideal for applications requiring compact and lightweight components, such as drones or RC vehicles.
- Works with 3-4S LiPo battery cells, providing flexibility to users to select between different voltage configurations depending on their requirements.
- Multiple KV Options for Tailored Performance:1750KV: Ideal for high-torque, low-speed applications.
2300KV: Balanced performance for moderate speed and torque.

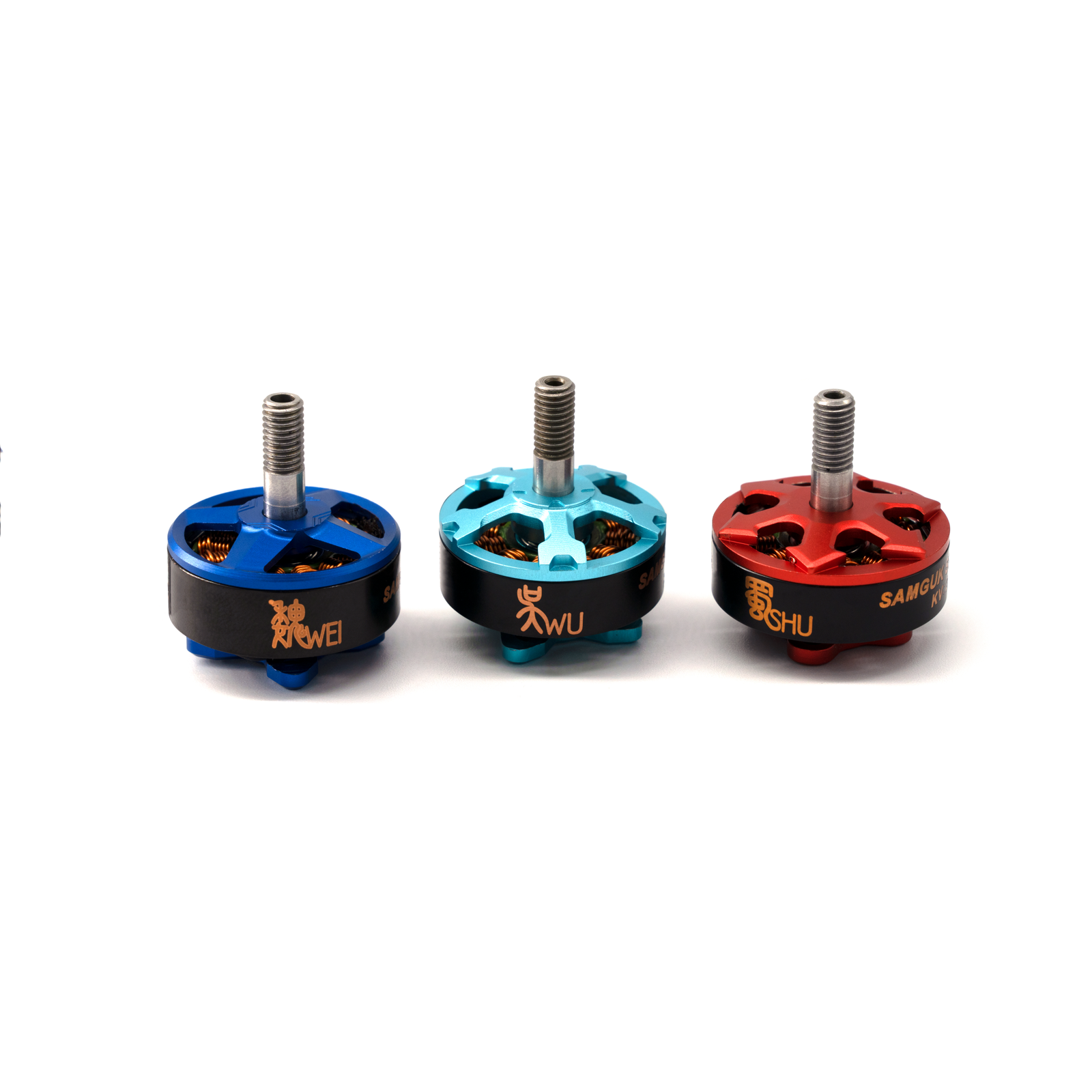

2600KV: High-speed performance for applications requiring maximum RPMs. - Available in three KV options: 1750KV/ 2300KV/ 2600KV,KV value can also be customized according to the needs of the motor
Specifications
Configu Ration: NP
Stator Diameter: 22mm
Stator Length: 7mm
Motor Dimensions(Dia*Len): Φ27.7*18.2mm
Weight: 34.7g
NO.of Cells: 3-4S
2207 1750KV
Idle Current: 1.1A(16V)
Max Continuous Current: 27A
Max Continuous Power: 539W
2207 2300KV
Idle Current: 1.6A(16V)
Max Continuous Current: 36.2A
Max Continuous Power:579.2W
Internal Resistance: 0.06
2207 2600KV
Idle Current: 1.7A(16V)
Max Continuous Current: 44A
Max Continuous Power: 704W
Internal Resistance: 0.05
