Features
- Ultra-high Output Power: With an impressive maximum output of 4000mW, this VTX ensures stable, long-distance video transmission, making it one of the most powerful 5.8GHz video transmitters available today.
- Adjustable Transmitting Power Levels: The VTX offers three power settings (PIT/25/4000mW), allowing users to select the appropriate level based on their needs and regulatory requirements. It supports the IRC-tramp protocol for easy changes in power, band, and channel.
- LED Indicators and Button Adjustment: The device features side LED indicators for intuitive status reading and a button for easy adjustments, enhancing user-friendliness and convenience.
- Ultimate Heat Dissipation Design: Equipped with a full metal casing and an independent cooling fan, the VTX ensures efficient heat dissipation, maintaining stable and smooth transmission even at the maximum power output of 4000mW.
Long Range FPV VTX: The combination of super high output power and stable transmission technology allows this VTX to achieve new records in long-range FPV. - Pit Mode: In pit mode, the VTX reduces its power to a minimum, ensuring the video feed is only visible at close range to the user. This feature is particularly useful to avoid interfering with other pilots during setup and adjustments.
Specifications
- Input Voltage: : DC6-36V, 2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 145mA@Pit-mode, 280mA@25mW, 950mA@4000mW
- Channels: 48CH (A.B.E.F.R.L;5362MHz-5945MHz)
- Power:PIT/25/4000mW

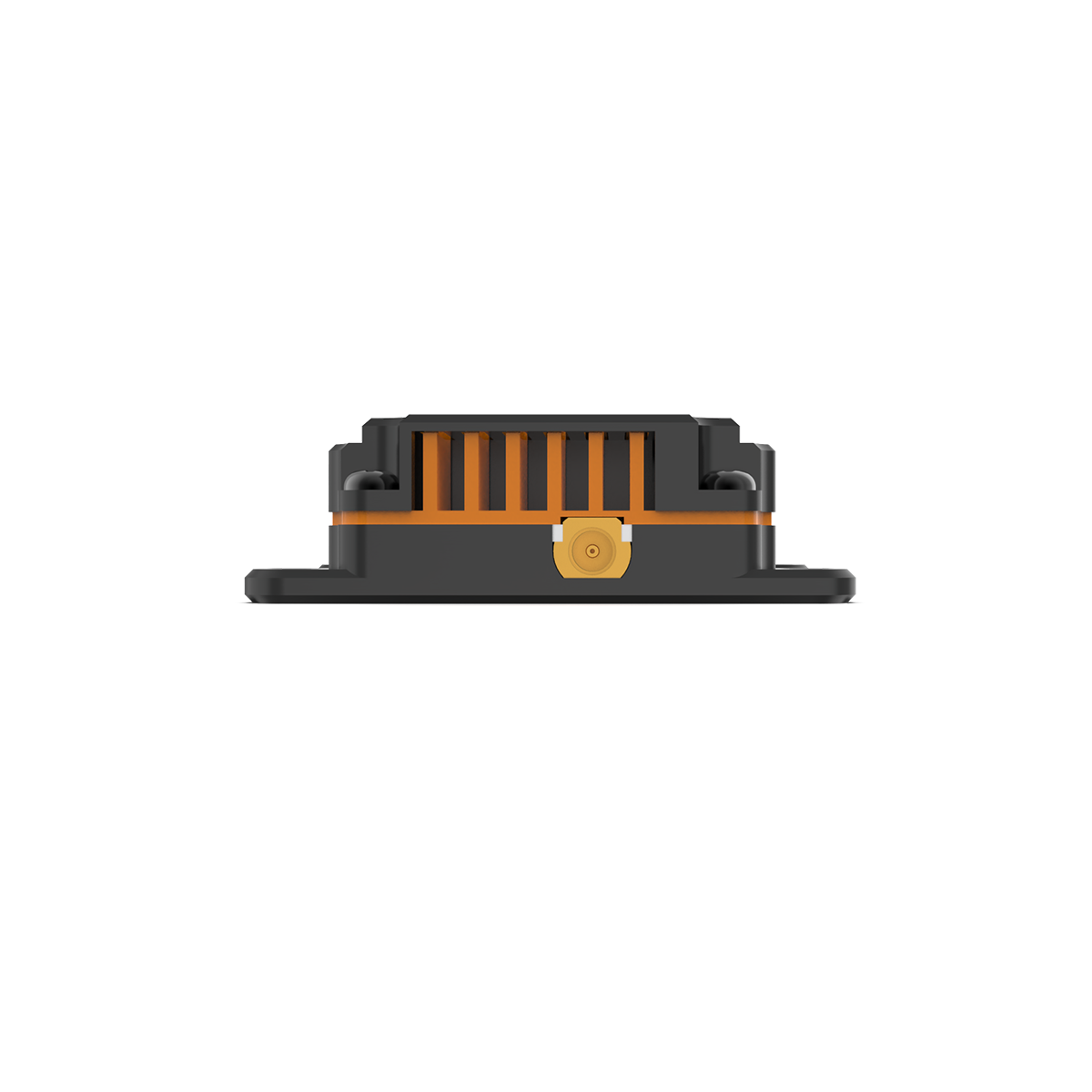

- Antenna Connector: MMCX
- VTX Protocol: IRC-tramp
- Material: Aluminum
- Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(Hole)
- Weight: 16g
Frequency Table
Package Included
- 1 X 5.8GHz VTX
- 1 X MMCX to SMA Cable
- 1 X 6 Pin 1.0 Harness
