Feature
- Adjustable Transmitting Power Levels: Users can choose from four power levels (PIT/25mW/200mW/1600mW) by long-pressing the button. This flexibility allows for optimal power settings depending on the environment and regulatory requirements.
- Frequency Range: The VTX offers 8 channels adjustable from 1120MHz to 1380MHz, providing flexibility to avoid interference and optimize signal quality.
- VTX Protocol : It supports the IRC-tramp protocol, enabling easy changes in power, band, and channel settings for seamless integration and compatibility with other FPV equipment.
- LED Indicators and Button Interface: Intuitive LED indicators provide clear status readings, with green indicating the current RF power level and red indicating the frequency. The button interface allows for easy adjustments, with long presses adjusting RF power and short presses adjusting the frequency.
- Wide Voltage Input: With a wide voltage input range of 6-36V DC, the VTX supports direct input from 2-8S batteries, offering compatibility with various power sources commonly used in FPV setups.
- Pit Mode: Pit mode reduces the VTX power to a minimum level, ensuring the video feed is only visible to the user at close range. This feature is invaluable for performing maintenance or adjustments without interfering with other pilots.
Specifications
- Input Voltage: 6-36V DC;2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 80mA@Pitmode, 190mA@25mW, 230mA@200mW, 530mA@1600mW
- Channels: 8CH (1120MHz-1380MHz)
- Power: PIT/25/200/1600/mW
- VTX Protocol: IRC-tramp
- Antenna connector: SMA
- Dimensions: 45.5*35.6*11.5 mm; 30.5*30.5mm(Hole)
- Weight: 22g (W/ o Antenna)

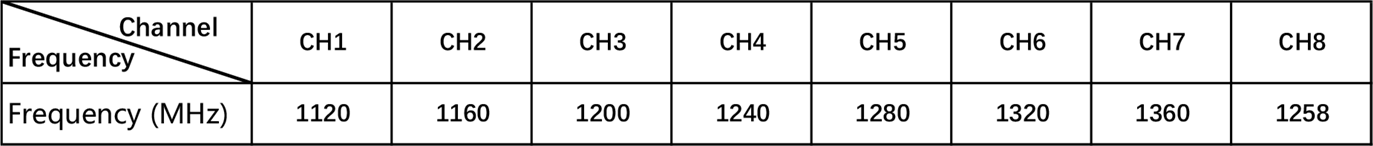

Frequency Table

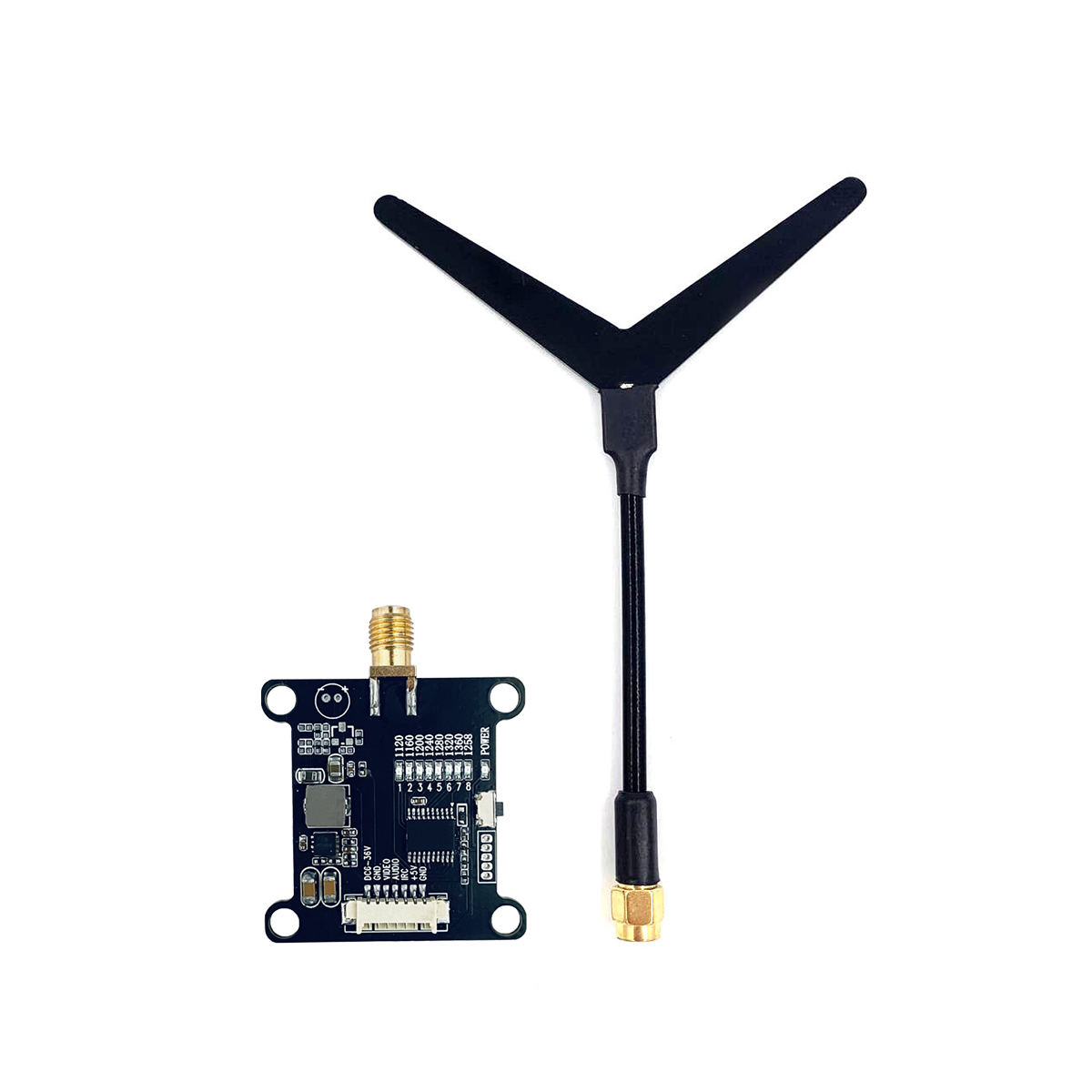

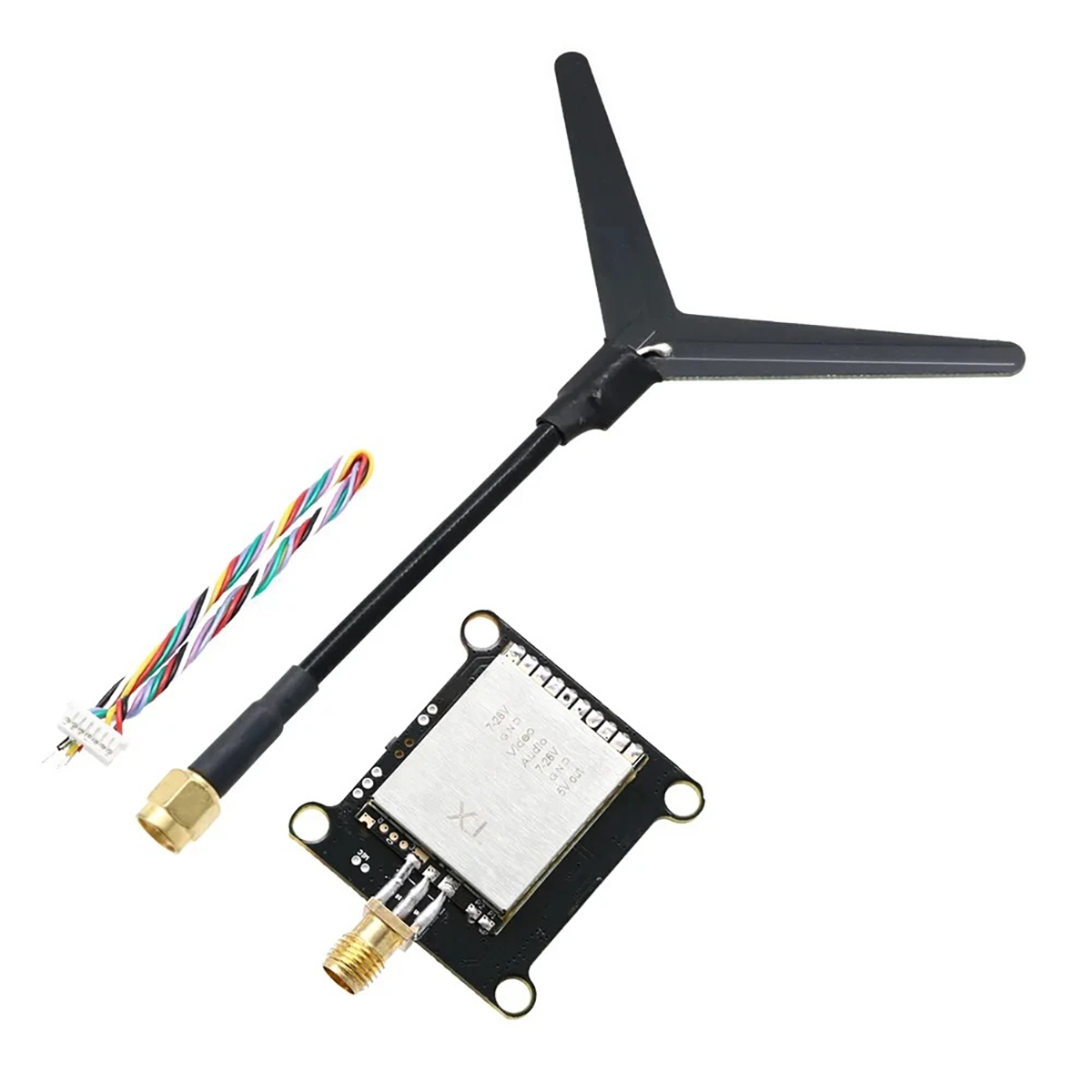

Package Included

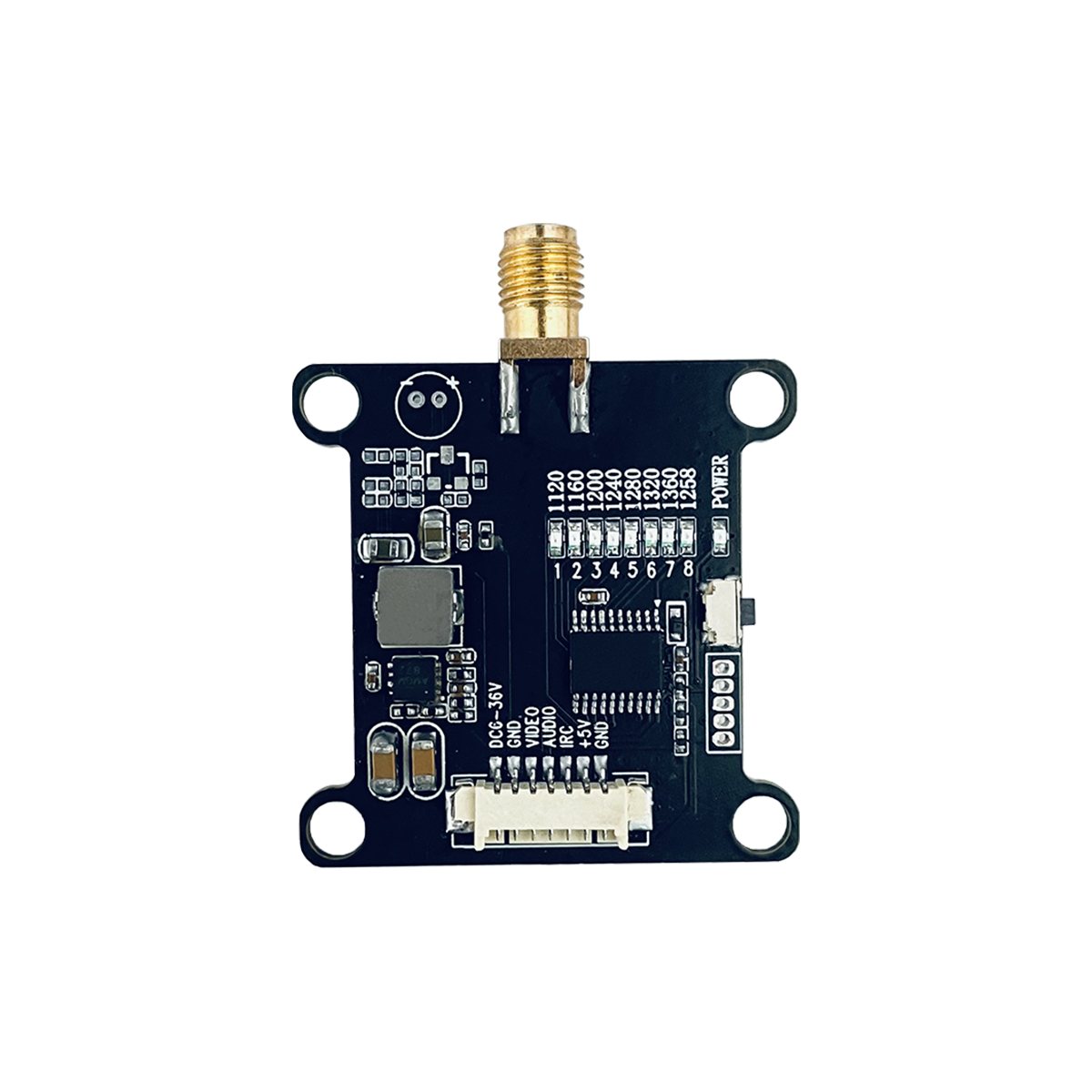

- 1 x 1.2GHz VTX
- 1x 7 Pin 1.25 Harness
- 1x 1.2G Y-Type Antenna
