Features
- Ultra-high output power: With a maximum output power of 3000mW, this VTX provides extremely high transmission power, ensuring a stable and long-distance video signal, making it ideal for long-distance FPV flight.
- LED indicators and button adjustments: The side LED indicators provide clear status information and the button interface allows easy adjustments, making the device user-friendly and intuitive to operate.
- Stable long-distance transmission: The high output power combined with advanced technology ensures a stable transmission capable of setting new records for long-distance FPV.
Specifications
- Input voltage: 6-36V DC
- Output voltage: 5V 1A
- Channels: 16CH (3310MHz-3495MHz)
- Antenna connector: MMCX
- Built-in microphone
- Suitable for any camera PAL or NTSC
- Digital phase-locked loop without drift issues
- Audio and video cables with RCA adapters
- Audio subcarrier 6.5MHz
- Casing material: Aluminum
- Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm (hole)
- Weight: 17g (without antenna)

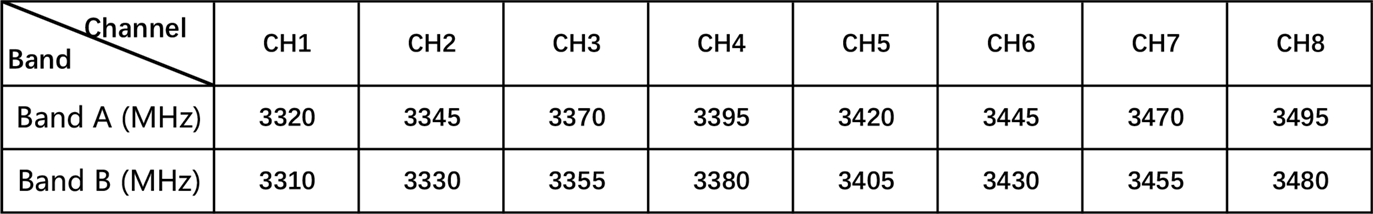

Frequency table
Package Included
- 1 x 3.3GHz VTX
- 1 x MMCX to SMA cable
- 1 x 6-pin 1.0 harness
- 1 x Y-antenna
