Feature

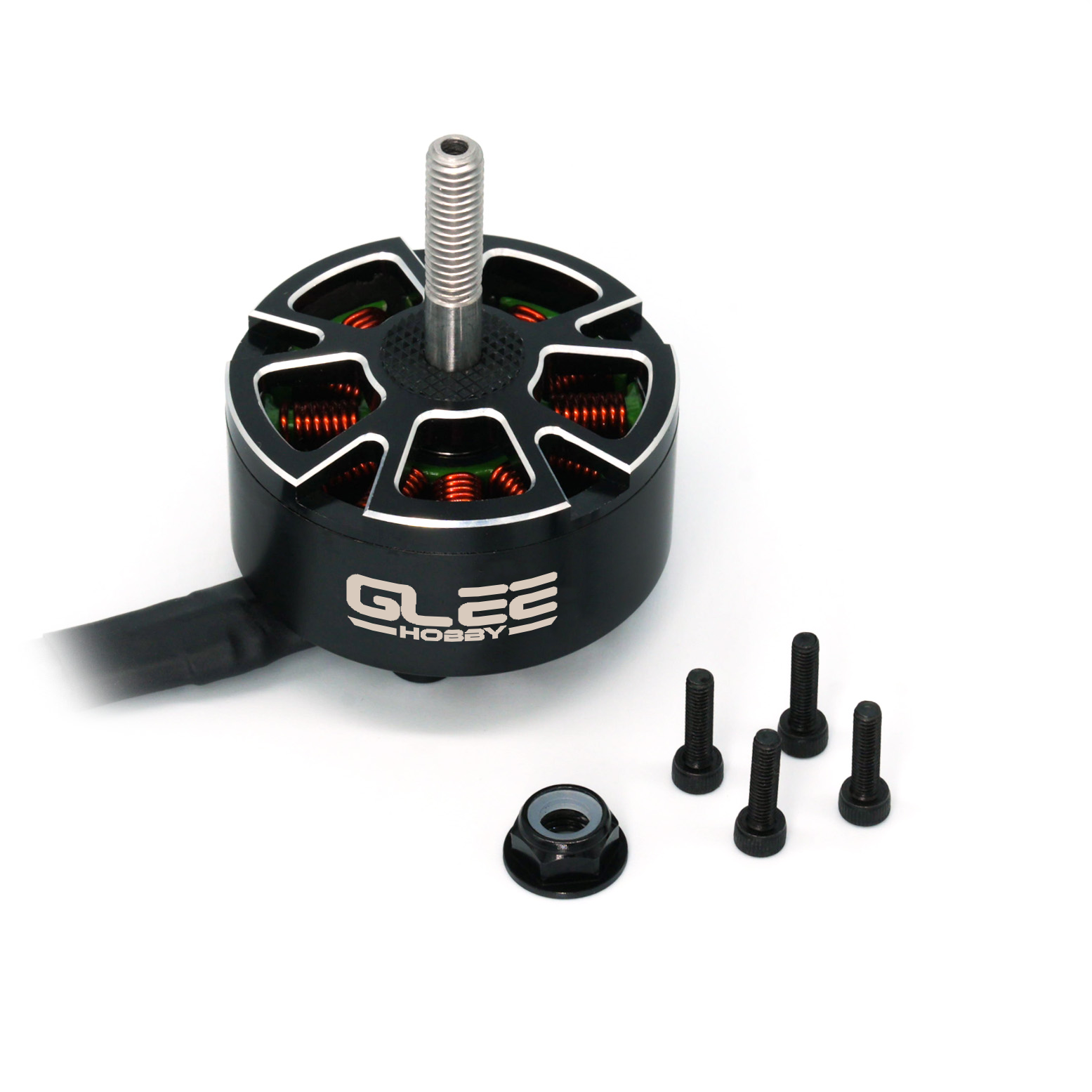

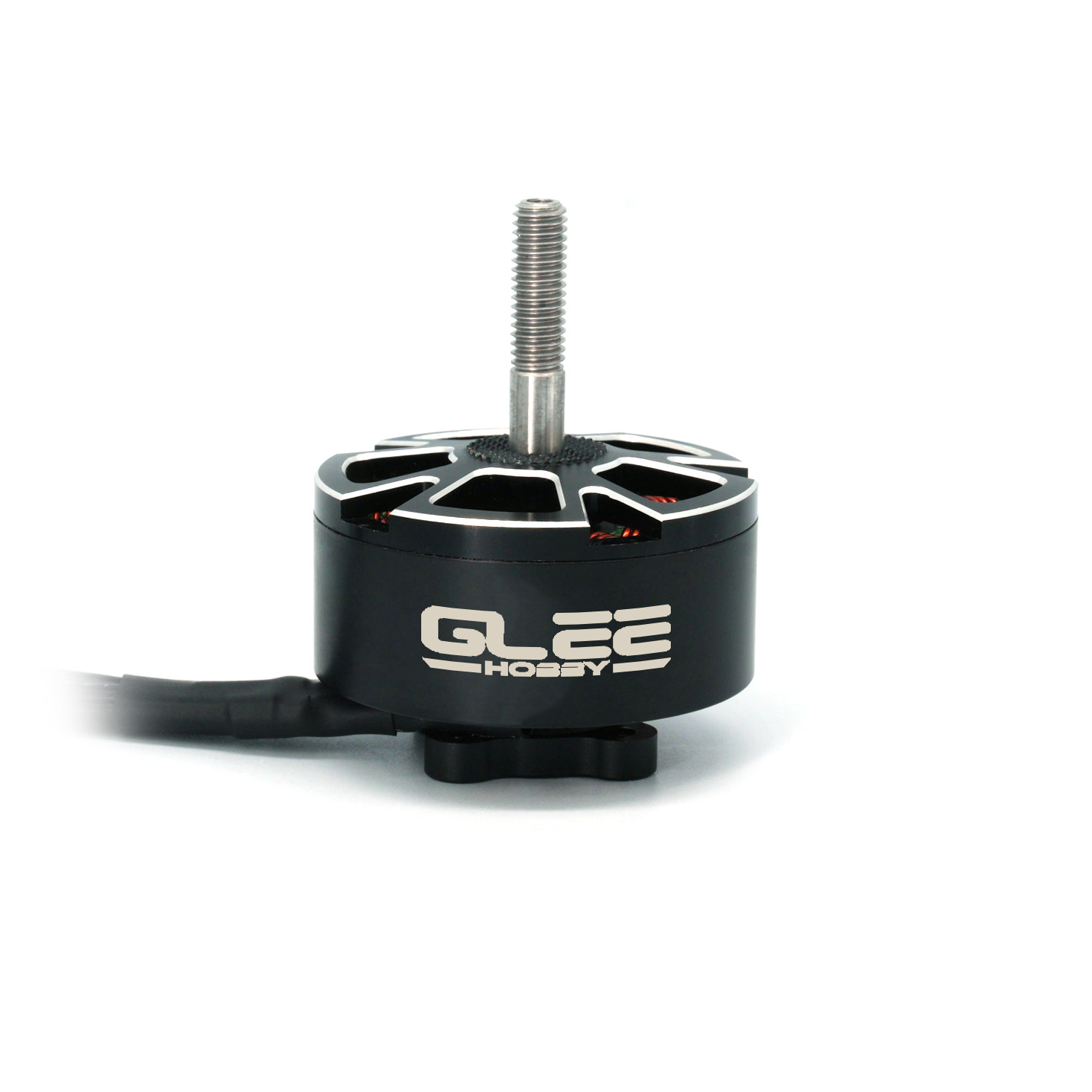

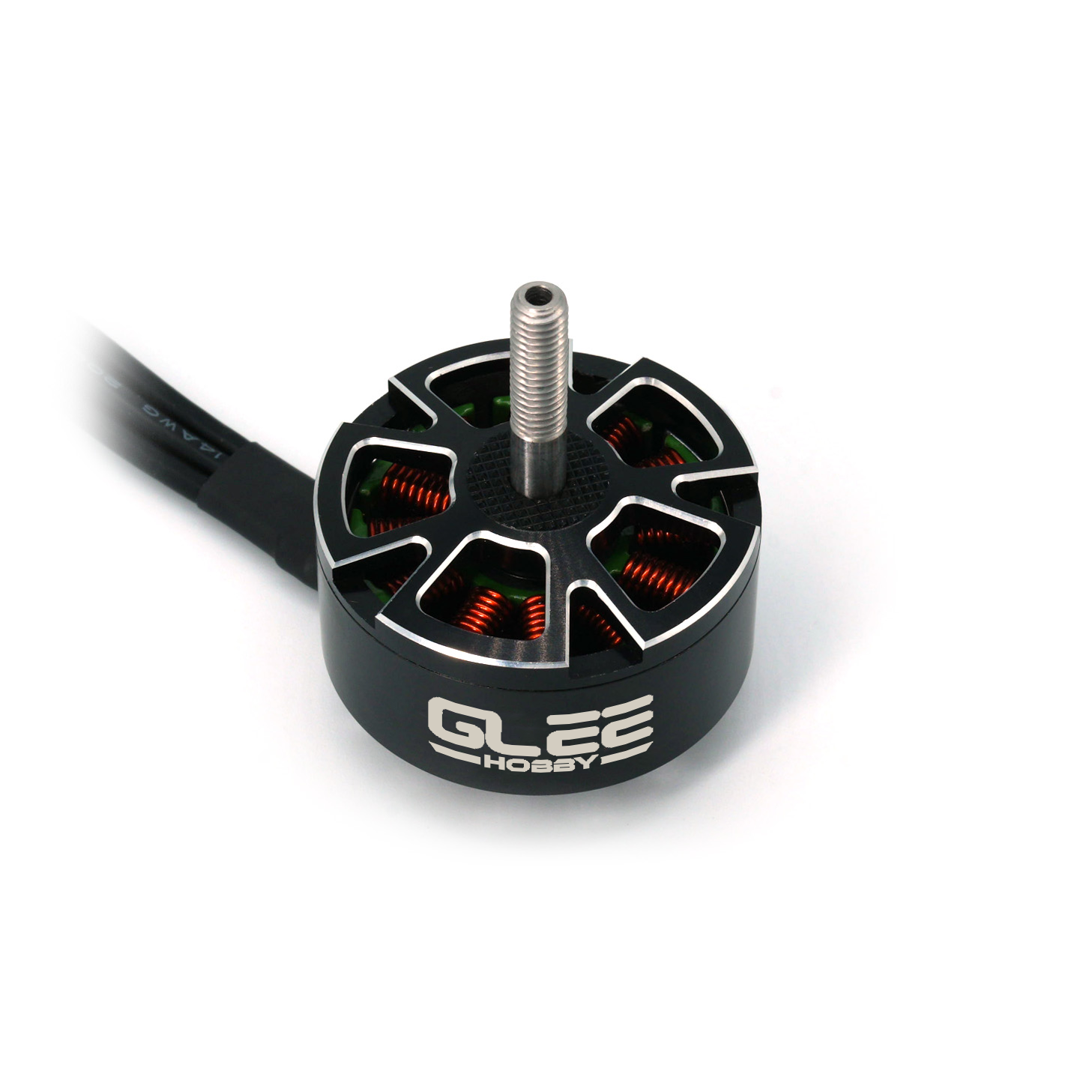

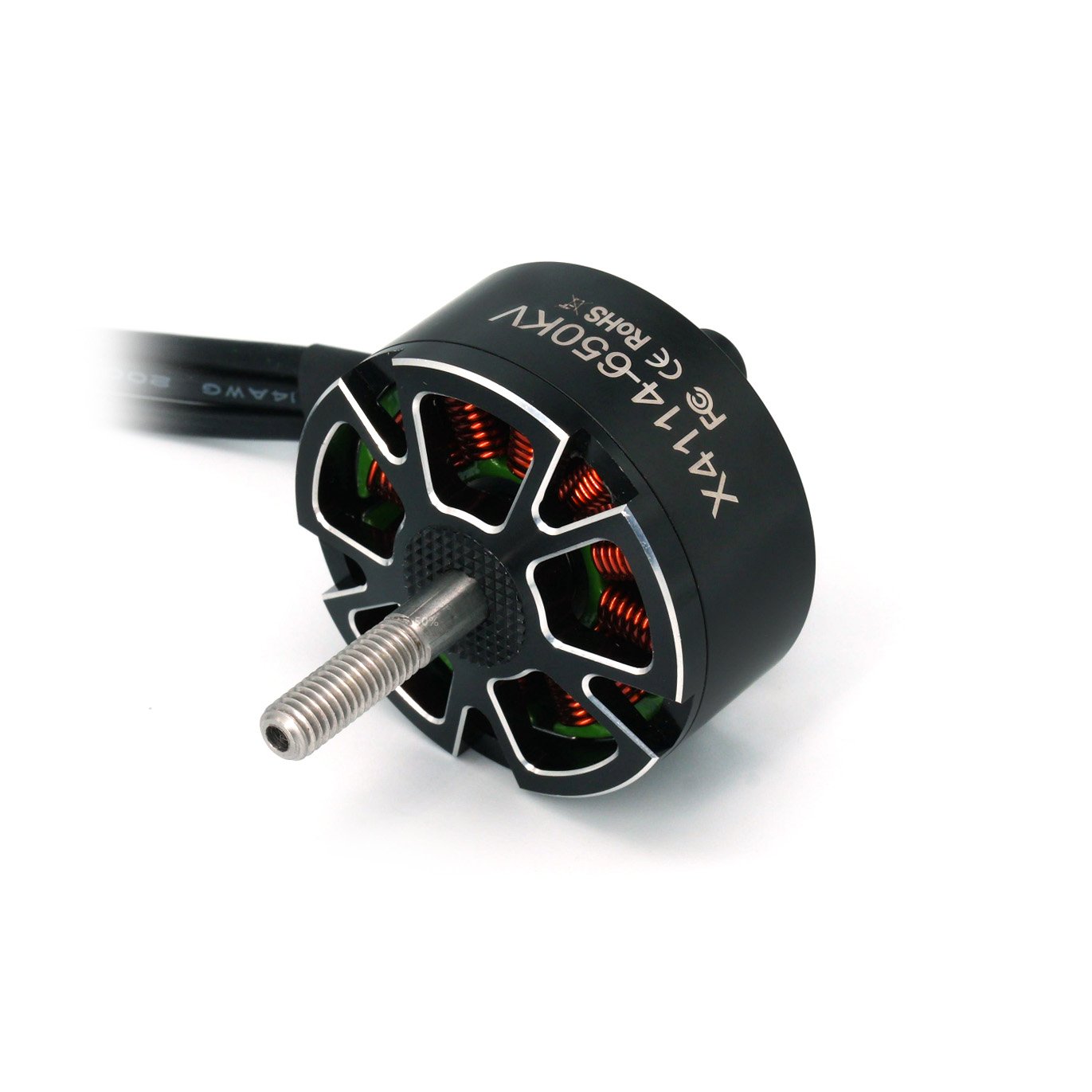

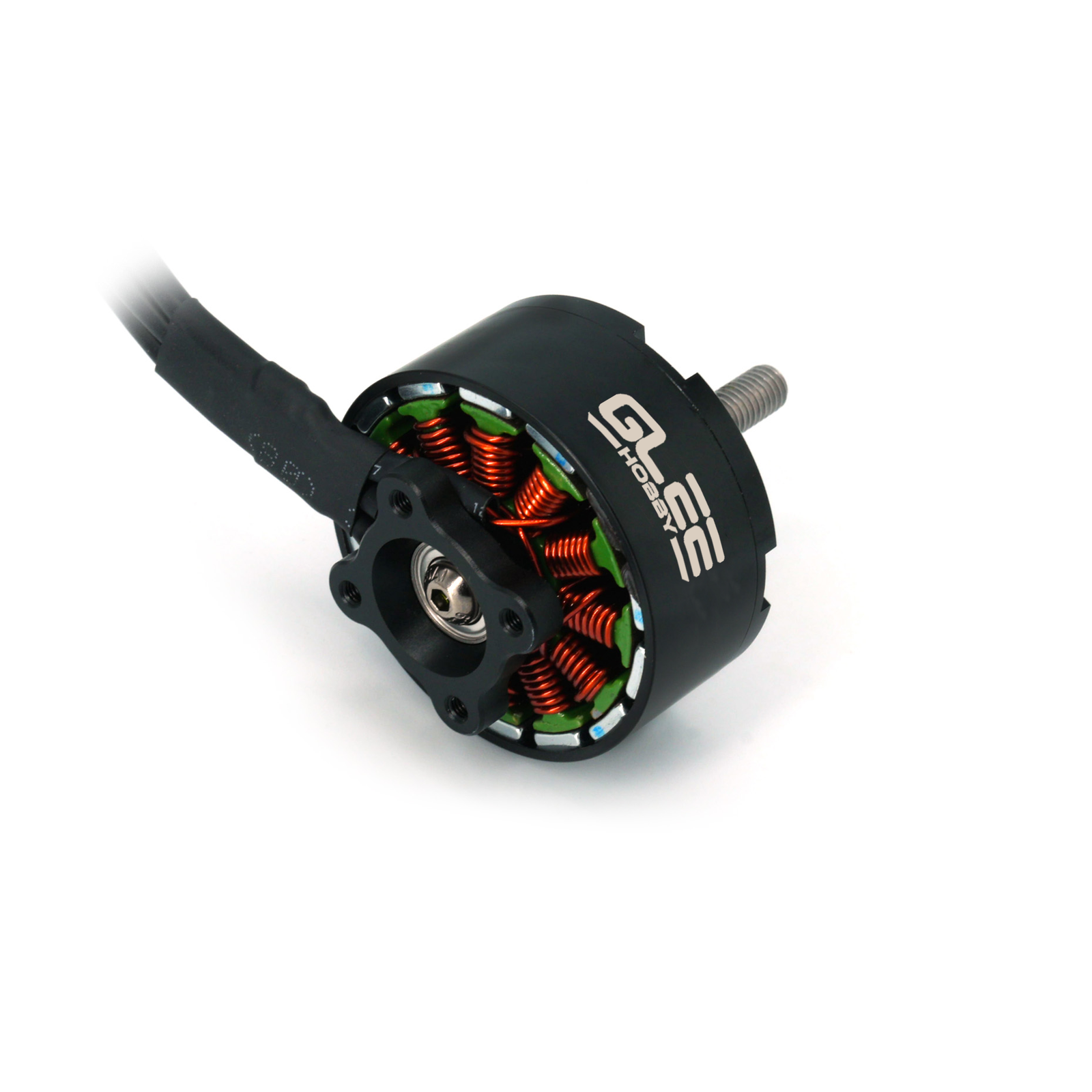

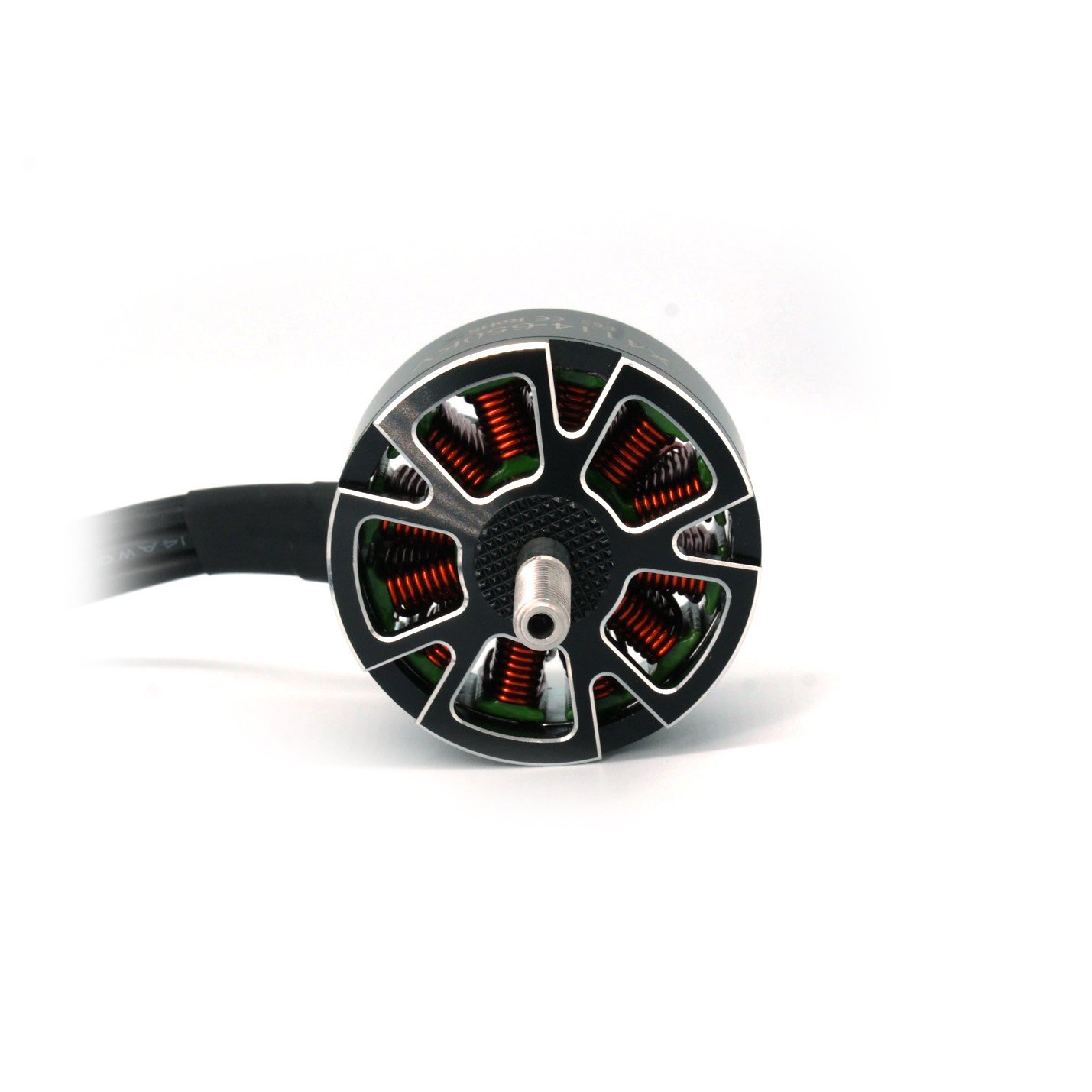

- This motor delivers excellent torque and power efficiency. The 41mm x 15mm stator ensures stable power delivery, ideal for drones with high payloads or demanding flight conditions.
- With a Φ48mm x 34mm form factor and weighing 206g (without wires), this motor is engineered for heavy-lift drones and industrial UAV applications. The larger motor size allows it to support larger propellers (10-14 inch), offering superior thrust for large, powerful drones.
- The motor supports a wide voltage range, compatible with 3-8S LiPo batteries, making it highly versatile for various drone applications, from high-speed flights to industrial use cases.
- Featuring low internal resistance (0.04 ohms for 400KV and 0.085 ohms for 650KV), this motor minimizes heat generation and power loss, enhancing efficiency and extending its operational lifespan during demanding flights.
- Ideal for drones with 10-14 inch propellers, this motor provides the necessary power and stability for both heavy-lift applications and fast, responsive flight performance.
Specifications
Configuration:12N 14P
Stator Diameter: 41mm
Stator Length:15mm
Shaft Diameter: 6
Motor Dimensions(Dia*Len): Φ48*34mm
Weight:206g (W/ o Wire)
4115 400KV
No.of Cells(Lipo):3-8S
Idle Current (10V): 1.4A
Max Continuous Current:40A (180S)
Max Continuous Power: 900W (180S)
Internal Resistance: 0.04
4115 650KV
No.of Cells(Lipo):3-8S
Idle Current (10V): 1.7A
Max Continuous Current: 98A (180S)
Max Continuous Power: 2300W (180S)
Internal Resistance: 0.085
