Features

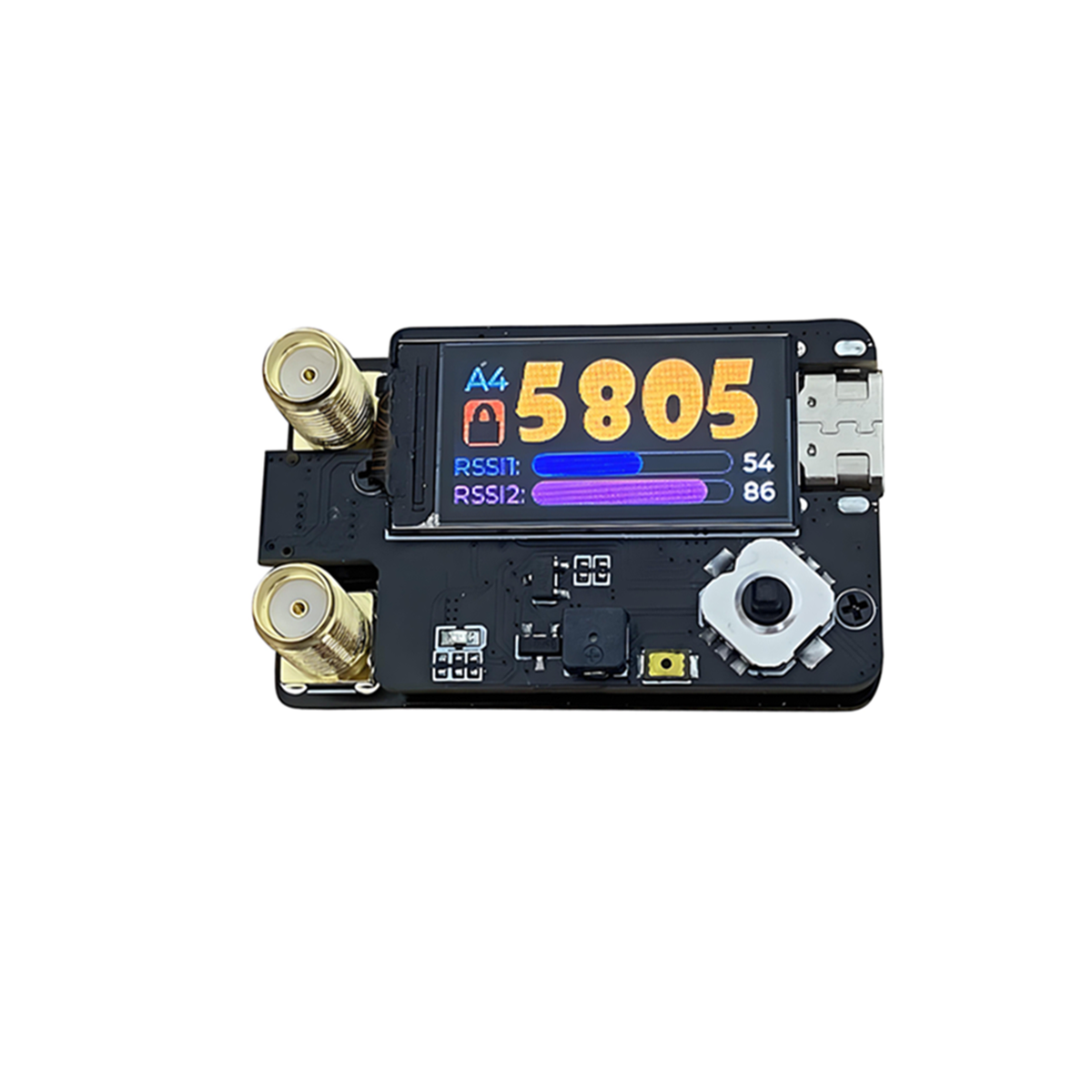

- In the main interface, you can lock/unlock the manual channel by long pressing the OK button, and enter the menu by short pressing the OK button; after unlocking, adjust the frequency by pressing the up, down, left, and right buttons.
- Use the up and down keys to switch menu options, the OK key to enter the submenu, and the left key to return to the main interface.
- The spectrum scan displays the signal strength of the frequency 5.3G-5.9G or 4.9G-6.1G. The spectrum scan display will display the channel signal strength with different color icons.
- The channel scanning function automatically searches for the best available frequency. After scanning, the receiver switches to the channel with the strongest signal, displayed conveniently in the upper right corner for immediate reference.
- Supports calibration of RSSI signals to ensure accurate signal strength display. Note: Image transmission must be active for successful calibration

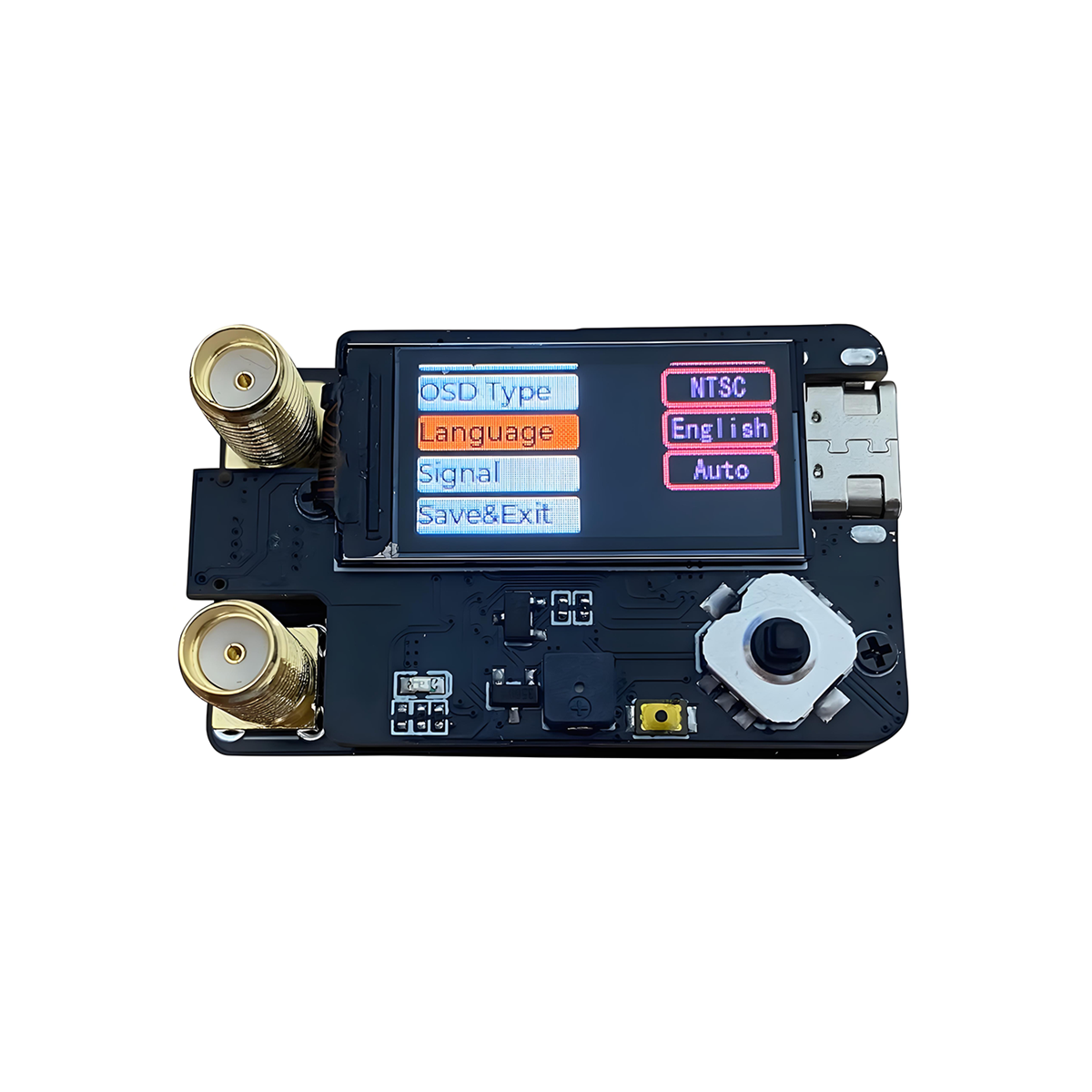

- Adjust settings like display backlight intensity, fan speed, startup animation, buzzer, OSD format, system language, and output signal source, providing tailored functionality for various user preferences..
- The receiver module can upgrade the firmware through the TYPE-C USB interface.
Specifications
- Receiving frequency:70CH (4867MHz to 6060MHz)
- Compatibility: Fatshark Dominator V1, V2, V3, HD1, HD2, HD3, HDO, HDO2; Skyzone 04L, 04X; DJI V1 V2 FPV Goggles (requires separate purchase of 5.8GRXPORT module).
- MCU：ESP32
- Screen: 0.96 TFTLCD
- Receiving Sensitivity: -98dbi
- Built-in Buzzer: Yes
- Working Voltage: 5V@450mA
- Antenna Interface: SMA /RP-SMA optional
- Dimensions: L42.4mm*W25.8mm*H20.5mm
- Weight: 22.5g
- Upgrade port: TYPE-C

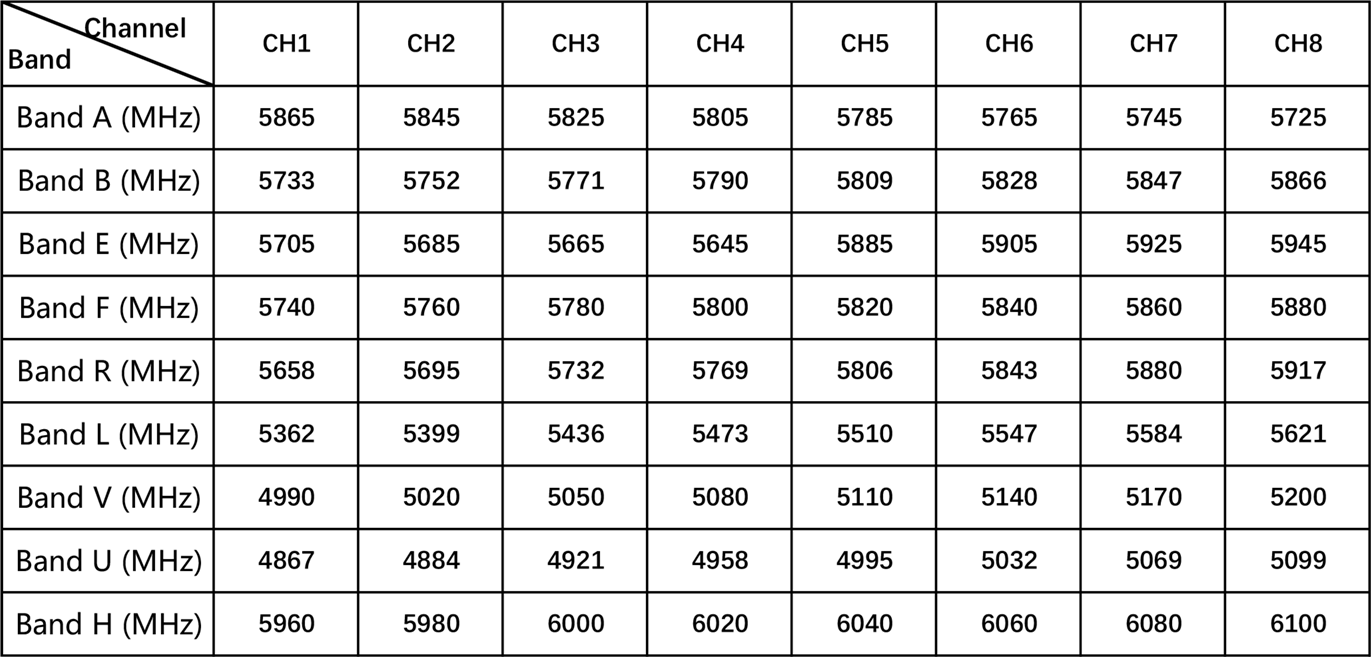

Frequency Table
Note: 6080MHz and 6100MHz reception stability is poor and are not available.
Package Included
- 1 X VRX
