Features
- Operates within a frequency range of 4990MHz to 5200MHz, supporting 8 channels. Users can easily adjust the channel by pressing a button, making it simple to select the optimal frequency.
- The VRX has auto-search function, long press the button to enter the auto-search mode and the receiver will search and lock the current working frequency point.
- The receiver is compatible with interchangeable receiver goggle&monitors, such as Skyzone and Fatshark FPV goggles. This compatibility providing greater flexibility and convenience.
- The receiver’s design allows for easy replacement and integration with different FPV goggles, enhancing the overall user experience and ensuring seamless compatibility with popular goggle brands.
Specifications
- Receiving frequency: 8CH (4990MHz to 5200MHz)
- Input voltage：DC 5V
- Current consumption: (380±40) mA@5V
- RX Sensitivity: -90dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Ouput Frequency Range: 100Hz-20000Hz
- RF Connector: SMA
- Weight: 15.6g ( W/ o antanna)

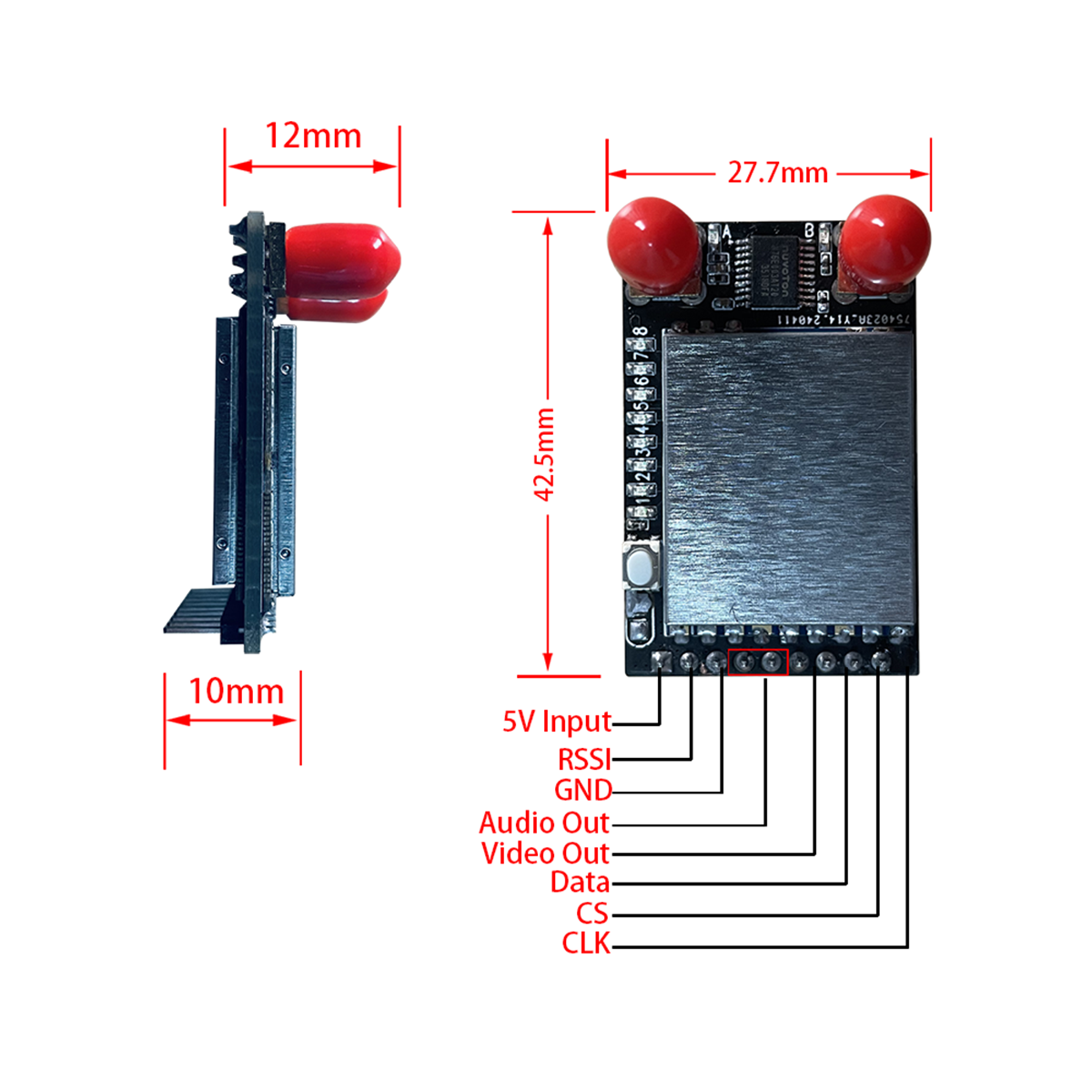

- Size: Board 42.5mm (L)*27.7mm (W)*20mm (H)
Receiving Frequency Table
Package Included
- 1 X 4.9GHz VRX
