Features
- Wide Frequency Range: With a receiving frequency range of 1120MHz to 1380MHz and 8 adjustable channels, users have flexibility in selecting channels to avoid interference and optimize signal reception.
- Button Control and LED Indicators: Each red LED corresponds to a different receiving frequency, providing clear visual feedback. Users can easily switch channels by short-pressing the button, with the corresponding LED lighting up to indicate the selected frequency.
- Power-off Memory Function: The receiver automatically saves the current receiving frequency after each switch. This ensures that when the power is reconnected, the receiver will resume operation at the previously set frequency, eliminating the need for manual adjustment.
- AV Output: The receiver supports AV output, allowing users to connect it to other screen devices using a video output cable. This enables real-time sharing of the received video feed on external screens, enhancing the FPV experience.
- Ultra Long Range: With stable and smooth video transmission performance, coupled with compatibility with high-power 1.2GHz VTX (Video Transmitter), this receiver is capable of achieving ultra-long-distance FPV flights. This feature is particularly beneficial for enthusiasts who require extended range capabilities in their FPV setups.
Specifications
- Receiving frequency: 8CH (1120MHz to 1380MHz)
- Input voltage：DC 7-36V
- Current Consumption:（ 280±40）mA @5V
- Button control and LED indicators
- On board regulator output: 5V 1A
- RX Sensitivity: -95dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)
- RF Connector: SMA
- Weight: 20g ( w/o antanna)

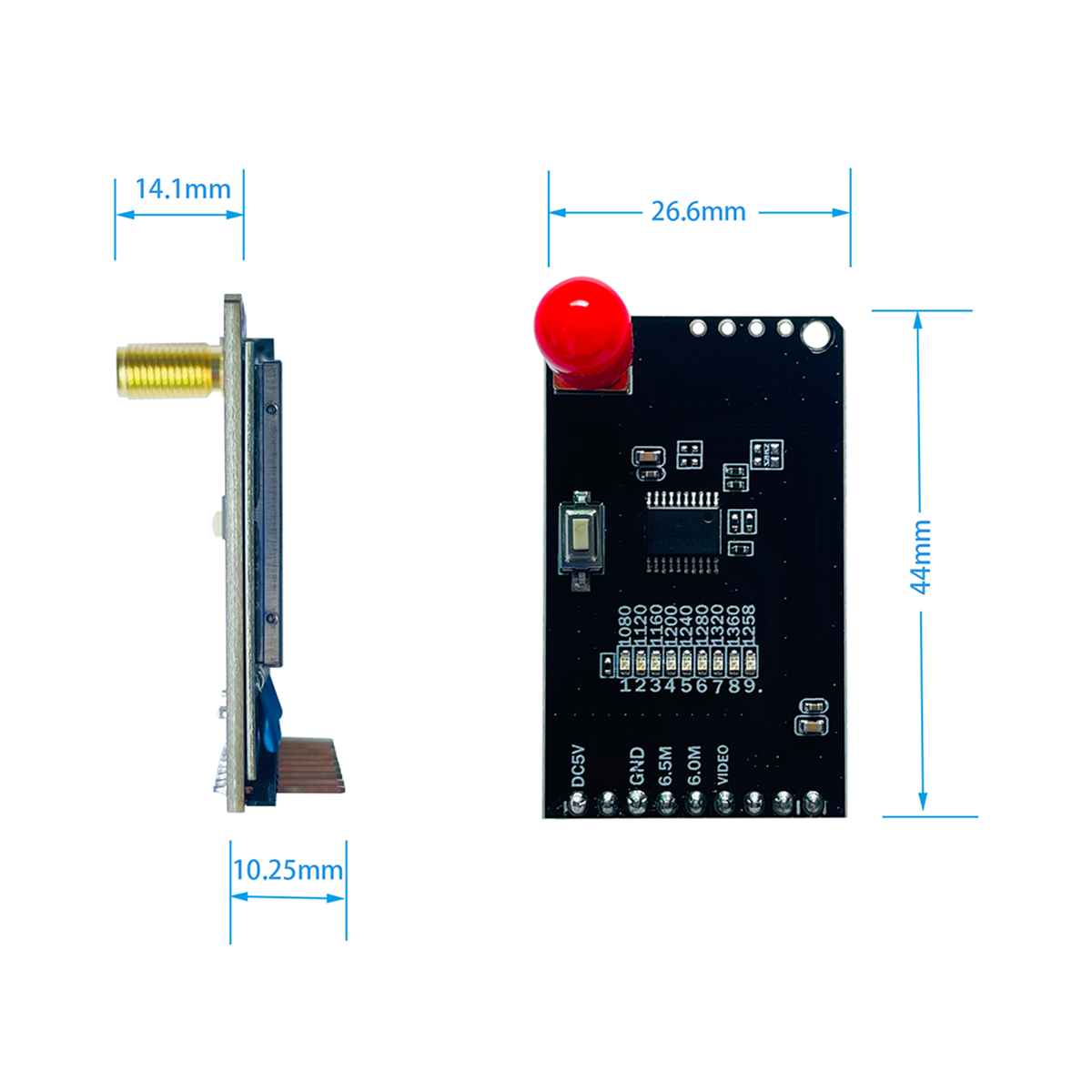

- Size: board 44mm (L)*27mm (W)*27mm (H)
Frequency Table

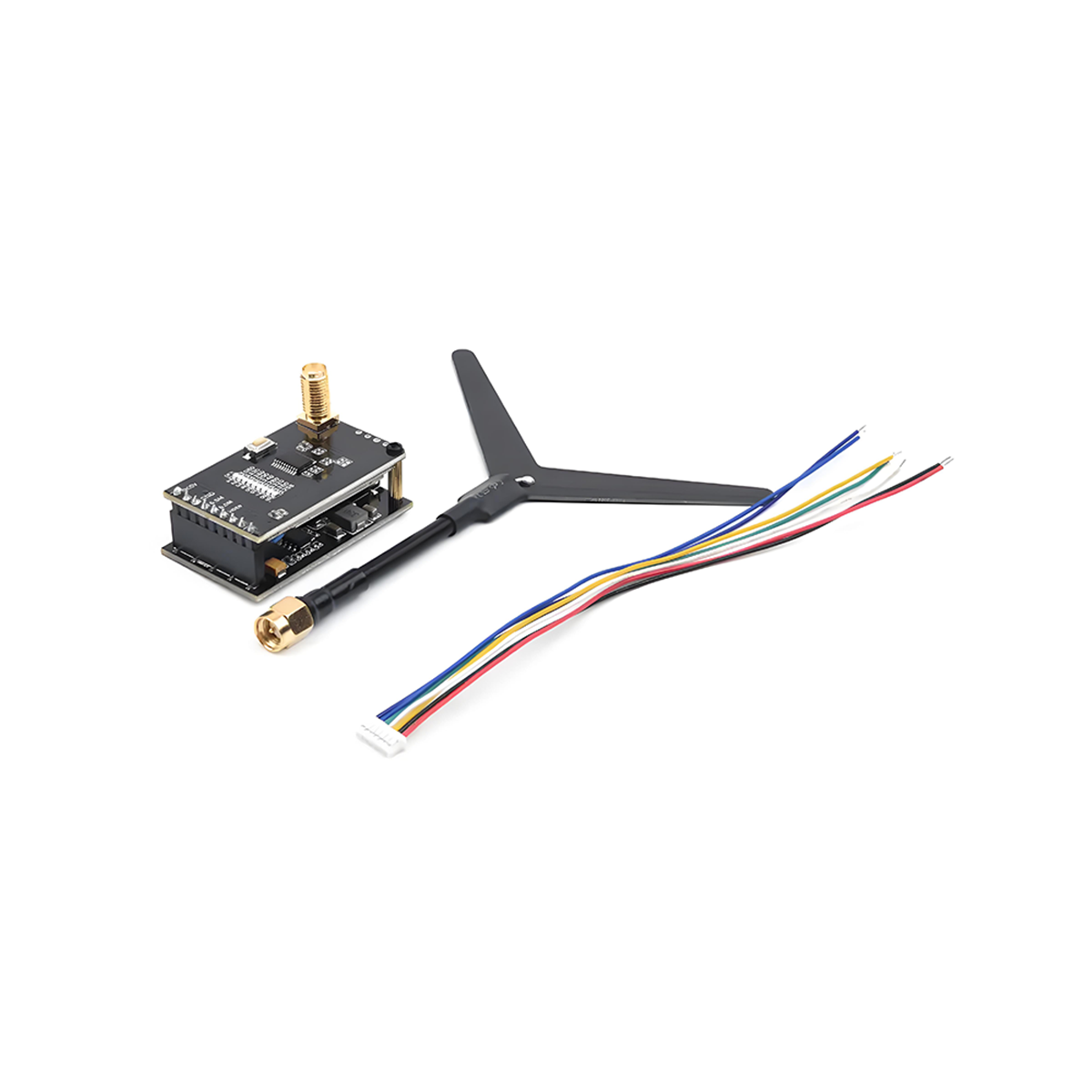

Package Included

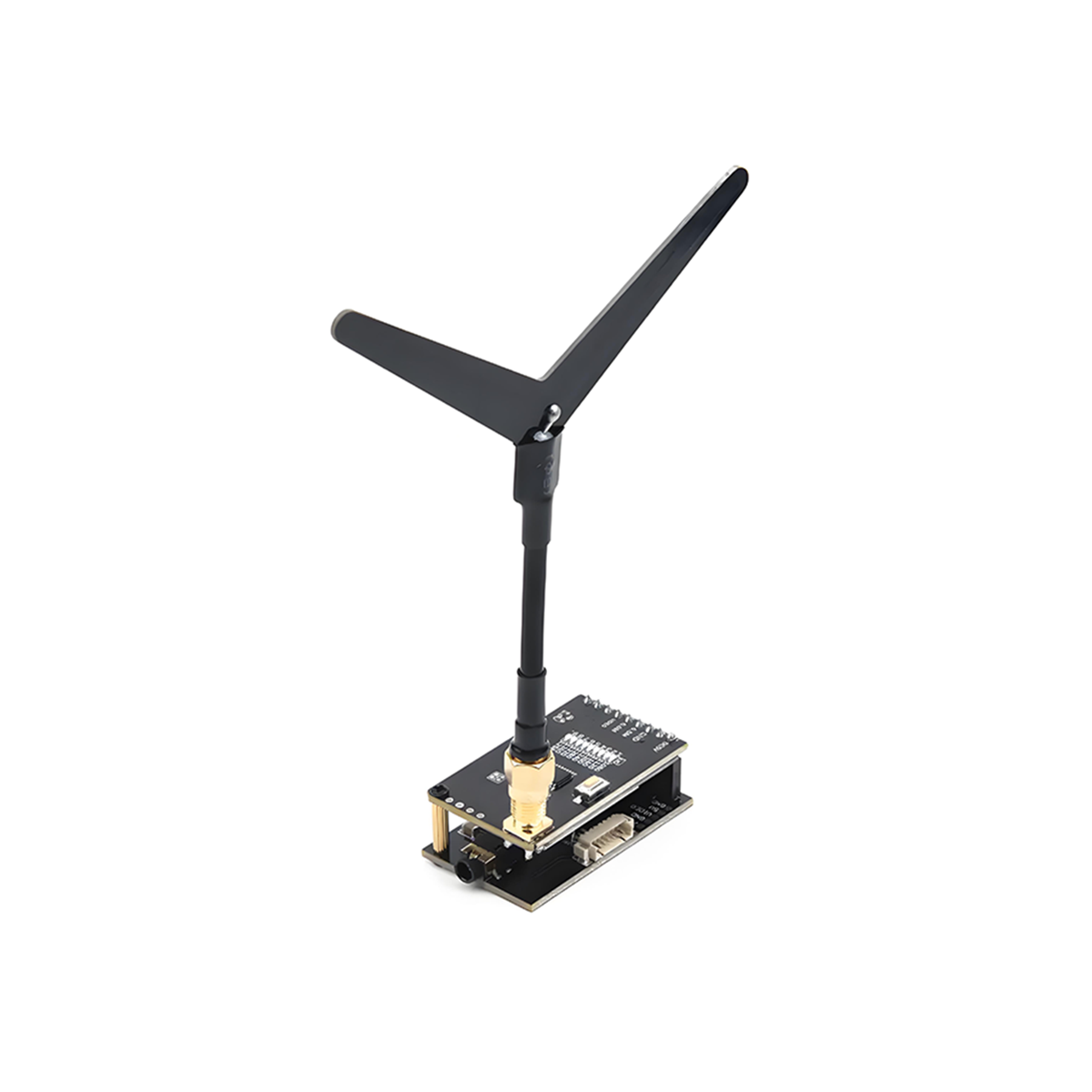

- 1 X 1.2GHz VRX

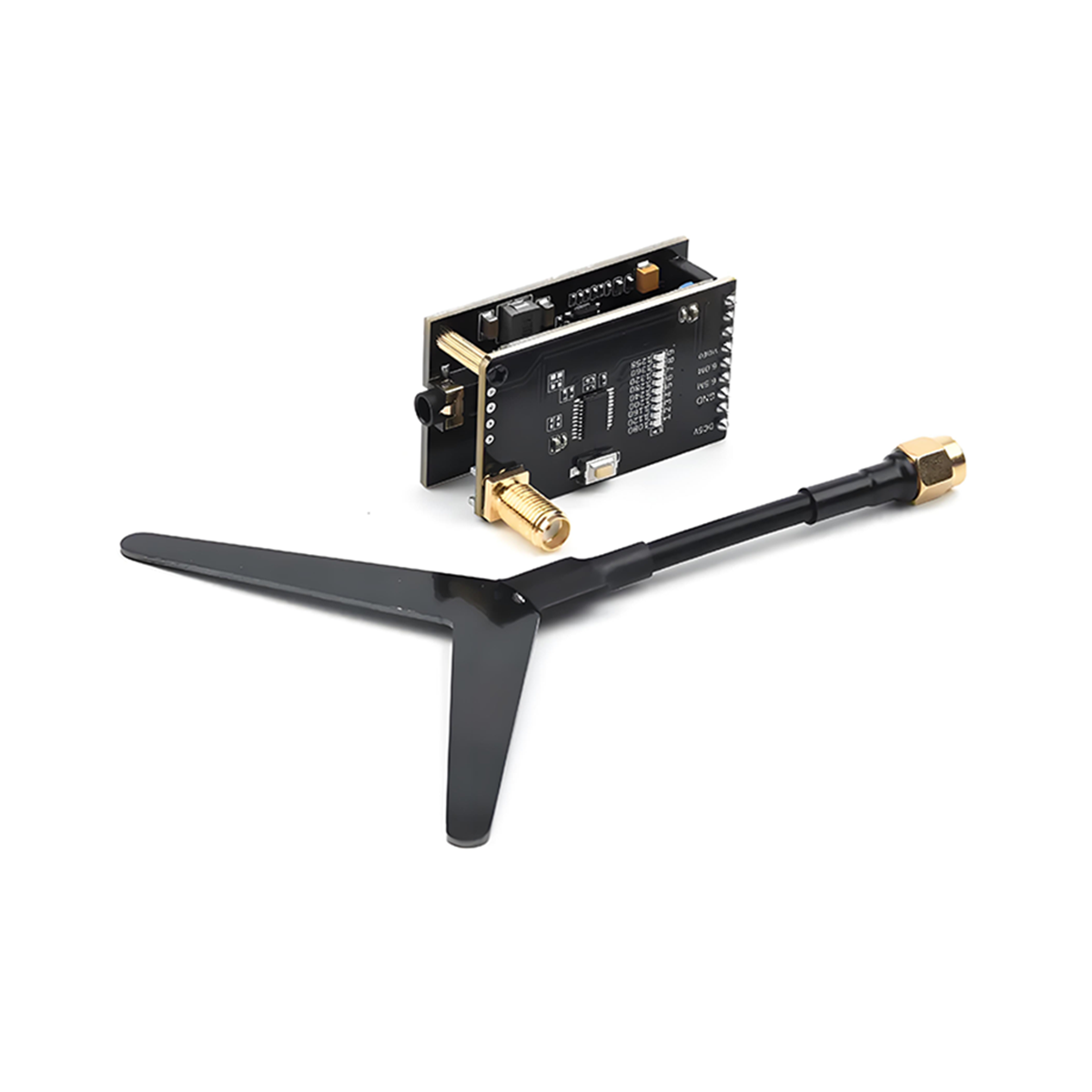

- 1 X “Y”Type Antenna
- 1 X Two-channel Video output cable
- 1 X 7P 1.25 single1 head cable
