Features
- Wide Frequency Range and Adjustable Channels: With a receiving frequency range of 1120MHz to 1380MHz and 8 adjustable channels, users have flexibility in selecting channels to optimize signal reception and avoid interference.

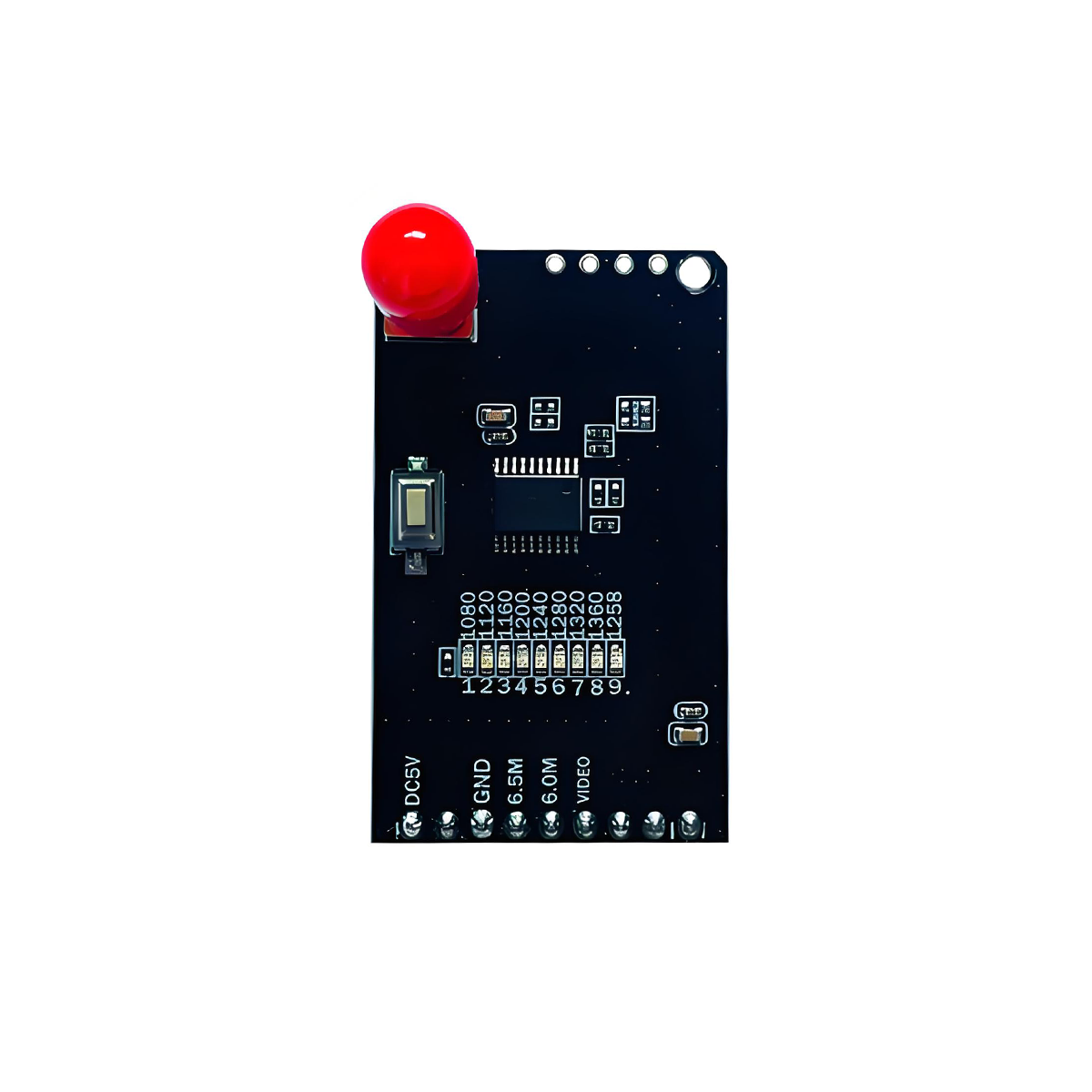

- Button Control and LED Indicators: Each red LED corresponds to a different receiving frequency, providing clear visual feedback. Users can easily switch channels by short-pressing the button, with the LED corresponding to the selected frequency lighting up for easy identification.
- Power-off Memory Function: After each frequency switch, the receiver automatically saves the current receiving frequency. This ensures that when the power is reconnected, the receiver will resume operation at the previously set frequency, eliminating the need for manual adjustment.
- Simple and Replaceable Design: The receiver is compatible with various interchangeable receiver goggle monitors, such as Jaribel 800D Pro, Skyzone, Fat Shark, and other FPV goggles. This compatibility ensures flexibility and ease of use, allowing users to integrate the receiver seamlessly into their preferred FPV setup.
Specifications
- Receiving frequency: 8CH 1120MHz to 1380MHz)
- Input voltage：DC 5V
- Current consumption: (280±40) mA@5V
- Button control and LED indicators
- RX Sensitivity: -95dBm
- Voltage Standing Wave Ratio: 2:1
- Demodulation System: FM/PLL
- ANT. input impedance: 50Ω, Typ.
- Video Output impedance: 75Ω, Typ.
- Audio Subcarrier Frequency: 6.0MHz (AR) 6.5 MHz (AL)
- RF Connector: SMA
- Weight: 12g ( W/o antanna)

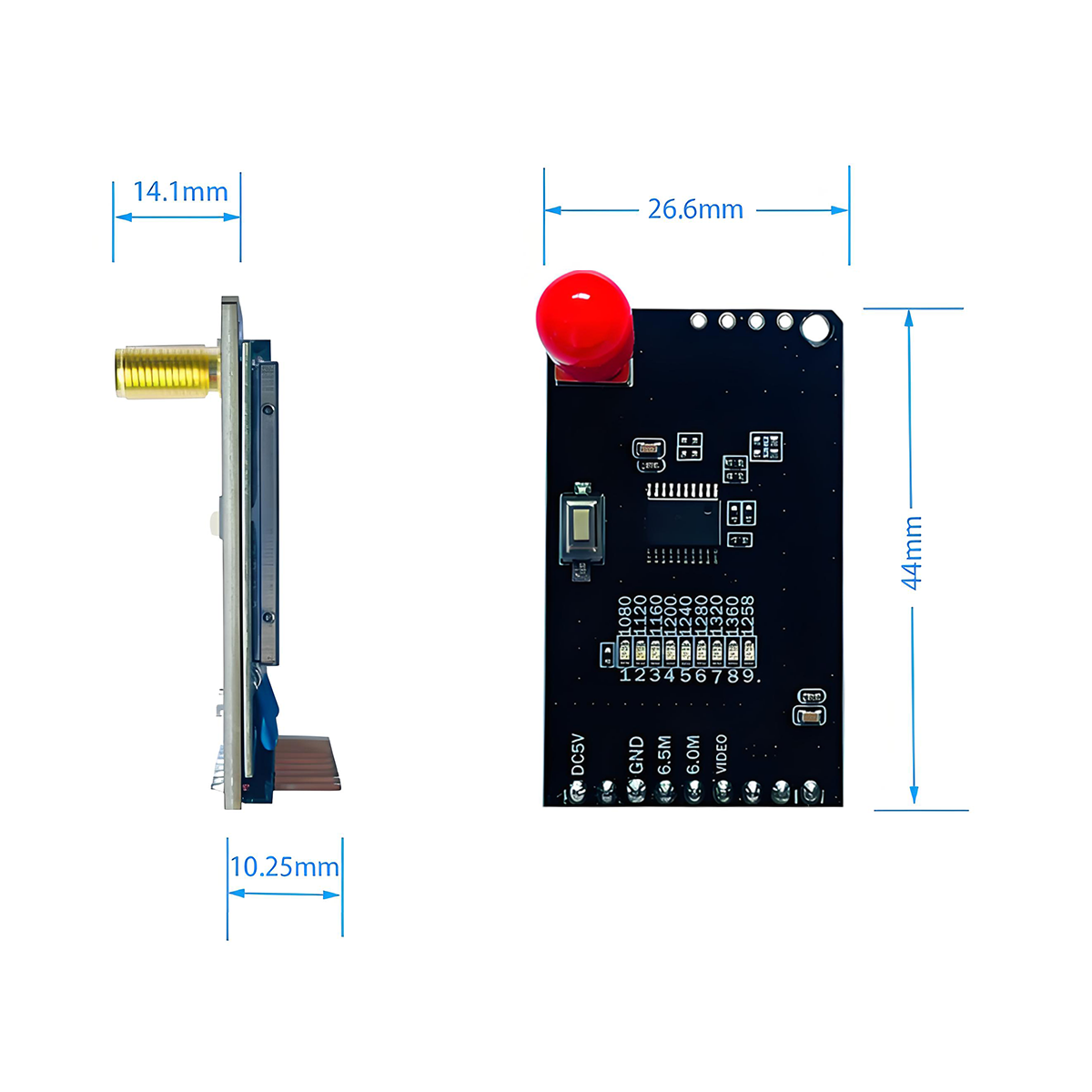

- Size: board 44mm (L)*27mm (W)*24mm (H)

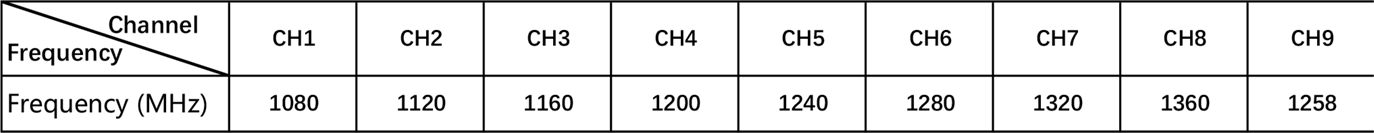

Frequency Table

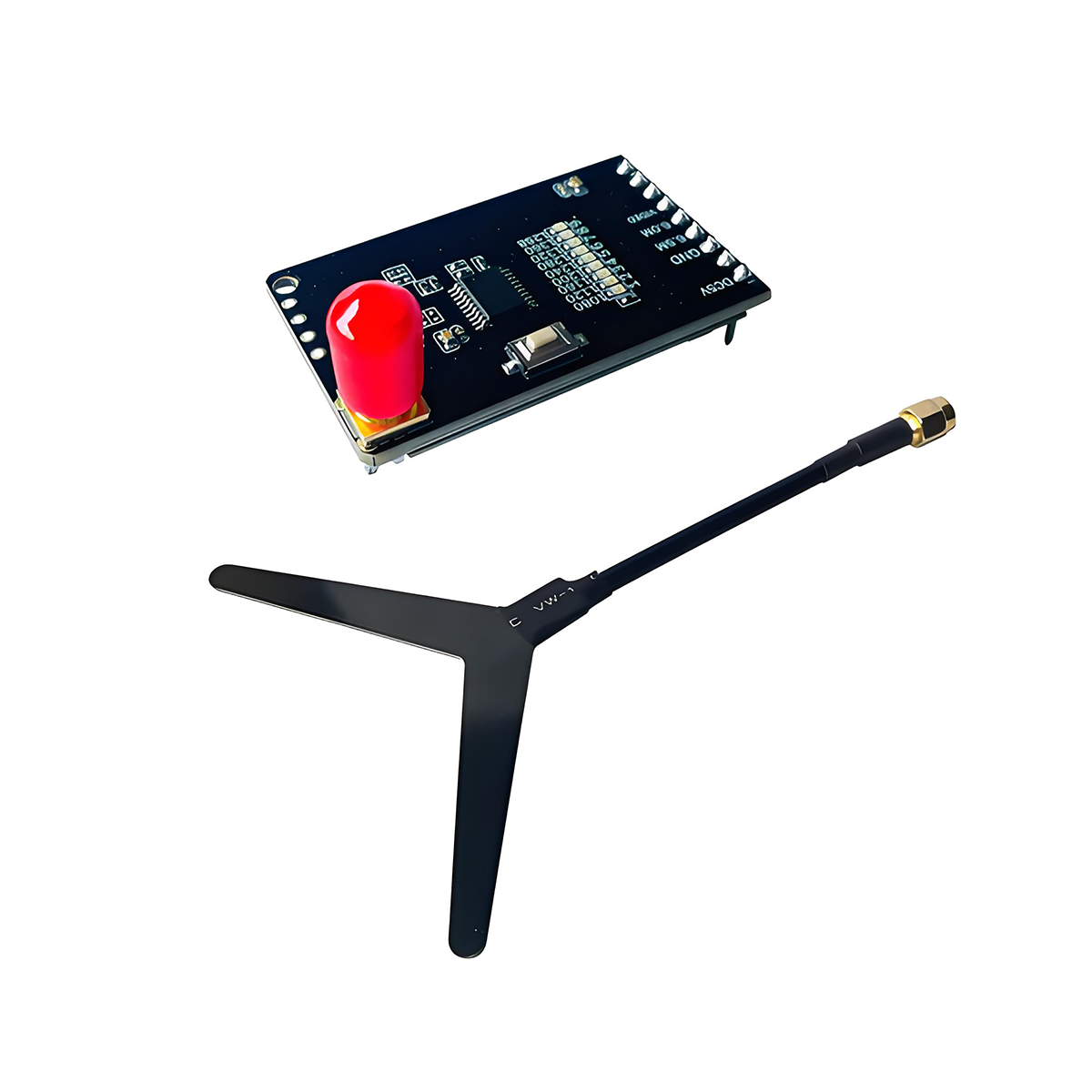

Package Included
- 1 X 1.2GHz VRX
- 1 X “Y”Type antenna
