Features
- Adjustable Transmitting Power: Users can choose from four power levels (PIT/25/400/800/1600mW), allowing for flexibility in power output based on flight requirements and regulatory constraints.
- IRC Tramp Support: The VTX supports IRC Tramp protocol, enabling users to easily adjust power, band, and channel settings, enhancing compatibility with various flight configurations and environments.
- Side LED Indicators and Button Interface: Intuitive LED indicators and a button interface provide easy status reading and adjustments, making operation straightforward and user-friendly.
- Wide Voltage Input: With support for a wide voltage input range of 7-36V DC, the VTX can directly accept power from 2S to 8S batteries, providing flexibility in power supply options.
- Frequency Range and Channels: Operating across a frequency range of 4990MHz to 5200MHz with 8 adjustable channels, the VTX offers flexibility in channel selection, allowing users to avoid interference and ensure stable video transmission.
- Built-in Microphone: The VTX includes a built-in microphone, enabling real-time transmission of the drone’s sounds. This feature enhances the immersive experience of FPV flying by providing audio feedback from the drone’s environment.
- Pit Mode: Pit mode reduces the VTX power to a minimum level, ensuring that the video feed is only visible to the pilot at close range. This feature helps prevent interference with other pilots and ensures privacy during setup and adjustments.
Specifications
- Input Voltage: 7-36V DC;2-8S
- Output Voltage: 5V 1A
- 12V Input Current: 180mA@Pitmode, 200mA@25mW, 330mA@400mW, 410mA@800mW, 620mA@1600mW
- Channels: 8CH (X:4990MHz-5200MHz)
- Power: PIT/25/400/800/1600 mW

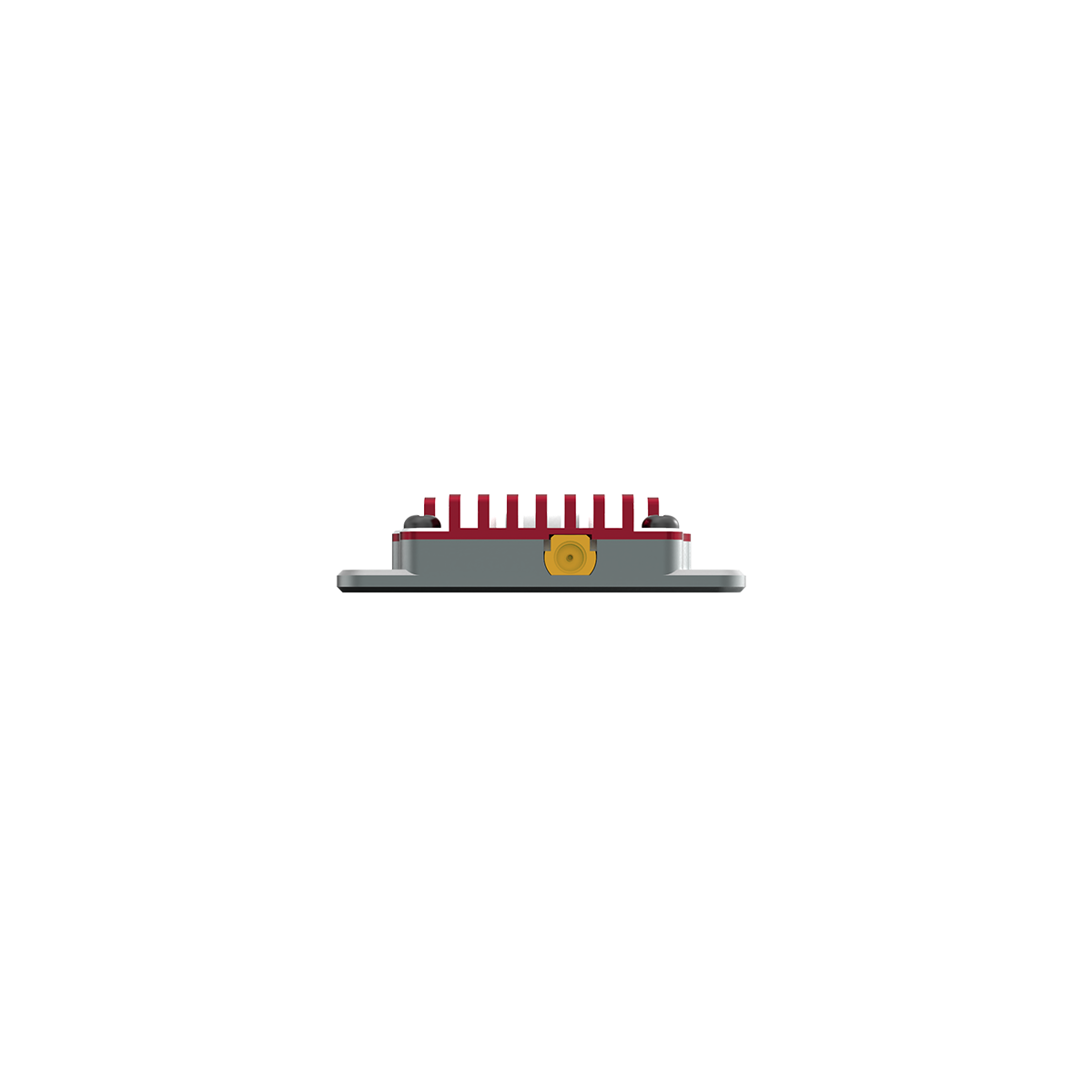

- Antenna Connector: MMCX
- VTX Protocol: IRC-tramp
- Material: Aluminum
- Dimensions: 37.7*36.1*9.5 mm; 30.5*30.5mm(Hole)
- Weight: 15.8g (W/ o Antenna)

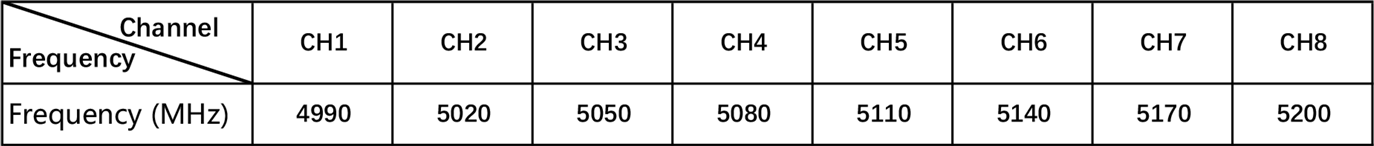

Frequency Table
Package Included
- 1 X 4.9 GHz VTX
- 1 X MMCX to SMA Cable
- 1 X 6 Pin 1.0 Harness
