Feature
- High-Torque 12N 14P Configuration with N52H Magnets: The 12N 14P configuration combined with N52H magnets ensures superior magnetic strength, offering better torque and smoother power delivery. This leads to enhanced control and flight performance, even under heavy load or extreme conditions.
- Larger Stator for Greater Power Efficiency: The 31mm x 15mm stator is designed for high efficiency and increased torque. This makes it perfect for heavy-lift drones or FPV models that demand high power output for stability, even at high speeds or in challenging environments.
- Efficient Low Internal Resistance: Featuring internal resistance as low as 0.024 ohms (1200KV), the motor minimizes energy loss and heat generation. This translates into better efficiency and longer motor life, even during high-power operations.
- Tailored to FPV Flight Styles: The 900KV motor is ideal for larger loads or long-distance flights where smooth power delivery and longer flight times are critical; 1050KV motors balanced for versatile flying styles, providing both speed and torque for racing or freestyle flying; 1200KV motors has superior high speed performance for aggressive, high rpm flying, perfect for fast-paced track racing or agile freestyle stunts.
- This motor is ideal for drones with 8-10 inch propellers, providing ample power and efficiency for a range of applications, from competitive FPV racing to freestyle and long-range exploration.
Specifications
Magnet:N52H
Configuration:12N 14P
Stator Diameter: 31mm
Stator Length:15mm
Motor Dimensions(Dia*Len): Φ37*45.3mm
Weight:150g (W/ o Wire)

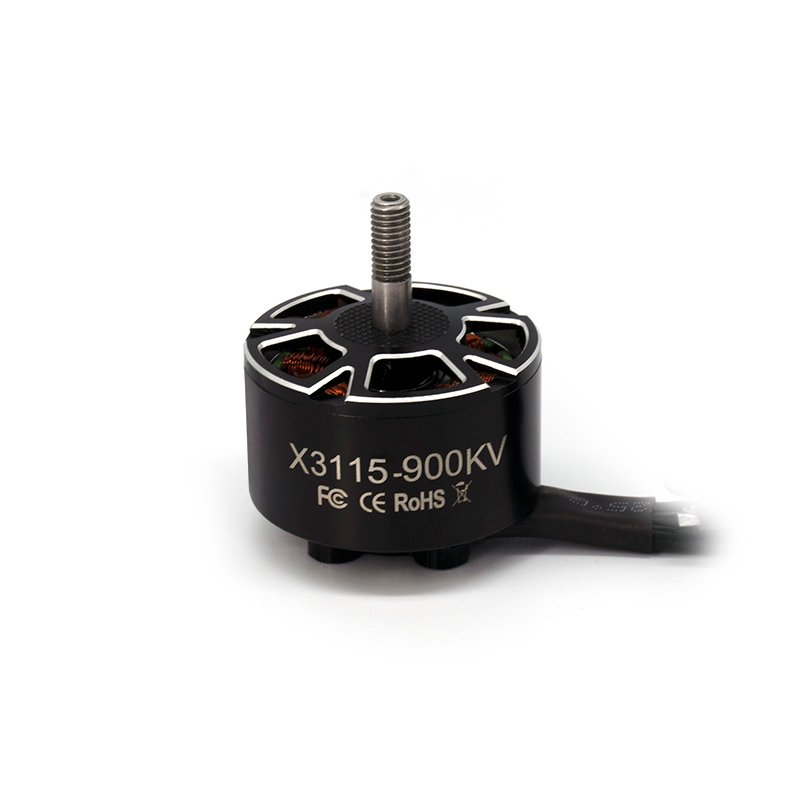

3115 900KV
No.of Cells(Lipo):6S
Idle Current (10V): 1.6A
Max Continuous Current: 41A (6S)
Max Continuous Power: 1025W (6S)
Internal Resistance: 0.052
3115 1050KV
No.of Cells(Lipo):6S
Idle Current (10V): 2.2A
Max Continuous Current: 58A (6S)
Max Continuous Power: 1450W (6S)
Internal Resistance: 0.033
3115 1200KV
No.of Cells(Lipo):6S
Idle Current (10V): 2.6A
Max Continuous Current: 90A
Max Continuous Power:2250W (6S)
Internal Resistance: 0.024
