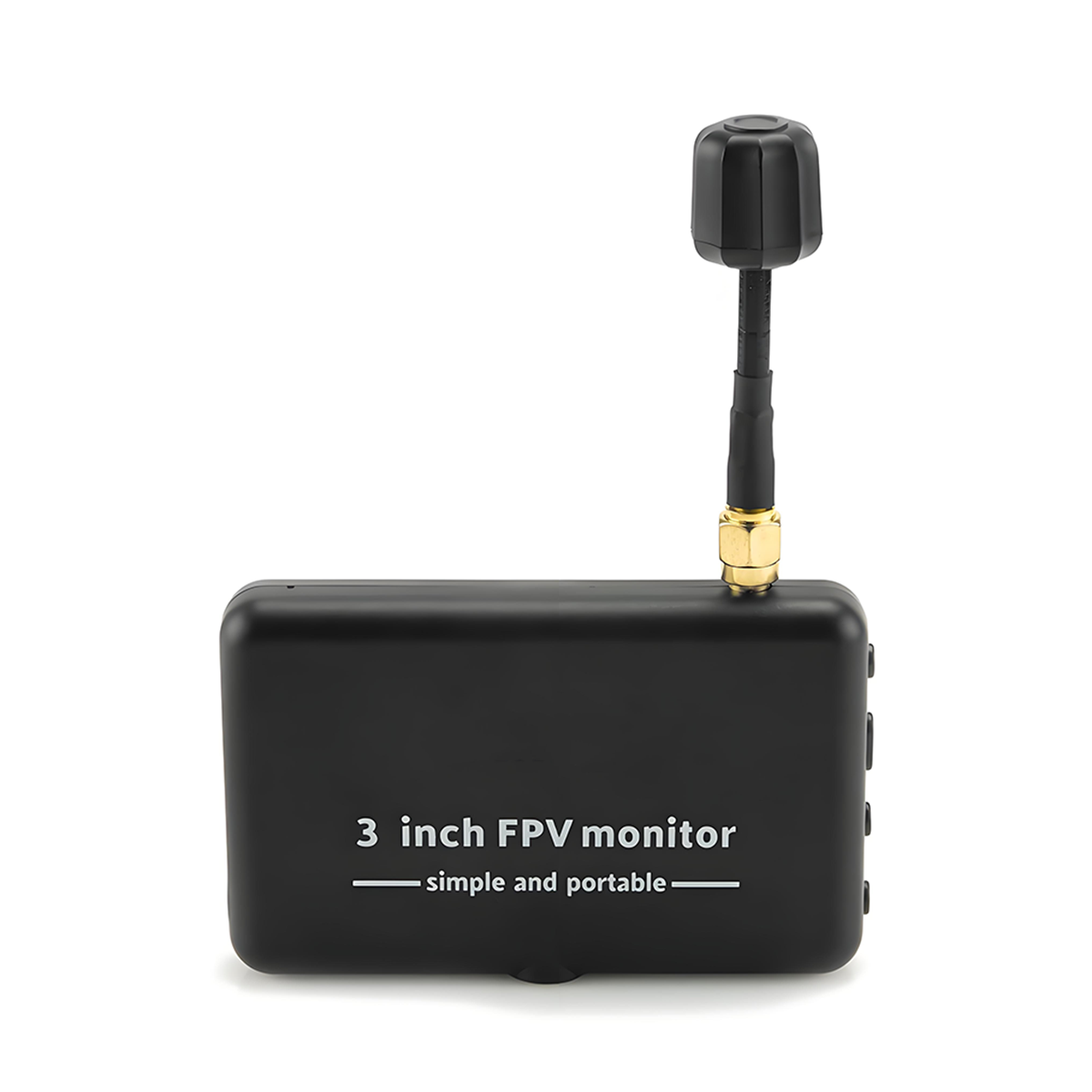

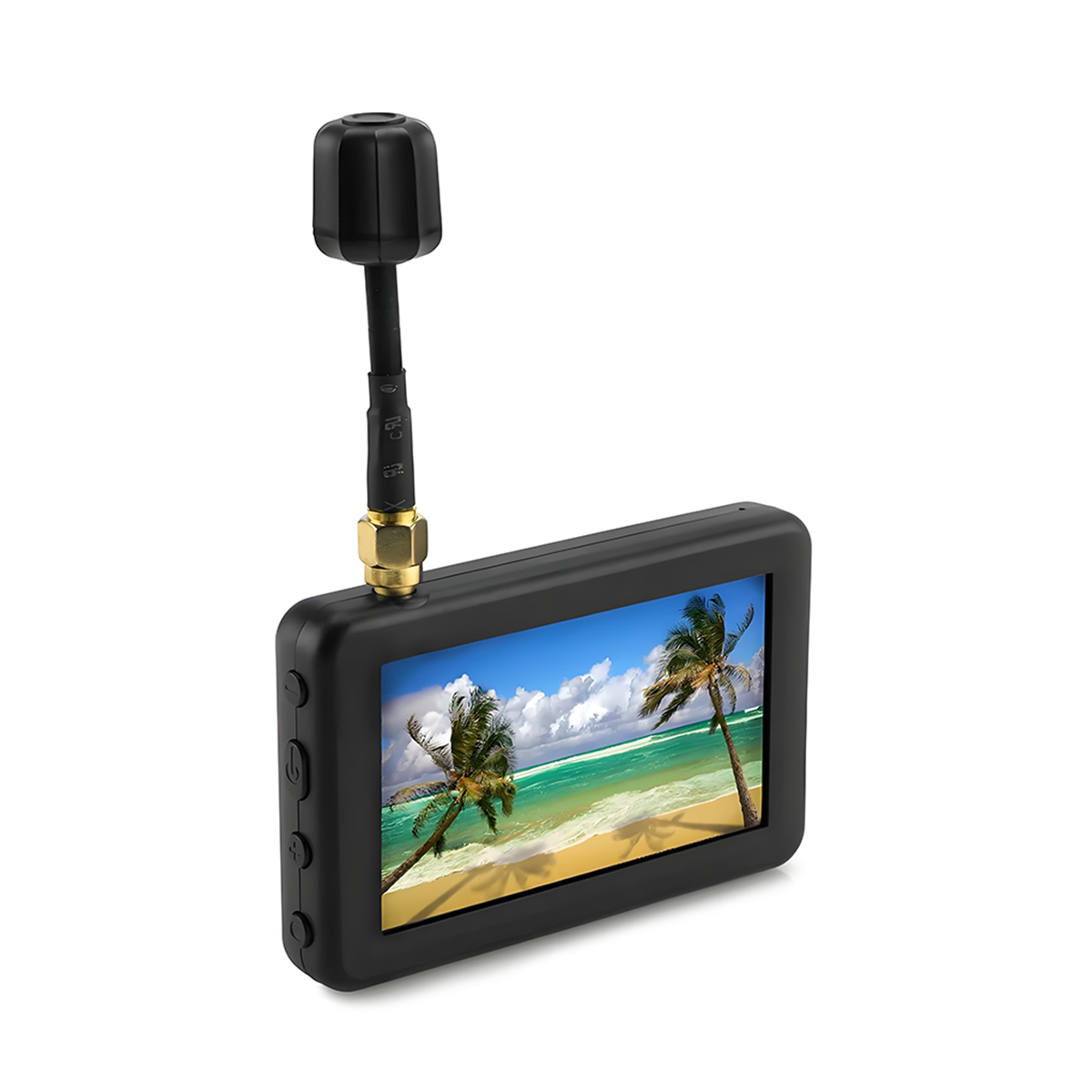

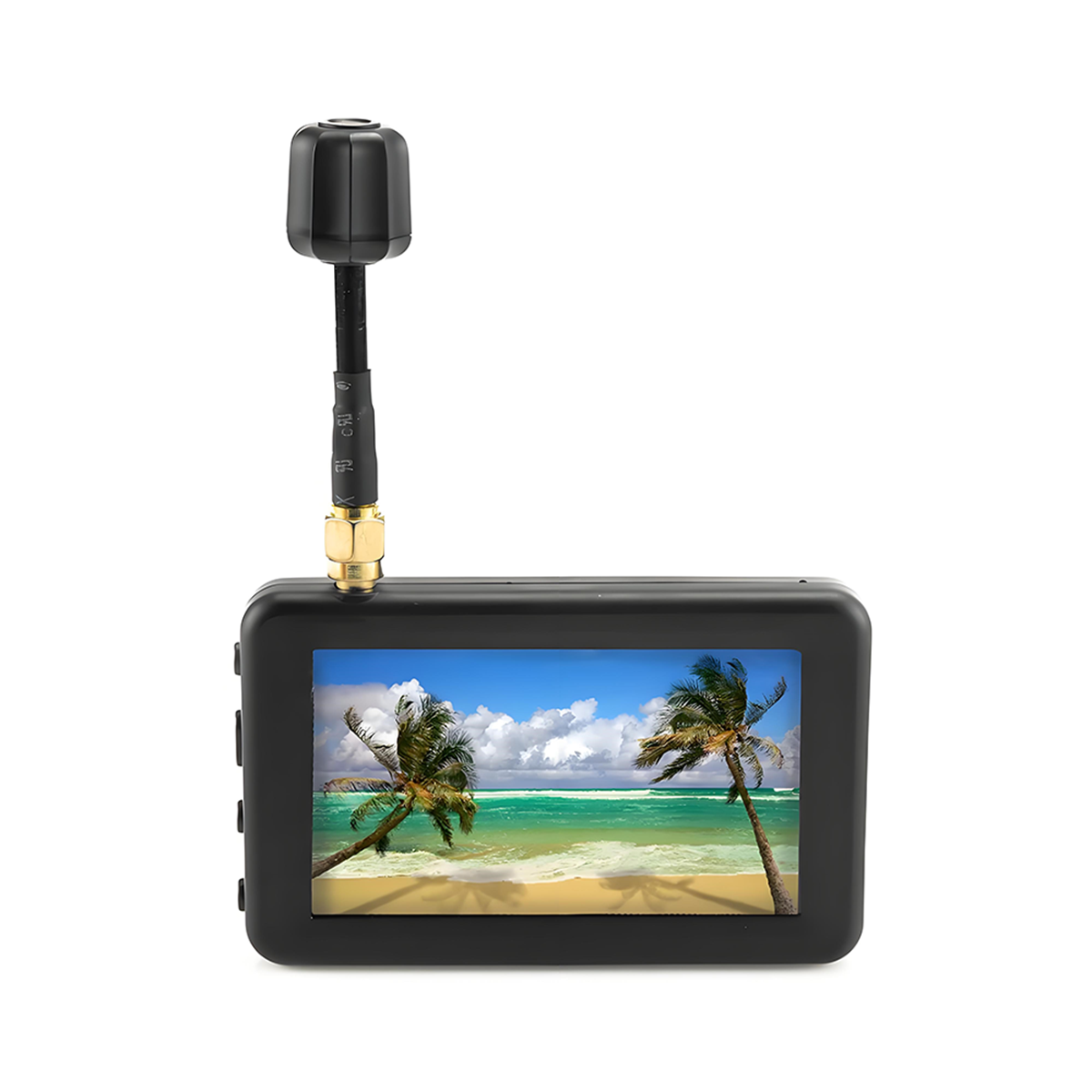

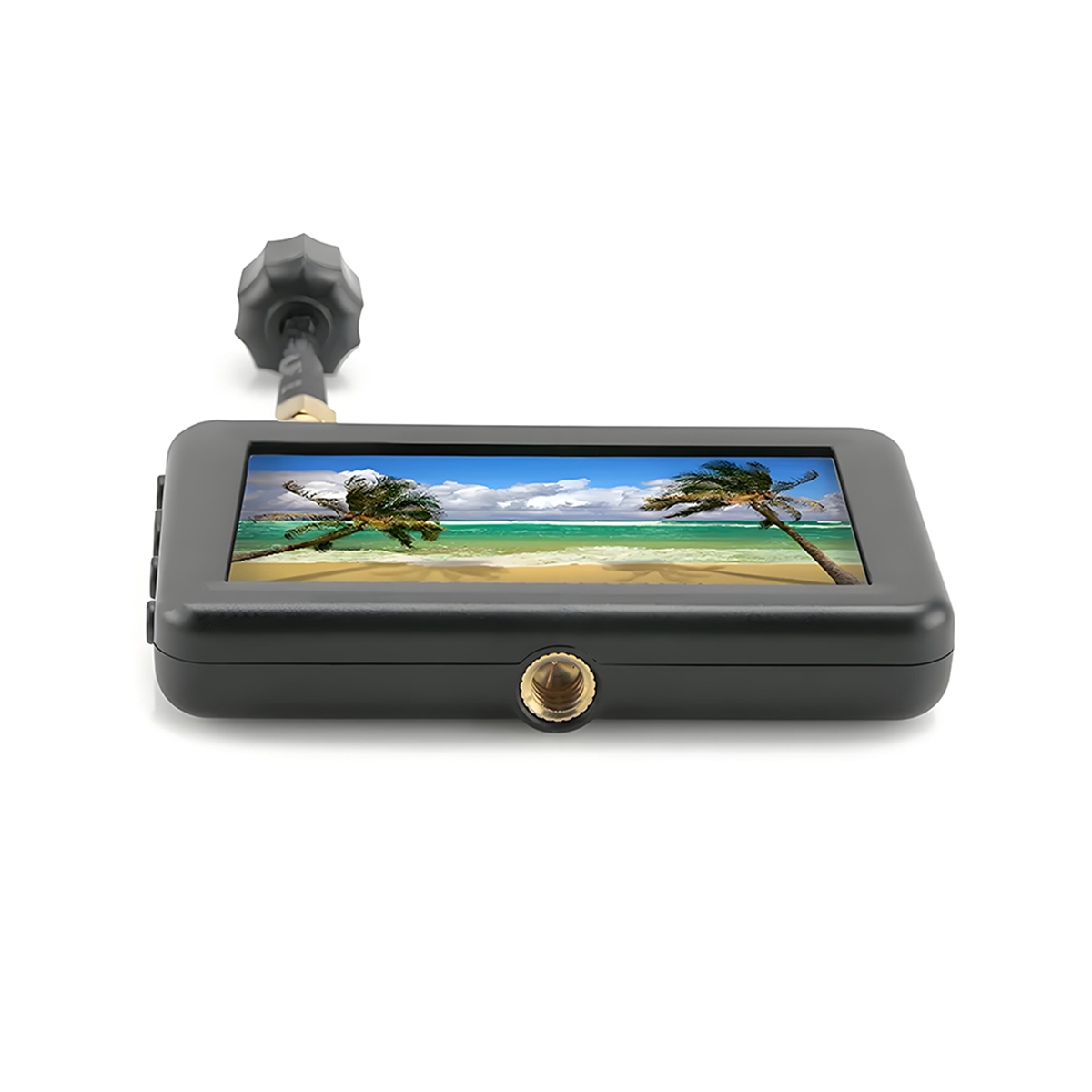

3 Inch 5.8G FPV Monitor LS-5804

LS-5804 Micro 3 Inch 5.8G 40CH FPV Monitor Mini Handheld Display 16:9 480×320 Auto Search Built-in Battery For RC FPV Drone

Original price was: $36.99.Current price is: $32.99.

- +
Features
  • Small Size and Light Weight: Designed for portability, making it easy to carry and handle.
  • Low Power Consumption: Efficient operation with a working current between 360mA and 400mA, extending battery life.
  • RaceBand 40 Channel Auto-Searching: Automatically searches and finds available channels, supporting up to 40 channels, including RaceBand.
  • 3.0-Inch High Brightness LCD Screen: Features a 480×320 resolution screen that provides clear and bright visuals.
    Super Sensitive 5.8GHz 40CH Receiver: Built-in receiver with high sensitivity, ensuring robust signal reception, especially with RaceBand support.
  • Built-in High-Capacity Battery: Equipped with a 3.7V 800mAh lithium-ion polymer battery, providing reliable power and long usage times.
    Universal USB Charging Interface: Allows for convenient charging through any standard USB port.
    Real-Time Video Return: Ensures very low time-delay, providing immediate feedback which is crucial for applications needing prompt response.
  • Bilingual Menu Support: Offers menu options in both Chinese and English, enhancing usability for a broader audience.
    External Video Signal Input: Supports external video sources, adding versatility to its usage.
    AV Signal Output: Allows connection to an external DVR, enabling additional recording and playback options.
Specification
  • Screen Size: 3 inch IPS
  • Resolution: 480*320
  • Frequency: 5645-5945MHz
  • Receiving: 40CH Support Auto-searching
  • Working Current: 360-400mA
  • Built-in Battery 3.7V/1200mAh
  • Charging: Micro-USB charging
  • Support external video signal input
  • Support AV signal output(connect external DVR)
  • Product Weight: 62.5g

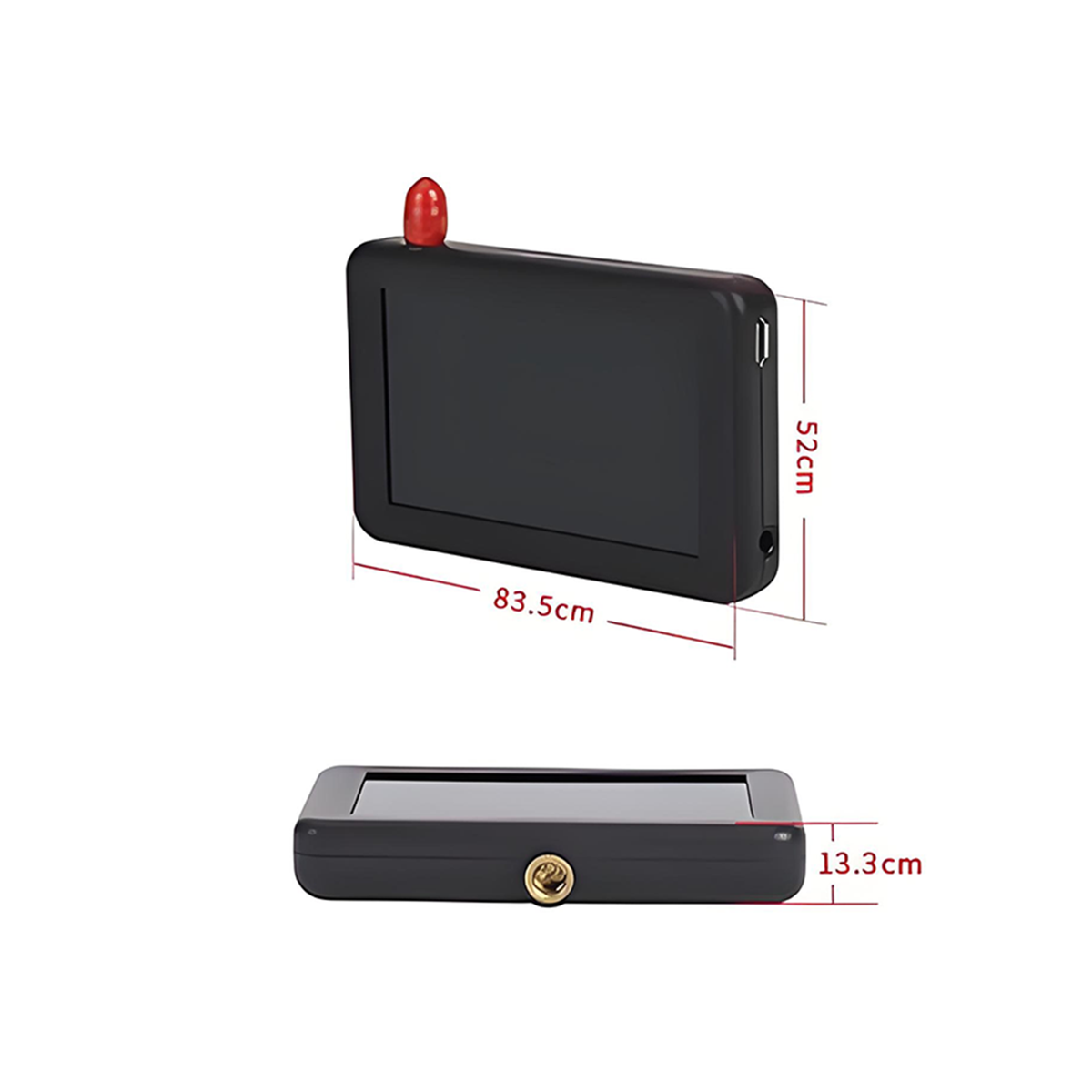

  • Product Size: 83.5(L)*52(W)*13.3(H)mm
  • Packing Size: 119*110*25mm
  • Packing Weight: 165.2g
Frequency Table
