Feature
- This motor is ideal for applications requiring compact and lightweight components, such as drones or RC vehicles.
- Compatible with 3-4S LiPo battery cells, providing flexibility for different power configurations.
- Available in two KV ratings: 2400KV and 2700KV, allowing users to choose between higher torque or higher speed, depending on their needs.
- With an internal resistance of 0.07 (2400KV) and 0.06 (2700KV), the motor minimizes energy loss and improves efficiency, enhancing overall performance.
Specifications
Configu Ration: NP
Stator Diameter: 22mm
Stator Length: 6mm

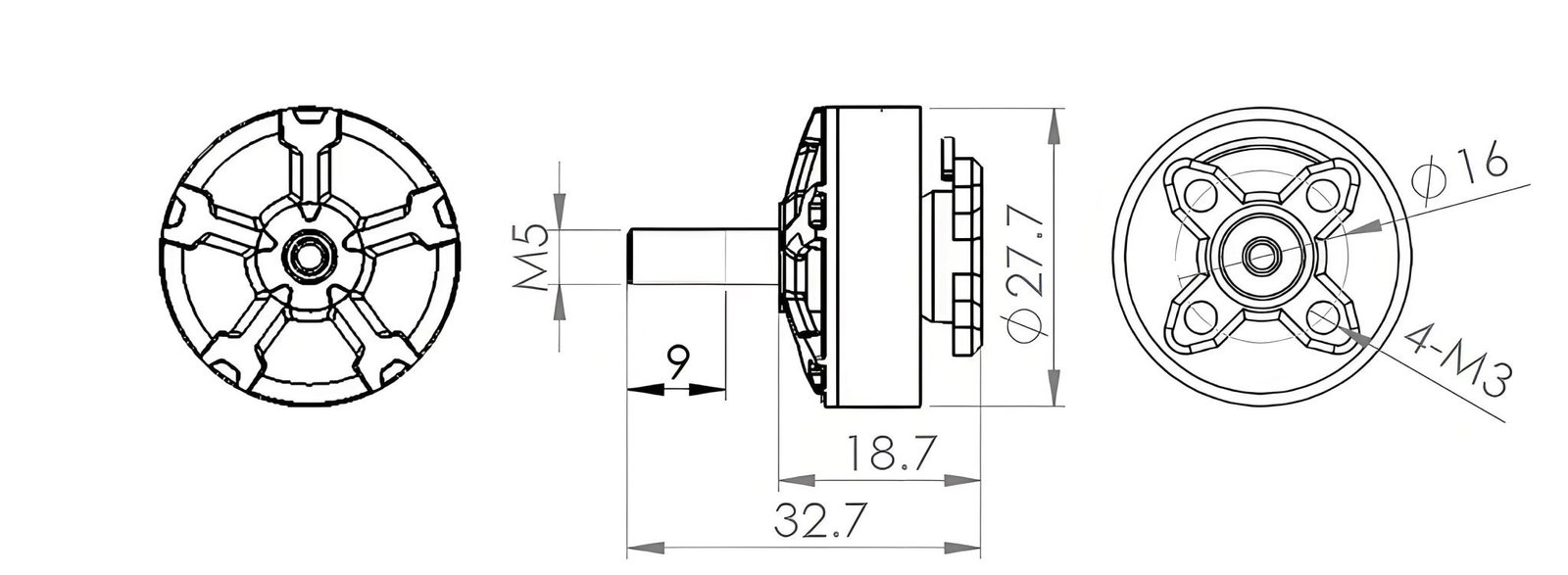

Motor Dimensions(Dia*Len): Φ27.7*18.7mm
Weight: 31.15g (W/ o Wire)
NO.of Cells: 3-4S
2206 2400KV
Max Continuous Current: 32.7A
Max Continuous Power: 523.2W
Internal Resistance: 0.07
2206 2700KV
Max Continuous Current: 43.2A
Max Continuous Power: 691.2W
Internal Resistance: 0.06
2400KV Motor
2700KV Motor
