Features
- Advanced Auto-Search Function: Quickly finds and displays the working frequency on screen for easy setup.
- Super HD DVR: Capable of recording up to full frame rate video with no frame loss, ensuring high-quality video capture (requires Class 10 card).
- Dual Core System: Features separate chipsets for display and recording, ensuring no delay in video display and no frame loss in recording, preserving important OSD information.
- True Diversity Reception: Utilizes two super-sensitive (-90dB) RX5808 PRO modules for robust and stable signal reception.
- Built-in High-Capacity Battery: Equipped with a 3.7V 2000mAh lithium-ion polymer battery, offering up to 2 hours of continuous use, perfect for extended flying sessions.
- Bright 5-Inch LCD Screen: The 800×480 resolution screen is specially tuned for FPV racing, providing clear and bright visuals.

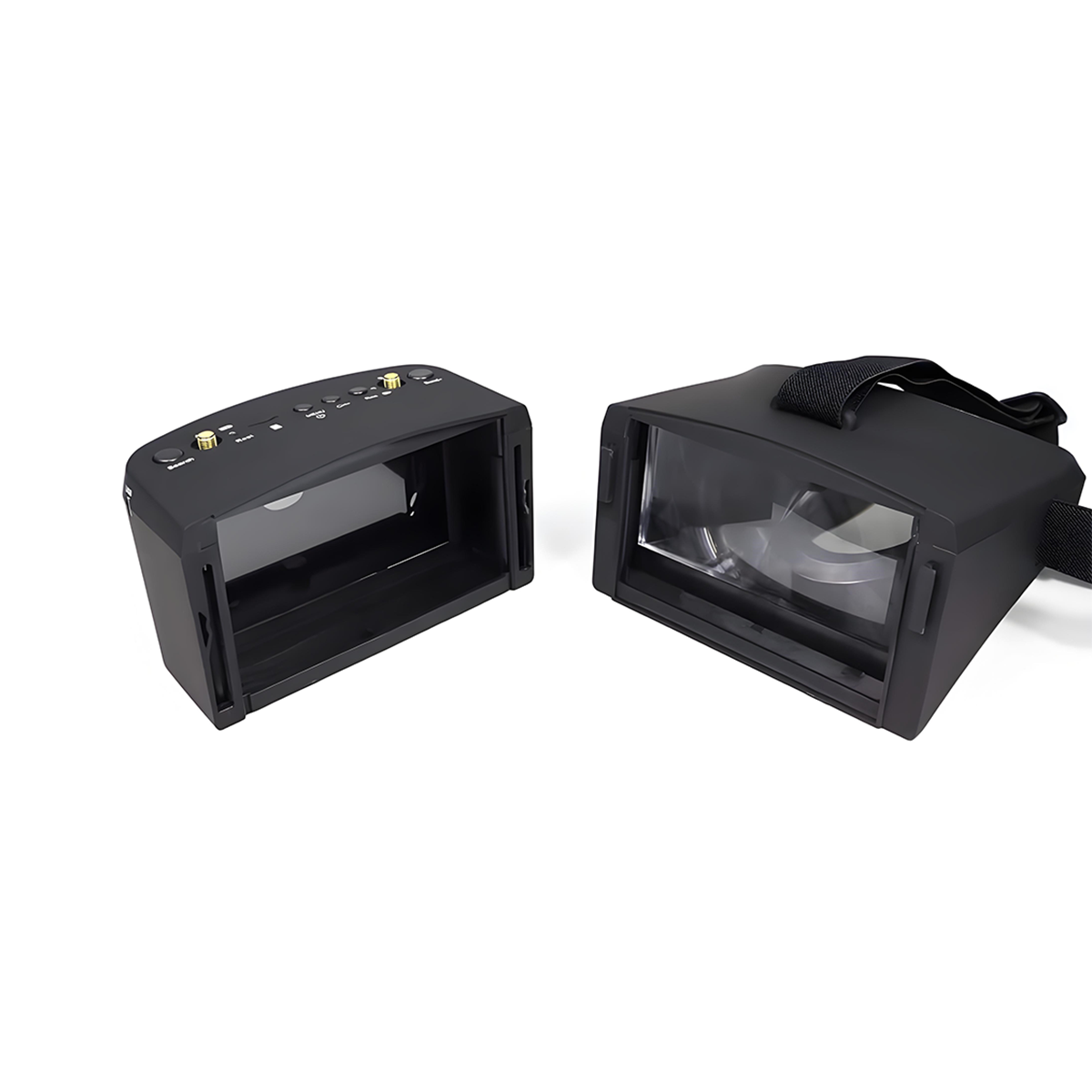

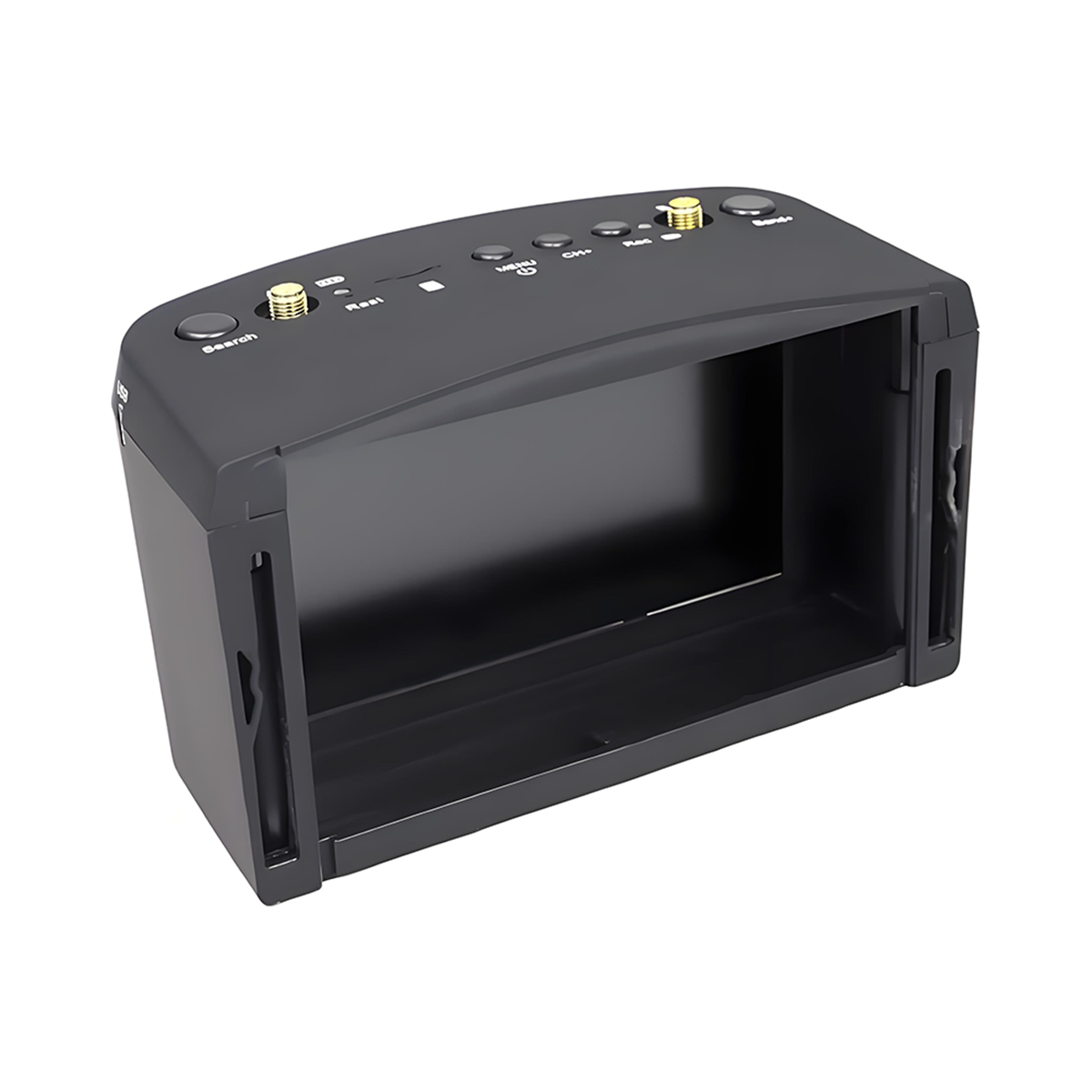

- Separable Design: The screen can be detached and used as a small monitor on a radio controller or mounted on a tripod, offering versatility in usage.
- High Transparency Lens: The 92% transparent 3x lens enhances video quality, providing an immersive view without distortion or blur.
- Super-Wide Viewing Angle: Features a viewing angle of up to 82 degrees, enhancing the immersive experience.
- 40 Channels with Race Band: Supports multiple channels, including Race Band, for greater compatibility and flexibility.
- Dual Antenna Reception: Optimized performance when using both linear and omni antennas, ensuring stable and reliable signal reception.
- Built-in DVR: Records video up to 720×576 full frame rate with no frame loss, ensuring all critical moments are captured (Class 10 card required).
Specifications
- Screen Size: 5″
- Screen Resolution: 800×480 (No blur after enlarge by the lens)
- Screen Brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
- Ratio: 16:9, 4:3
- View Angle: 140/120 degree(Horizontal/Vertical)
- RF Modules: 2x (-90dB) RX5808 PRO modules
- Battery: Built-in 7.4V 1200mAh Battery
- Input Voltage: 10-22V typical recharging voltage is 12V, 2S or 3S (7.4V-11.1V) LiPo can be used as backup power to have a long working time.
- Charger : 12V,2A, DC 2.5mm
- Dimension: 180*145*82mm
- Weight: 362g without antenna

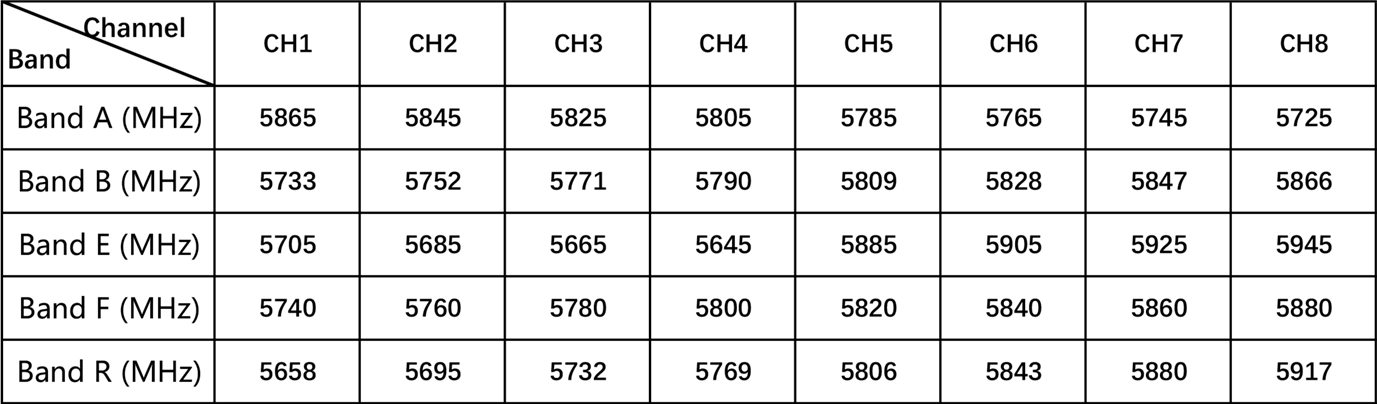

Frequency Table

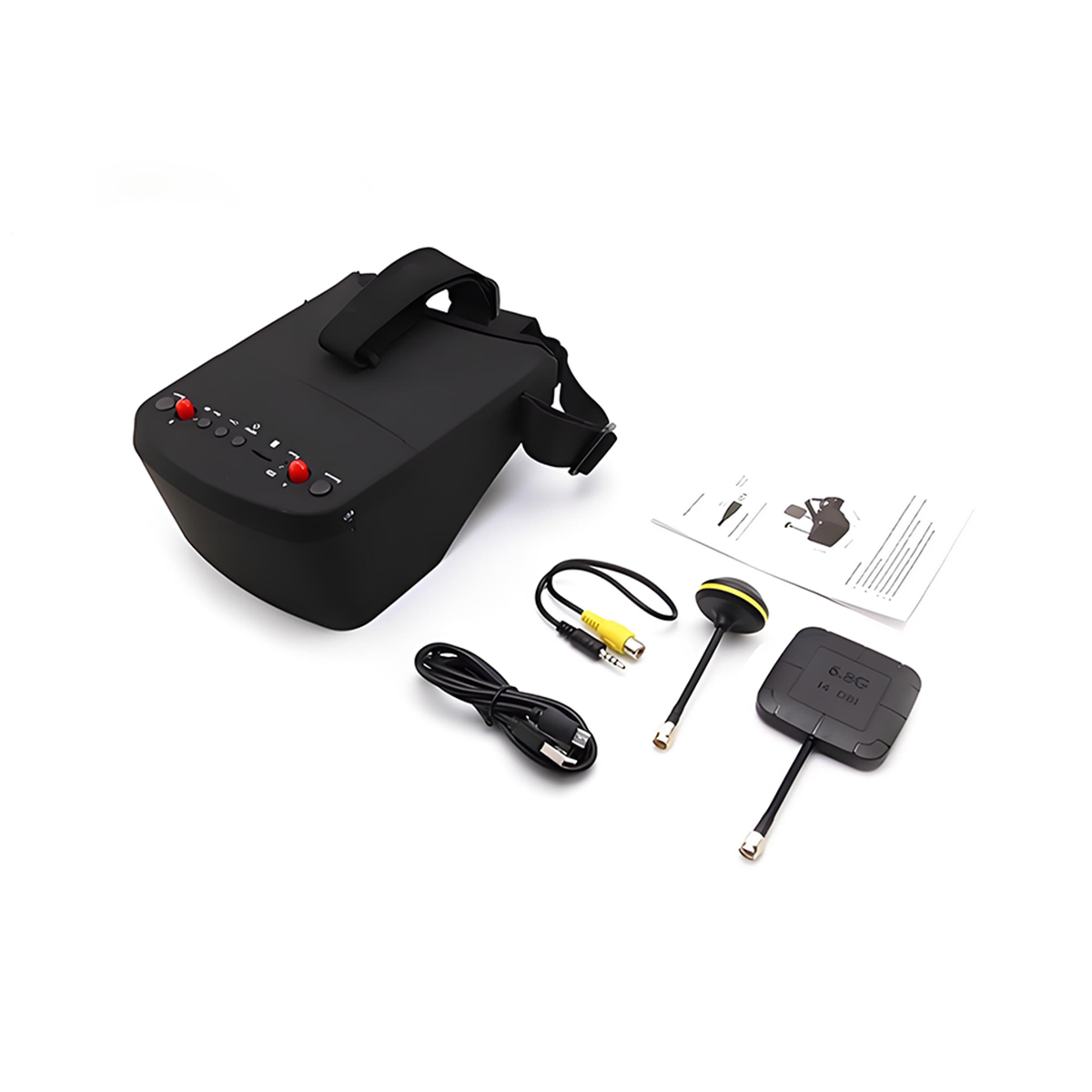

Package Included

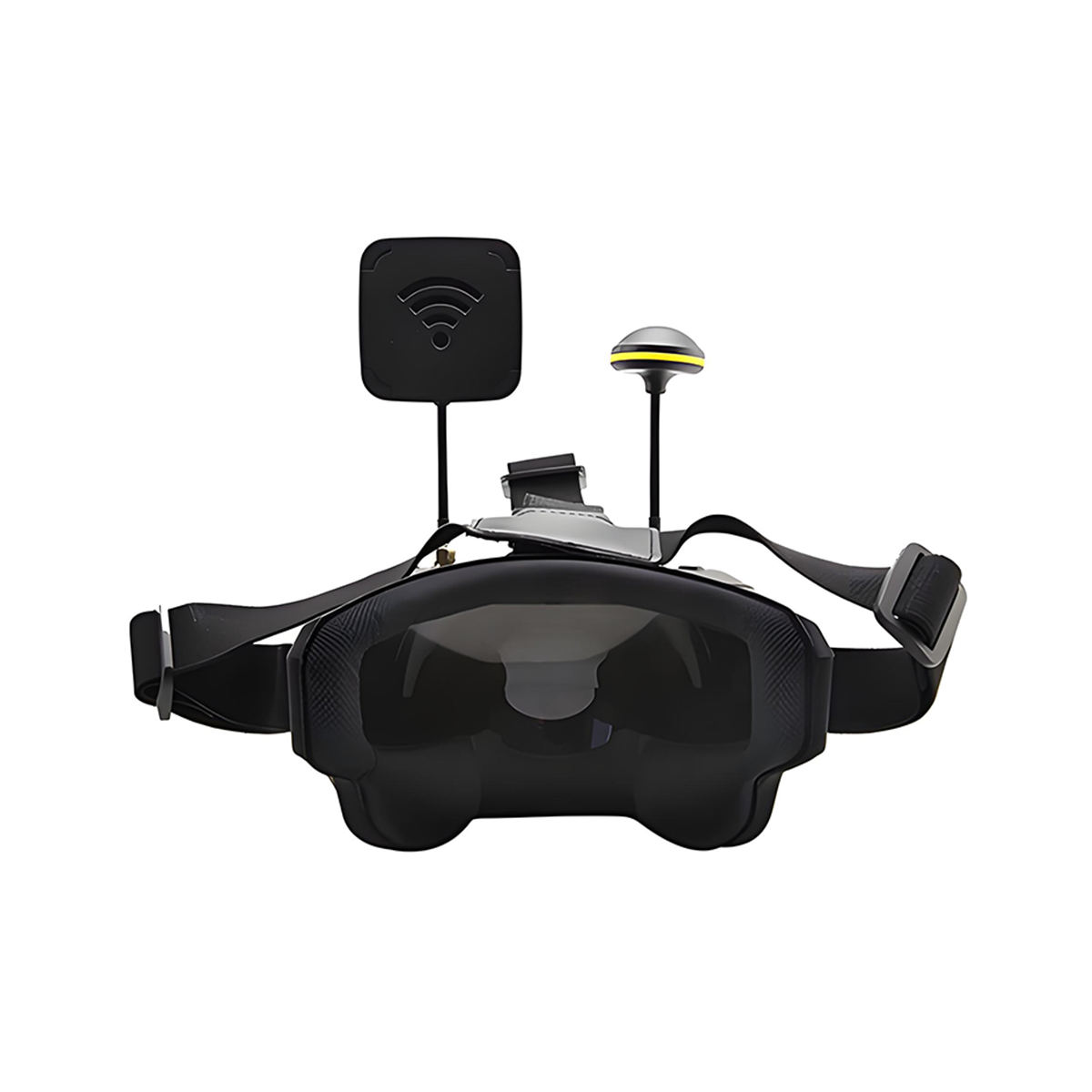

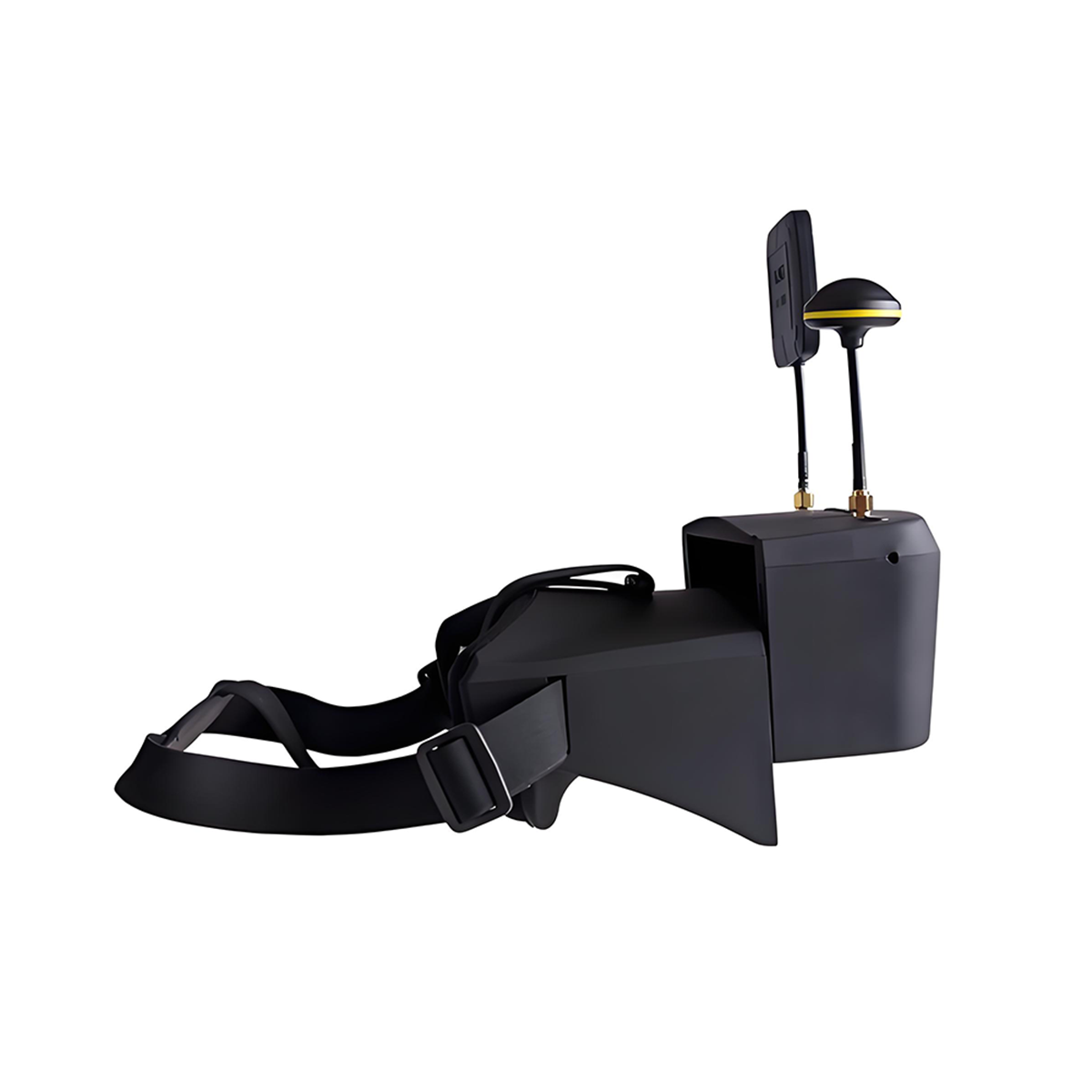

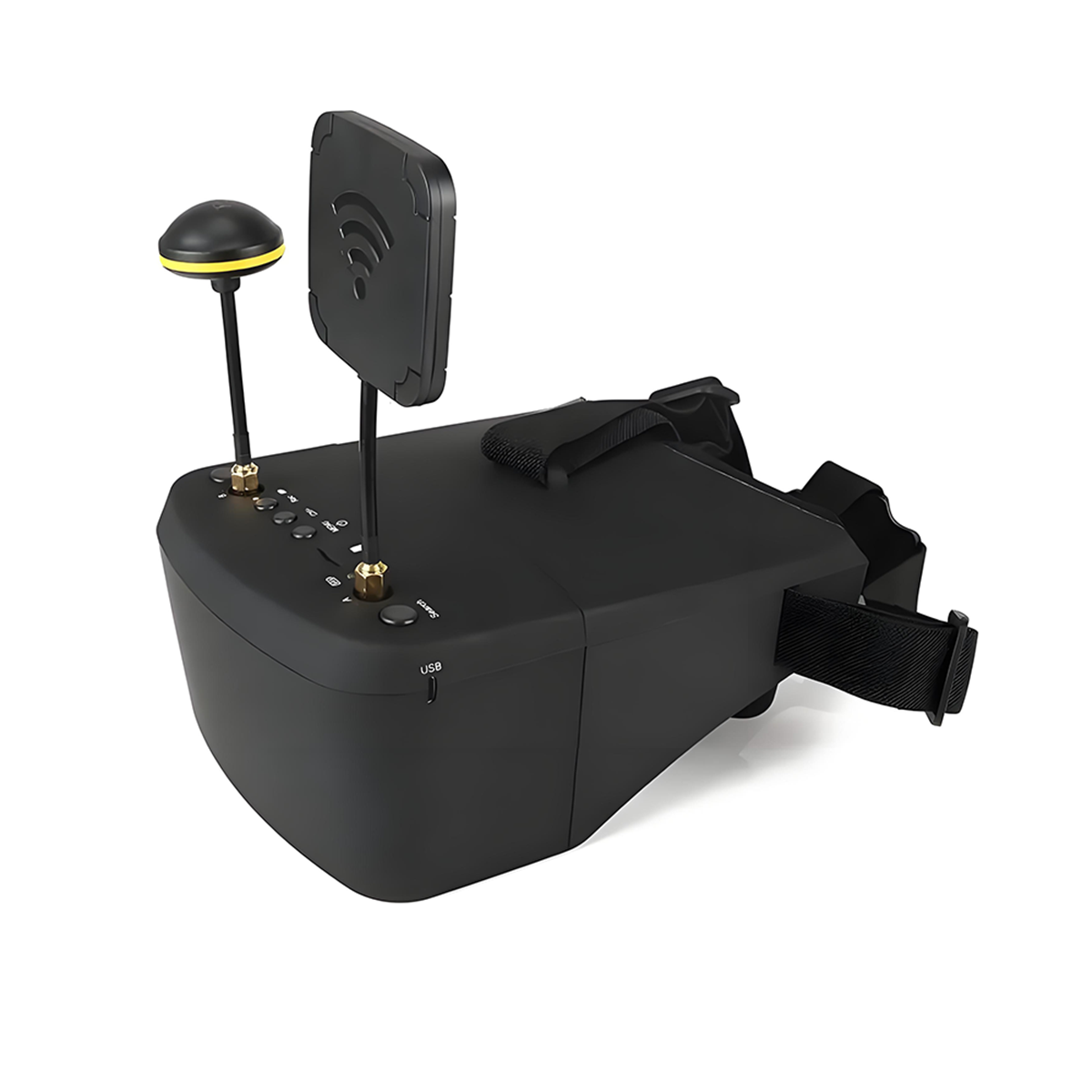

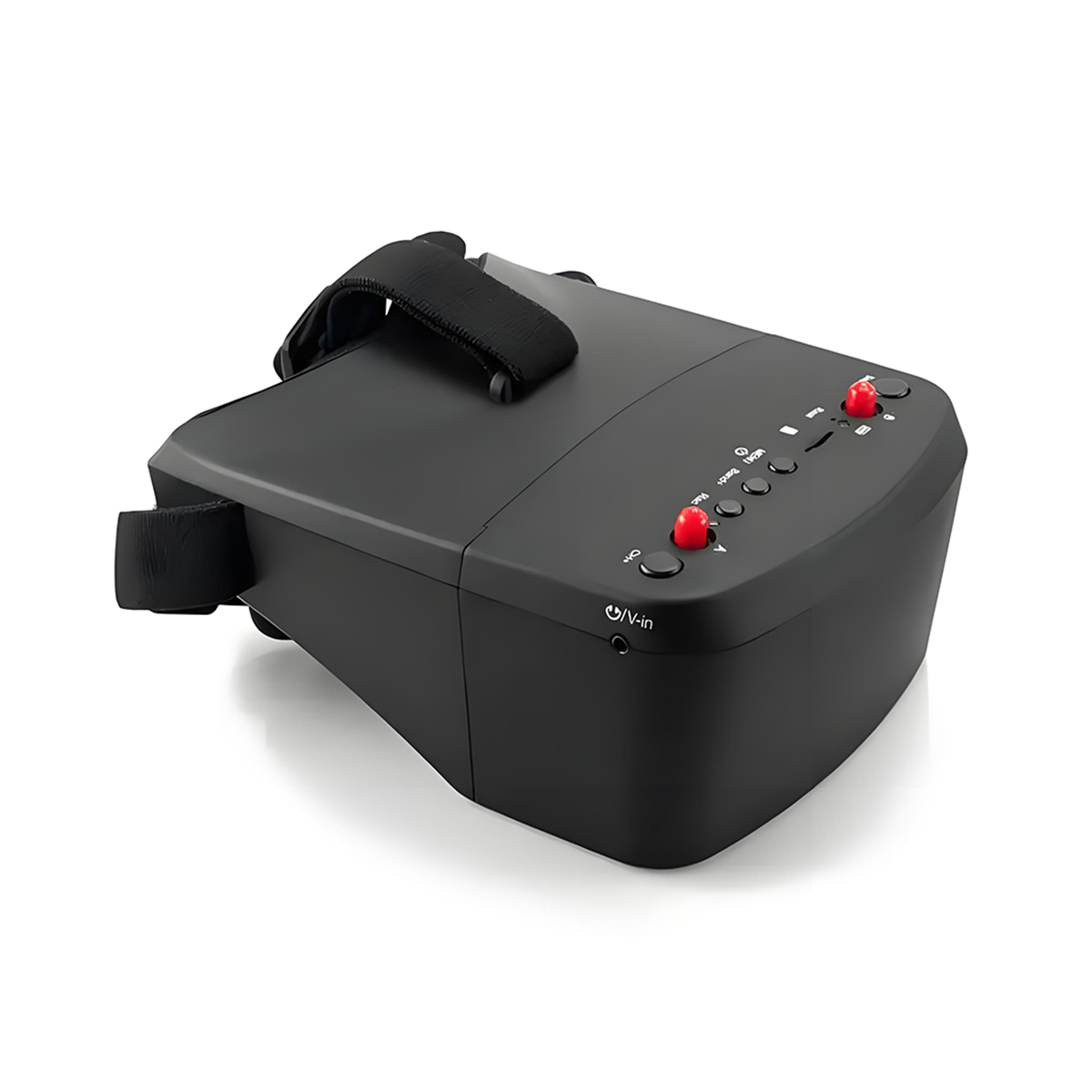

- 1x EV800D Goggles
- 1x Charger
- 1x 5.8G Half-Planar Antenna with SMA Connector
- 1x 5.8G RHCP Cloverleaf Antenna with SMA Connector
- 1x AV Cable
- 1x DC power cable to JST connector
- 1x Instruction manual (English)
- 1x EVA Carrying Case
