Features
- Support for DVR: Allows you to record videos anytime and anywhere, ensuring you capture important moments without hassle.
Low Power Consumption: With a working current as low as 400mAh, this device is optimized for efficiency, greatly improving battery life and reducing the need to frequently recharge. - Auto-Searching: A key search frequency function enables you to quickly and easily find the working frequency you need, streamlining the setup process.
- 5-Inch HD Screen: The device boasts a 16:9, 800×480 dot high brightness LCD HD screen, providing better, clearer, and smoother picture quality for an enhanced viewing experience.
- Built-in Battery: Equipped with a 7.4V 1200mAh high-capacity rechargeable li-ion polymer battery, each full charge offers about 2 hours of working time with the DVR module on, and about 3 hours when the DVR module is off.
- Support for Audio Signal Output: You can connect headphones for a private listening experience.
Support for External Video Signal Input: Allows for versatility in video sources, making it adaptable to various input devices. - Real-time Video Return: Ensures very low time delay, making it suitable for applications requiring immediate feedback.
Specifications
- LCD Screen: 5 inch 800*480 16:9 (Display Ratio)
- Battery: 7.4V/1200mAh
- Battery Charge: DC 12V/1A
- Operating Current: 400mA@3.7V (Normal mode) ;620mA@3.7V (Rcord mode)
- Video Delay: video time-delay less than 20 ms
- AV Jack: External video signals input or internal Audio signal output
- Card Slot: TF-Card Support up to 64G (C10 recommend)
- Dimension: 180mm*140mm*84mm
- Weight: 392g (W/Headband,W/ o Receivers )
- DVR
- REC size: VGA /D1 /HD (selectable)
- REC sound: ON /OFF (selectable)
- REC time: OFF / 3min / 5min / 10min (selectable)
- Frame rate: 30 Frames
- Compress format: MJPEG
- Record file format: AVI

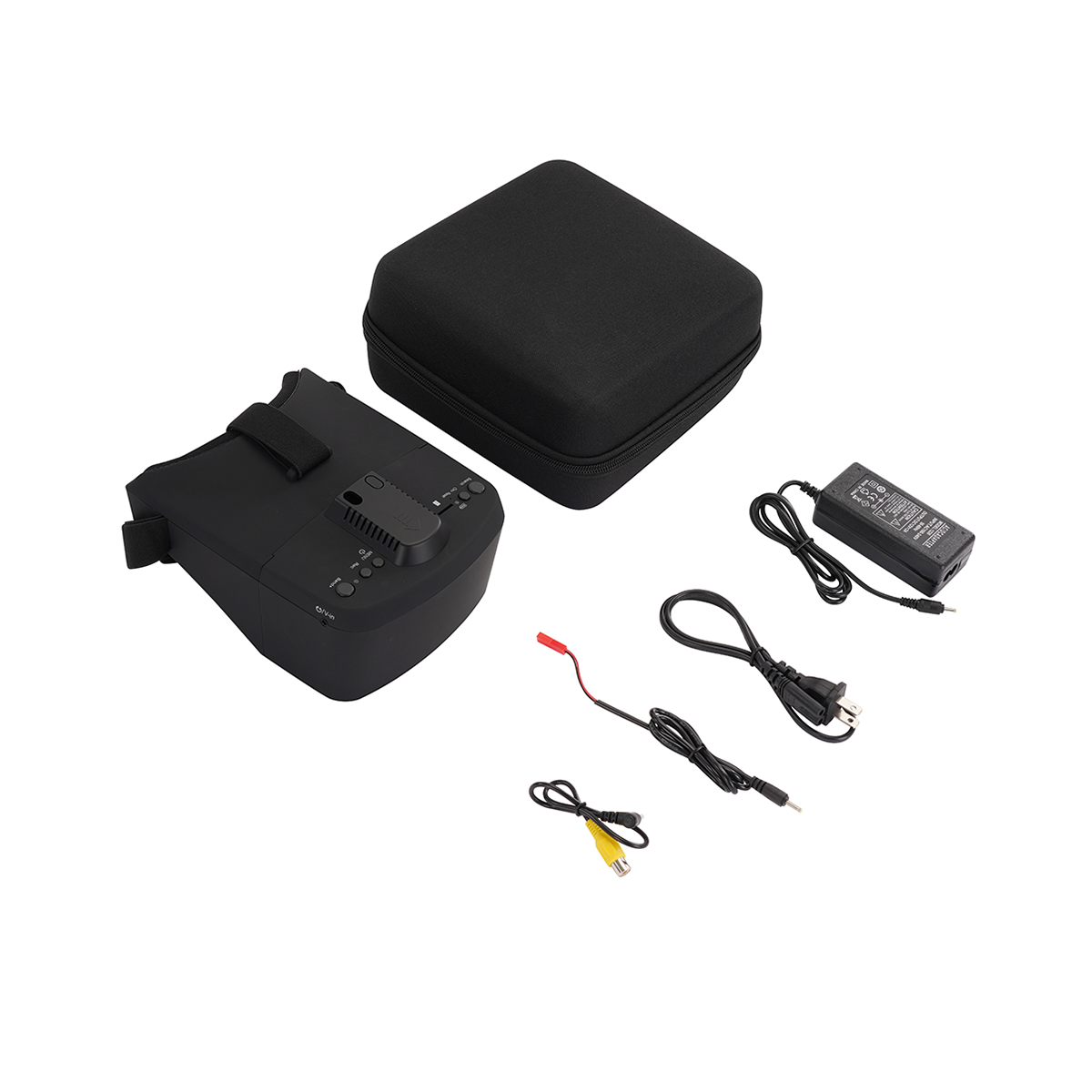

Package Included
- 1 X 800D Pro FPV Goggles
- 1 X FPV Goggles storage bag
- 1 X AC 220V Power Adapter
- 1 X 12V JST to DC charging cable
- 1 X Video input/output cable
