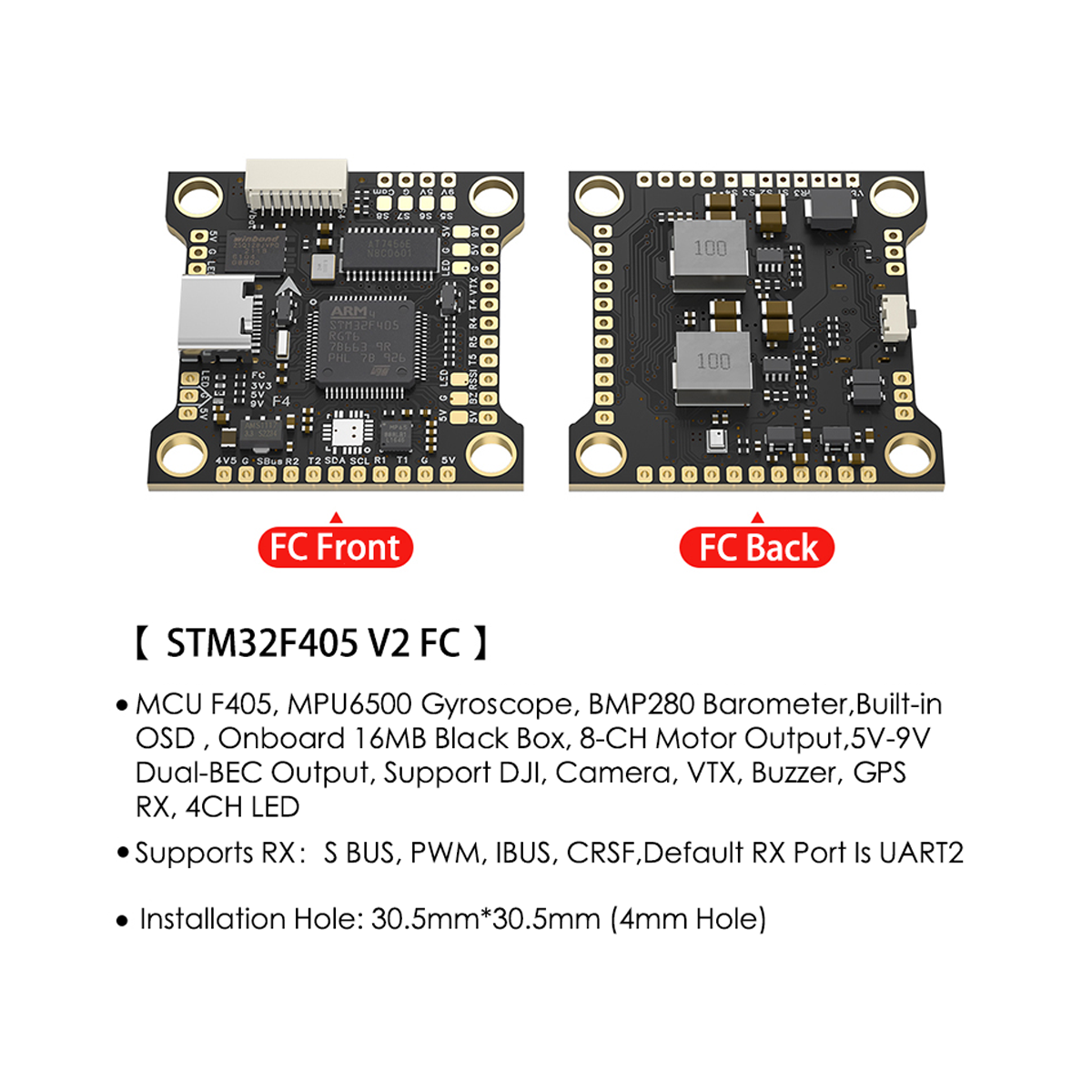

Features
- Onboard barometer, OSD, and 16M black box provide advanced telemetry and flight data recording for accurate tuning and diagnostics.

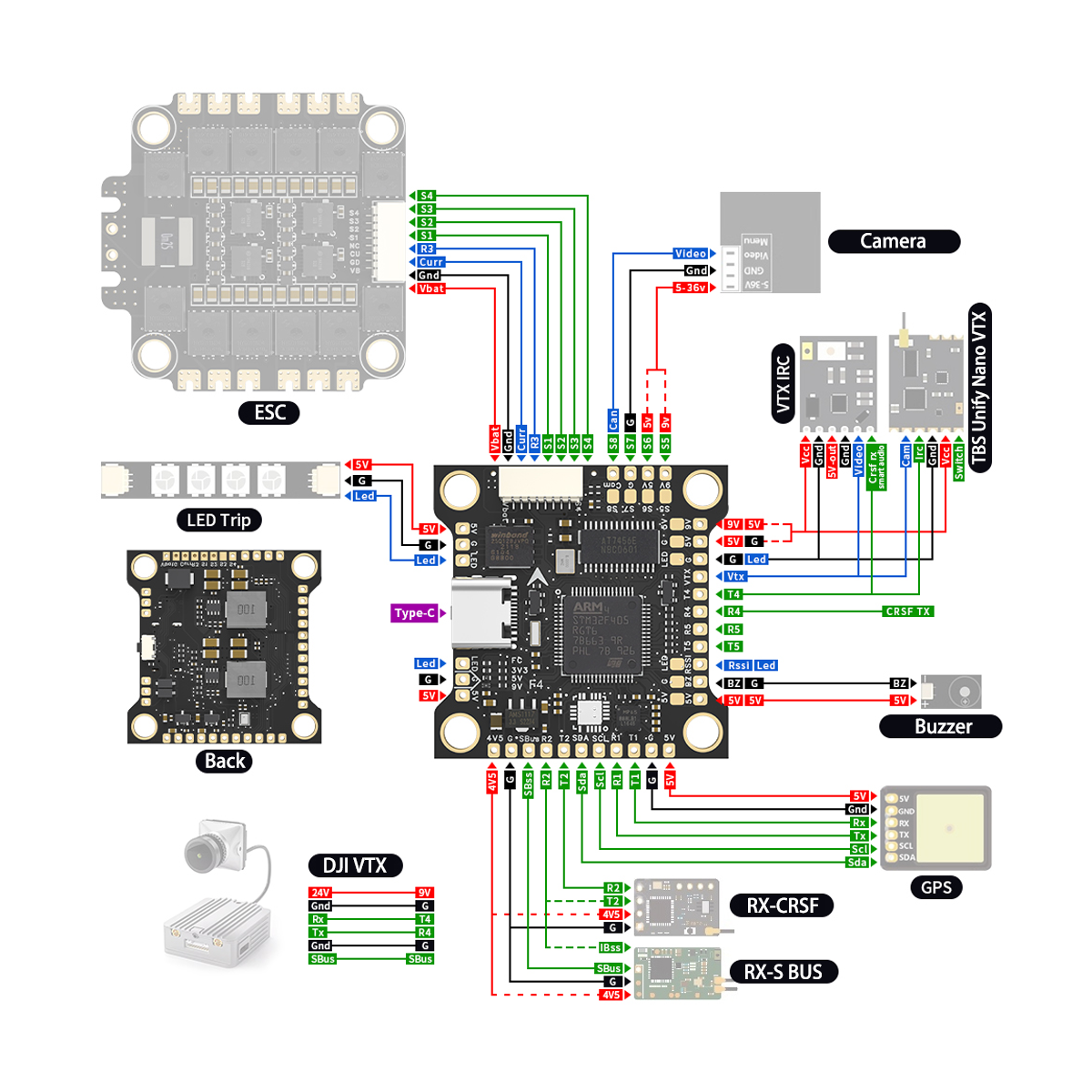

- Features 5 UART ports and supports multiple receiver types, including SBUS, PWM, IBUS, and CRSF (default UART2).
- Flexible Power Output: Supports both 5V/2.5A and 9V/2A BEC outputs, ensuring stable power delivery for various peripherals and components, enhancing system reliability.
- Dual Firmware Support: Compatible with Betaflight AOCODARCF4V2 (MPU6500, 4.5.1) and INV (AOCODARCF4V2, 7.1.2).
- Seamlessly compatible with the DJI Digital FPV System, ensuring a straightforward and hassle-free setup for digital FPV enthusiasts.
- With dimensions of 37x37x8mm and a weight of just 8g, this flight controller fits easily into a wide range of frames.

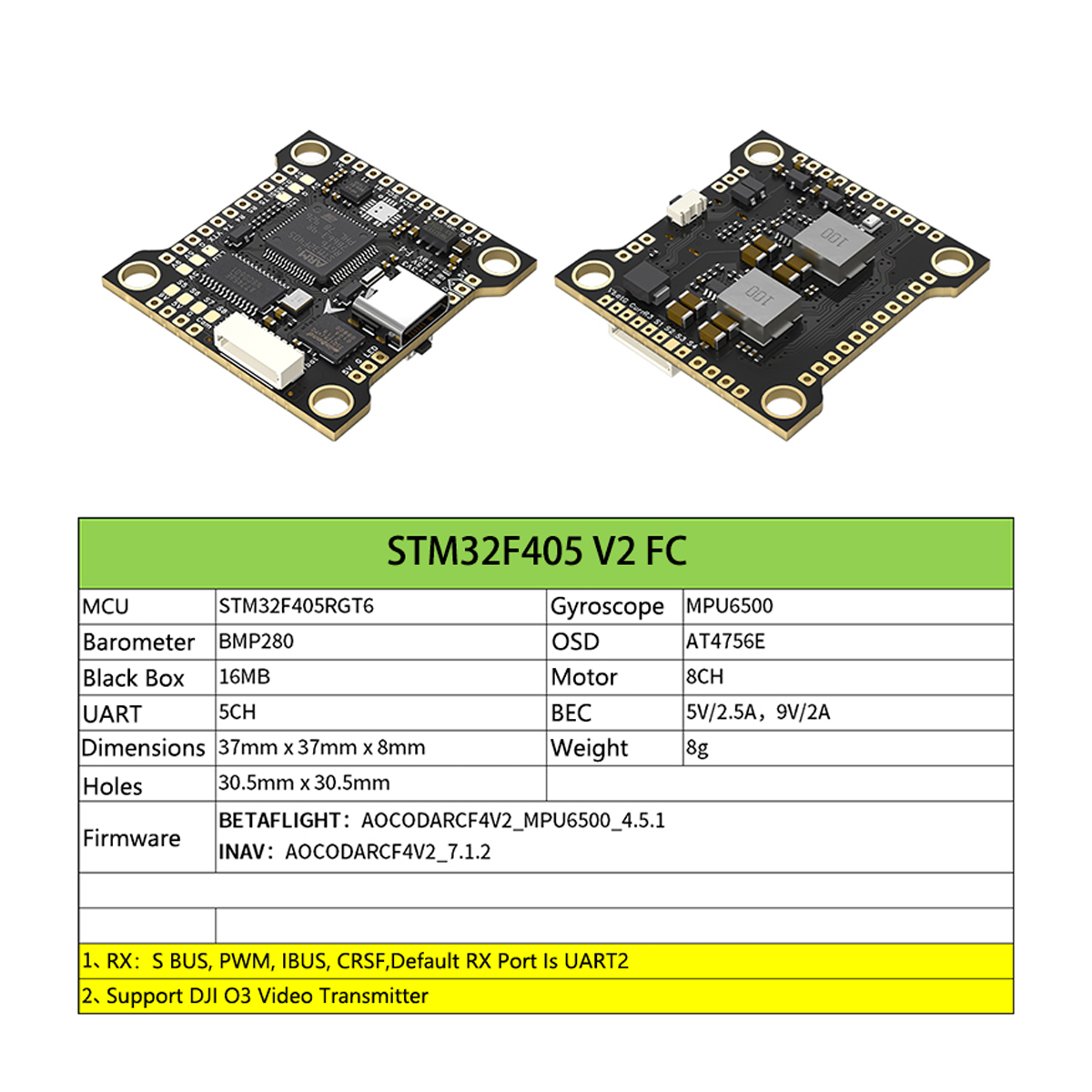

Specification
MCU: STM32F405RGT6
IMU: MPU6500
Barometer: BMP280
OSD: AT4756E
Black Box: 16M
Motor Output: 8CH
UART: 5
BEC Output: 5V/2.5A; 9V/2A
Support RX: SBUS, PWM, IBUS, CRSF (Default UART2)
Firmware: Betaflight AOCODARCF4V2_MPU6500_4.5.1/INV AOCODARCF4V2_7.1.2

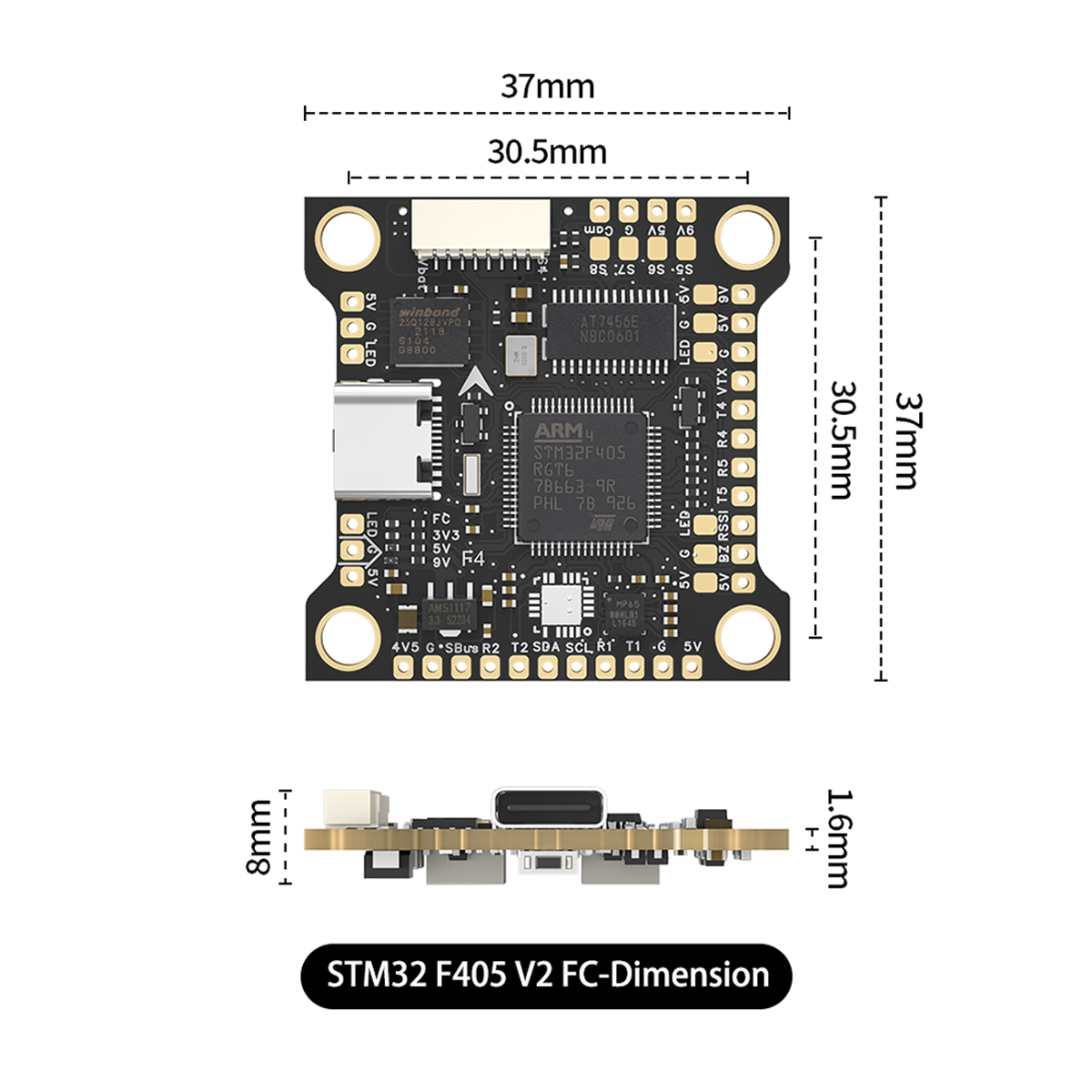

Dimension: 37*37*8mm
Mounting Hole: 30.5*30.5 (4mm hole)
Weight: 8g
