Features
- Onboard barometer, OSD, and 16M black box provide advanced telemetry and flight data recording for accurate tuning and diagnostics.

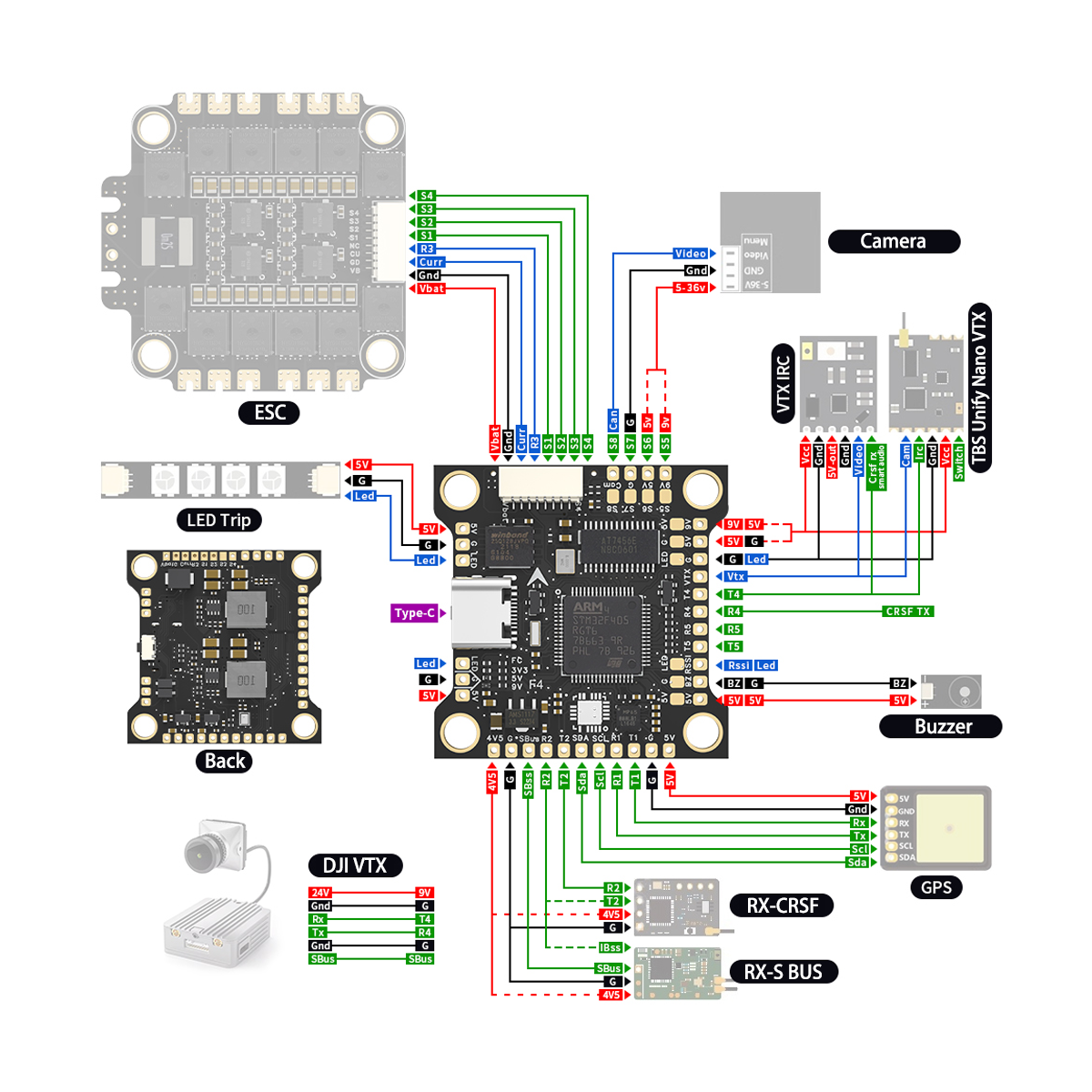

- Features 5 UART ports and supports multiple receiver types, including SBUS, PWM, IBUS, and CRSF (default UART2).
- Flexible Power Output: Supports both 5V/2.5A and 9V/2A BEC outputs, ensuring stable power delivery for various peripherals and components, enhancing system reliability.
- Dual Firmware Support: Compatible with Betaflight AOCODARCF4V2 (MPU6500, 4.5.1) and INV (AOCODARCF4V2, 7.1.2).
- Seamlessly compatible with the DJI Digital FPV System, ensuring a straightforward and hassle-free setup for digital FPV enthusiasts.
- With dimensions of 37x37x8mm and a weight of just 8g, this flight controller fits easily into a wide range of frames.
- A range of 4-in-1 ESC models is available (40A, 45A, 50A, 55A, and 60A), each with different stack specifications to suit various power requirements and drone setups, ensuring optimal performance and customization options.
Specification

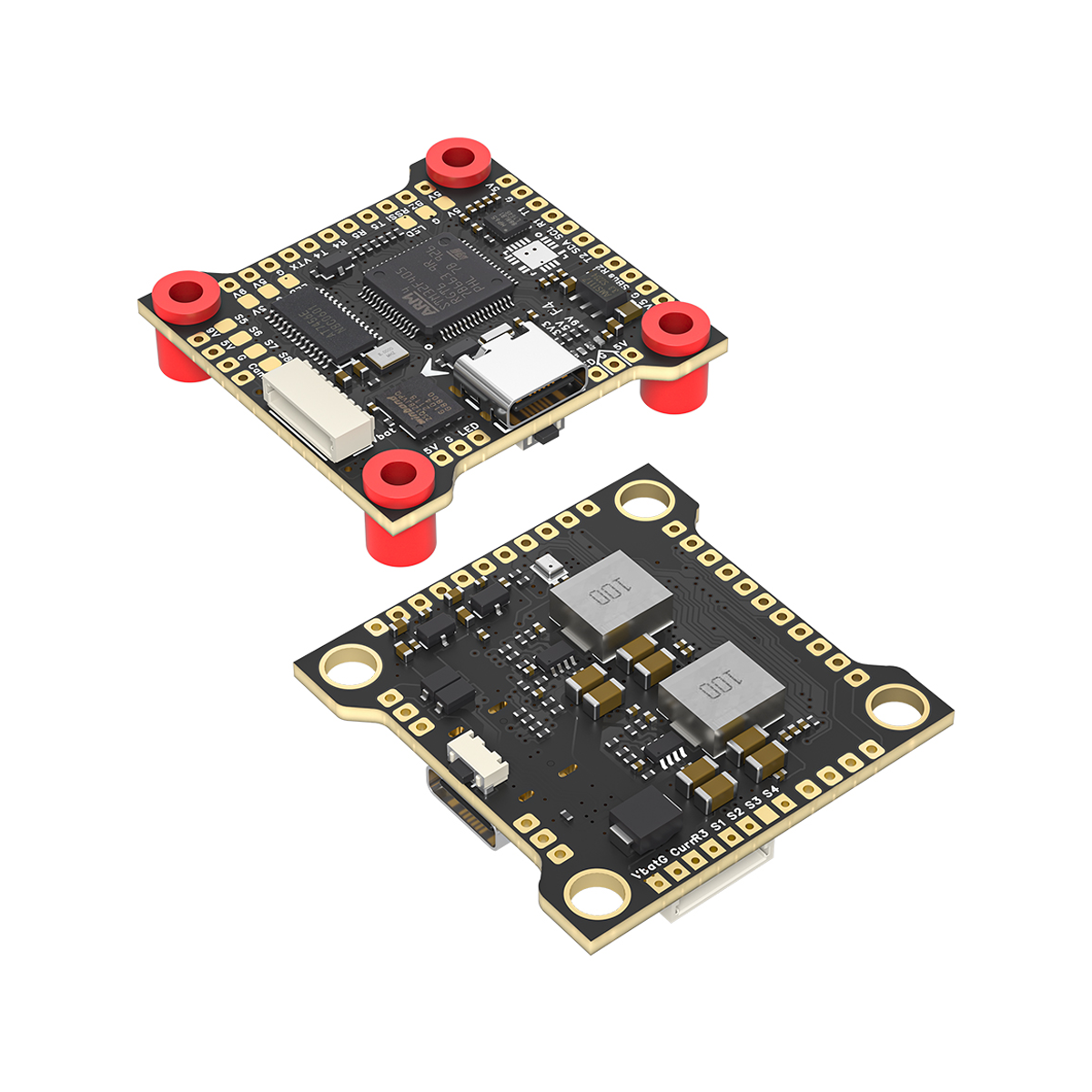

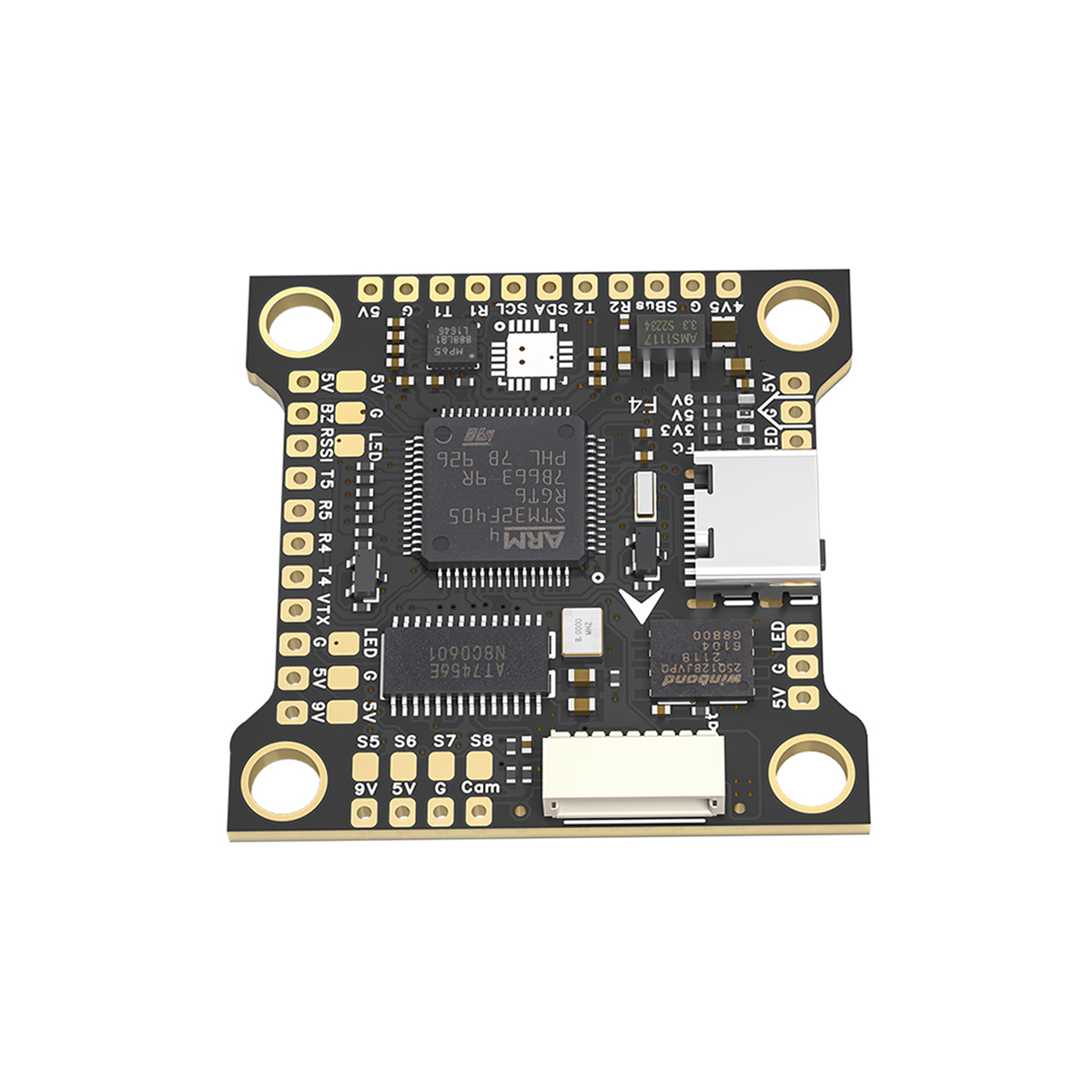

Flight Controller
MCU: STM32F405RGT6
IMU: MPU6500
Barometer: BMP280
OSD: AT4756E
Black Box: 16M
Motor output: 8CH
UART: 5
BEC Output: 5V/2.5A; 9V/2A
Support RX: SBUS, PWM, IBUS, CRSF (Default UART2)
Firmware: Betaflight: AOCODARCF4V2_MPU6500_4.5.1 / INV: AOCODARCF4V2_7.1.2

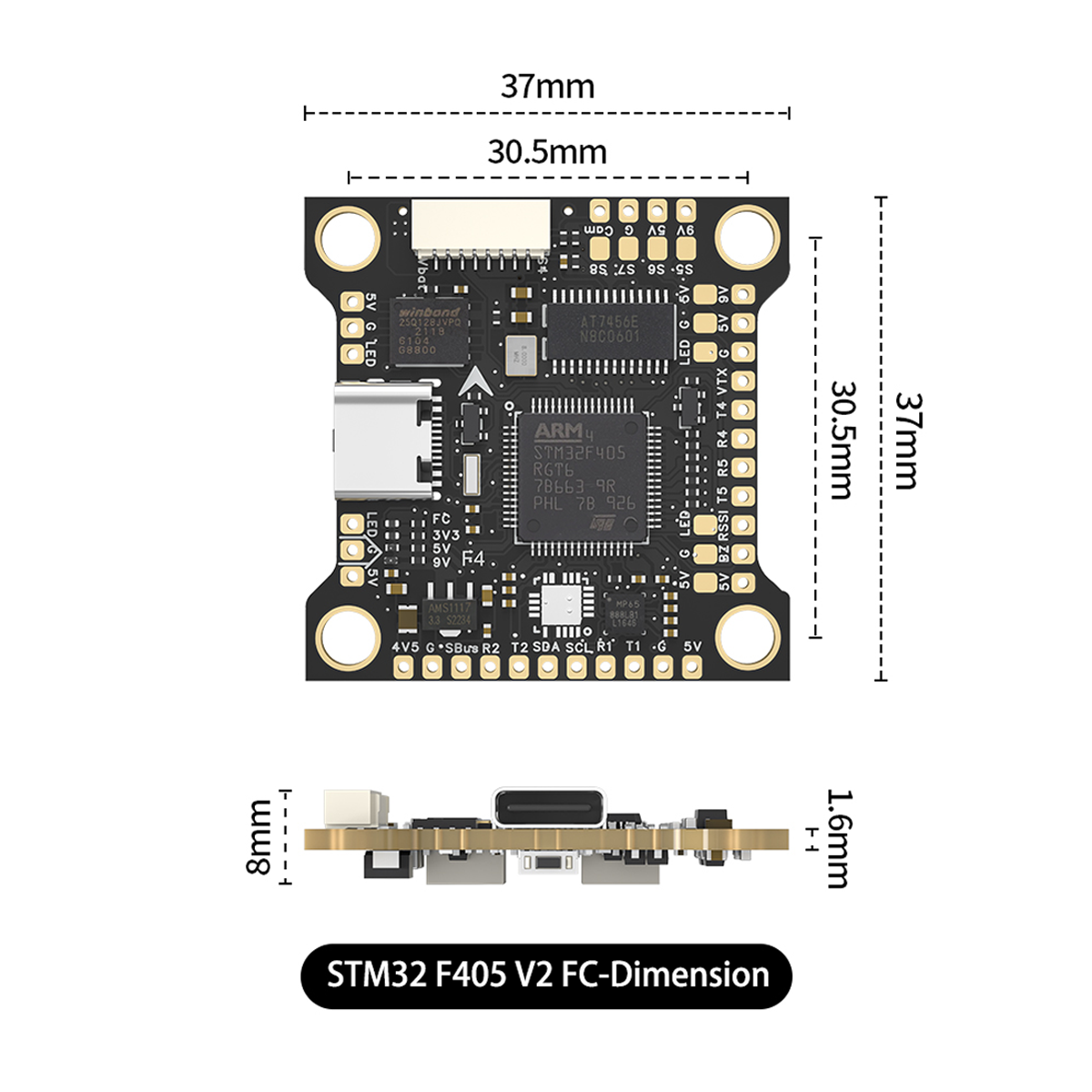

Dimension: 37*37*8mm
Mounting Hole: 30.5*30.5 (4mm hole)
Weight: 8g

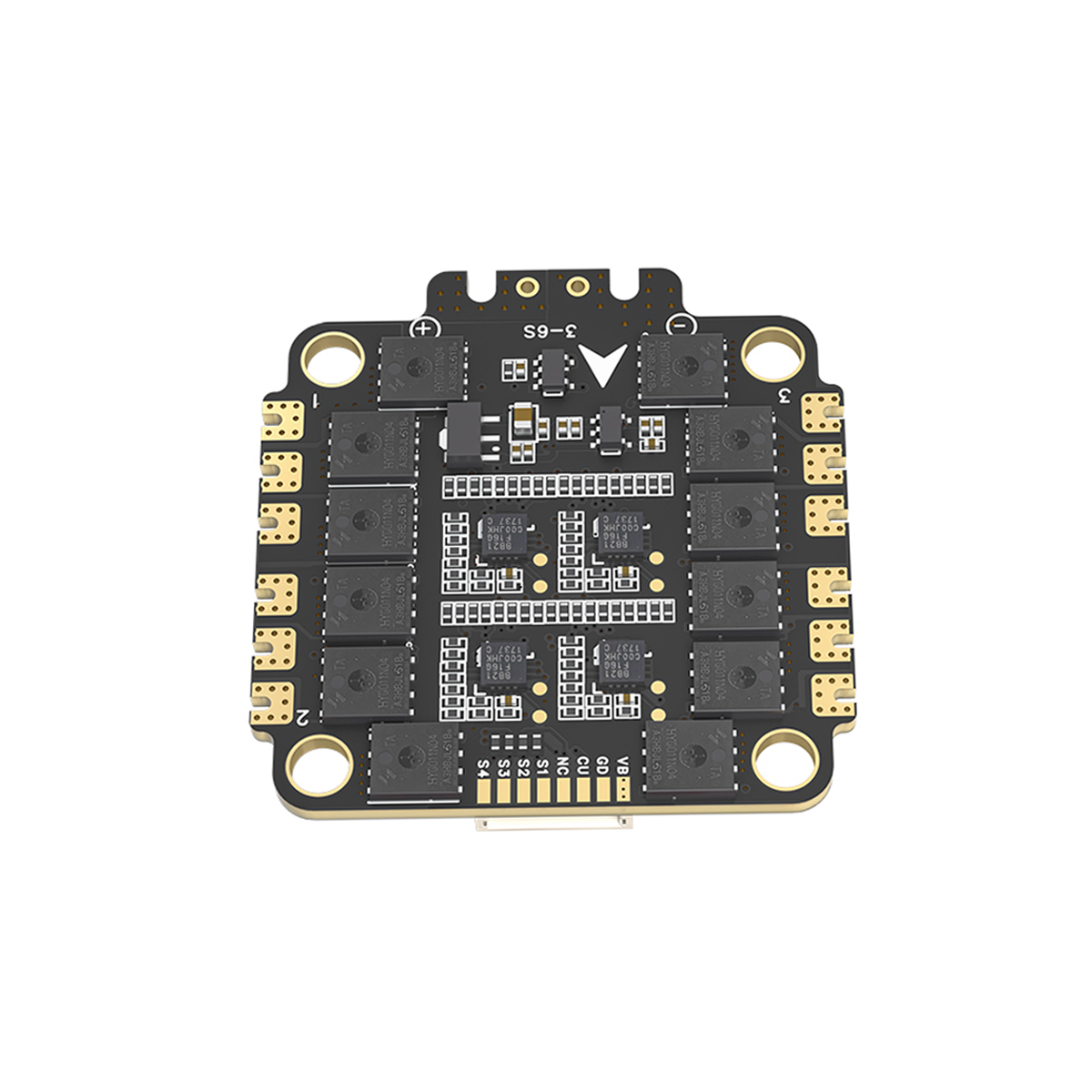

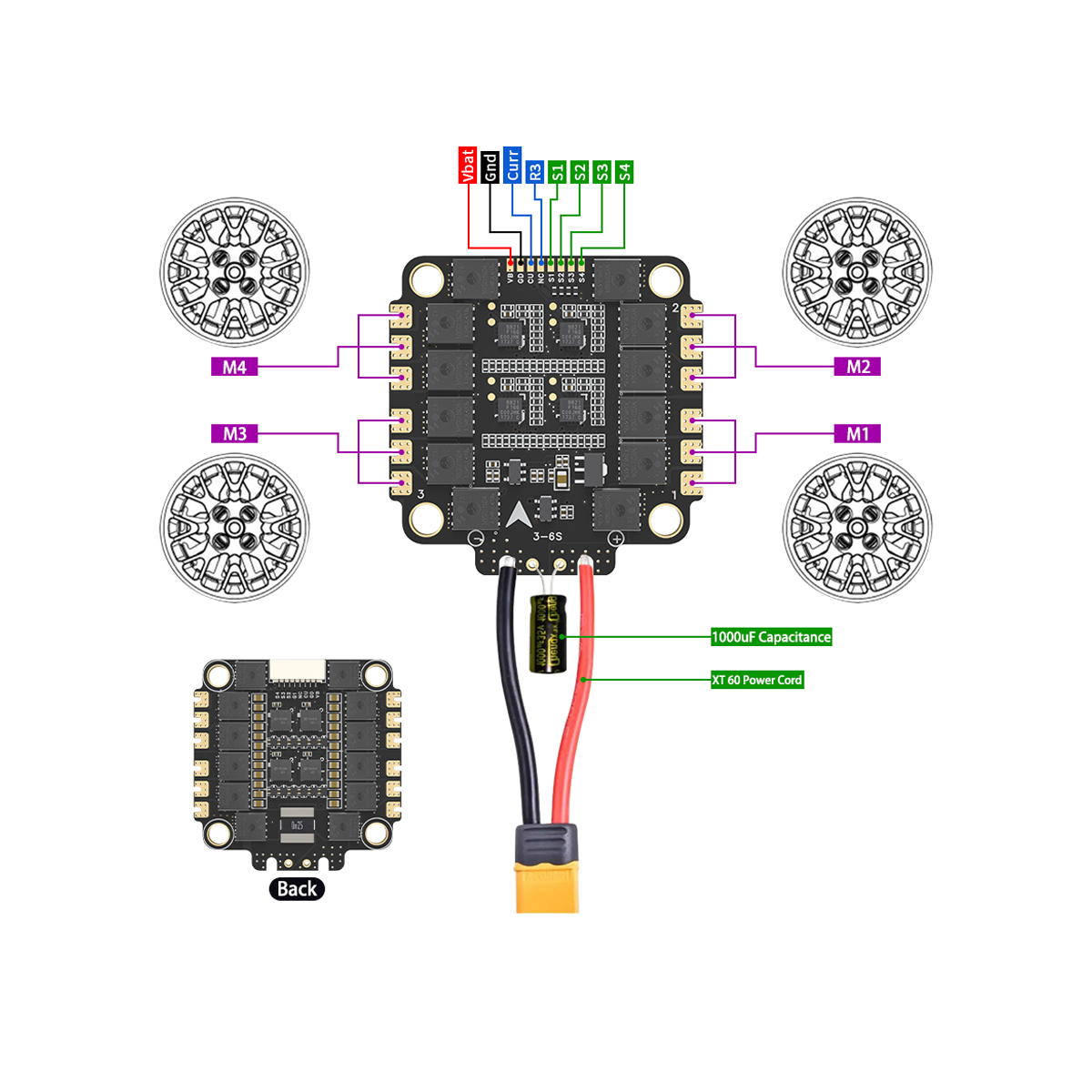

40A 4 in 1 ESC
MCU: EFM8BB21F16G
Firmware: Bluejay H_H_50_48_V0.21.0
Continuous Current: 40A
Peak Current: 45A
Current Sensor: Yes
ESC Protocol: DShot150/DShot300/DShot600/Standard/Multishot/Oneshot42/PWM
Power Input: 3-6S LiPo
Mounting: 30.5 x 30.5mm

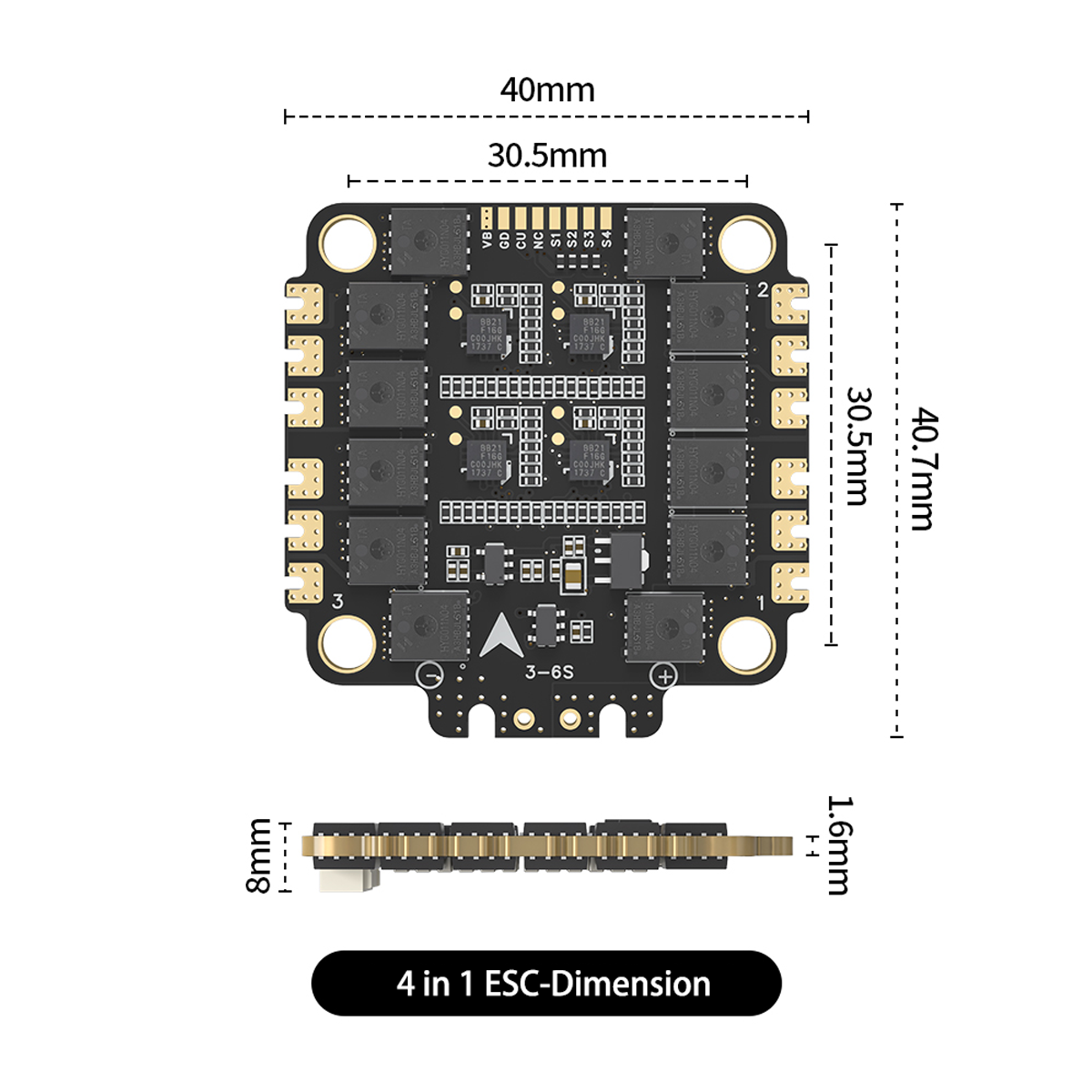

Dimension: 40(L) * 40.7(W) *5.8mm(H)
Weight: 11.9g
45A 4 in 1 ESC
MCU: EFM8BB21F16G
Firmware: Bluejay H_H_50_48_V0.21.0
Continuous Current: 45A
Peak Current: 50A
Current Sensor: Yes
ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM
Power Input: 3-6S LiPo
Mounting: 30.5 x 30.5mm
Dimension: 40(L) * 40.7(W) *5.8mm(H)
Weight: 11.9g
50A 4 in 1 ESC
MCU: EFM8BB21F16G
Firmware: Bluejay H_H_50_48_V0.21.0
Continuous Current: 50A
Peak Current: 55A
Current Sensor: Yes
ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM
Power Input: 3-6S LiPo
Mounting: 30.5 x 30.5mm
Dimension: 40(L) * 40.7(W) *5.8mm(H)
Weight: 11.9g
55A 4 in 1 ESC
MCU: EFM8BB21F16G
Firmware: Bluejay H_H_50_48_V0.21.0
Continuous Current: 55A
Peak Current: 60A
Current Sensor: Yes
ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM
Power Input: 3-6S LiPo
Mounting: 30.5 x 30.5mm
Dimension: 40(L) * 40.7(W) *5.8mm(H)
Weight: 11.9g
60A 4 in 1 ESC
MCU: EFM8BB21F16G
Firmware: Bluejay H_H_50_48_V0.21.0
Continuous Current: 60A
Peak Current: 65A
Current Sensor: Yes
ESC Protocol: DShot150-600/STANDARD/Multishot/Oneshot/PWM
Power Input: 3-6S LiPo
Mounting: 30.5 x 30.5mm
Dimension: 40(L) * 40.7(W) *5.8mm(H)
Weight: 11.9g
